Final Project - Final Result
Hero shots
Slide and Video for final presentation
3D Model + PCB + C Code

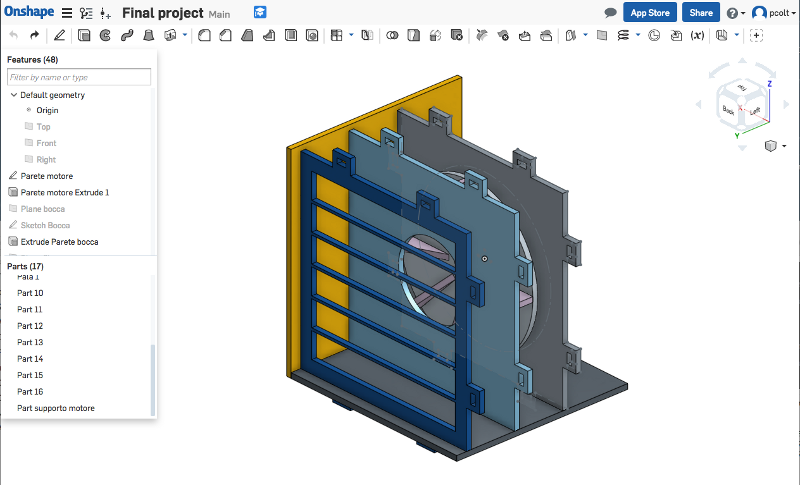

The 3D model of my final project is made with On-Shape and it is shared on-line. You are free to download its parts in order to make it at your Fab Lab.
Processes employed
Impeller part:
Designed parametrically with OnShape
Processed with laser machine
Assembled with bolts
Motor system:
The support that fixs the motor to its frame is designed parametrically with OnShape
The support have been processed with 3D printing
Frames part:
Designed with OnShape
Processed with laser cutting machine
Case system:
Designed with OnShape with only press-fit joints
Processed with laser machine
Carbon filter part:
It is hand-cutted and located on its frame

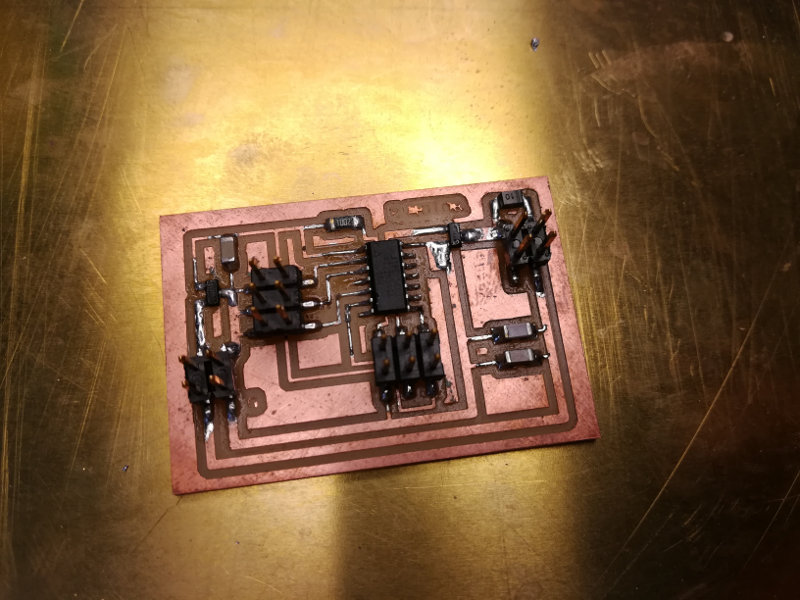

Electronic board:
Designed with Eagle
Processed with milling machine and hand-soldered with its components
Program to turn the motor at three different speeds done in C language
Bill of materials and cost
- N.1 9V DC motor - 1.5 euro
- N.2 Sheets of playwood 600x300mm - 6 euro
- N.6 Bolts M3 - 1 euro
- N.1 Set of Carbon filters 150x150mm - 5 euro
- N.1 ATTiny44 - 1.23 euro
- N.1 Capacitor 0.1 microF - 0.12 euro
- N.1 Capacitor 1 microF - 0.07 euro
- N.1 Capacitor 10 microF - 0.18 euro
- N.1 Resistor 10K ohms - 0.01 euro
- N.1 Voltage rulator 5V - 0.32 euro
- N.1 Transistor mosfet N-ch - 0.26 euro
- N.1 Diode - 0.2 euro
- N.2 Headers 4 positions - 1.22 euro
- N.2 Headers 6 positions - 1.2 euro
Total cost: 18.31 euro
License
My final project has a Creative Commons - Attribution License. This type of license allows a person to use my work, or any derivatives based on my work, only if he give me credit. Click here for the full version.
