Setup Sheet for Program 1001

Job Description:

ball finish 1/8

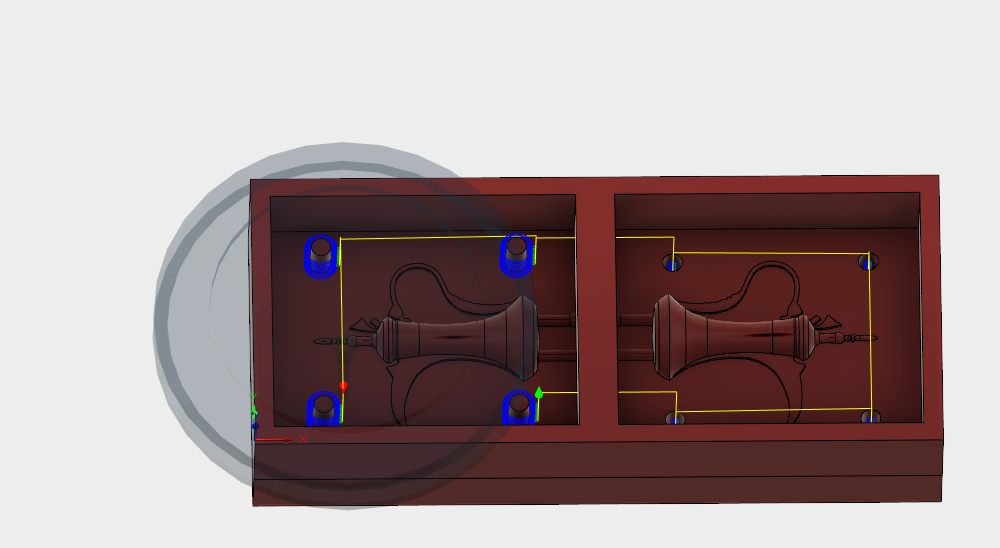

Document Path:

dirhamdella v24

Setup

WCS

: #0

Stock

:

DX: 176mm

DY: 76mm

DZ: 39mm

Part

:

DX: 176mm

DY: 76mm

DZ: 35mm

Stock Lower in WCS #0

:

X: 0mm

Y: 0mm

Z: -39mm

Stock Upper in WCS #0

:

X: 176mm

Y: 76mm

Z: 0mm

Total

Number Of Operations:

2

Number Of Tools:

1

Tools:

T3

Maximum Z:

15mm

Minimum Z:

-22mm

Maximum Feedrate:

1000.001mm/min

Maximum Spindle Speed:

8500rpm

Cutting Distance:

9412.27mm

Rapid Distance:

3548.44mm

Estimated Cycle Time:

10m:43s

Operation 1/2

Description:

Contour2

Strategy:

Contour

WCS:

#0

Tolerance:

0.01mm

Stock to Leave:

0mm

Maximum stepdown:

0.5mm

Maximum Z:

15mm

Minimum Z:

-22mm

Maximum Spindle Speed:

8500rpm

Maximum Feedrate:

1000.001mm/min

Cutting Distance:

5552.69mm

Rapid Distance:

1182.17mm

Estimated Cycle Time:

6m:8s

(57.2%)

Coolant:

Off

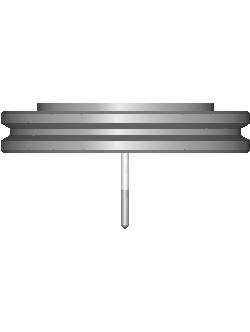

T3 D3 L3

Type:

ball end mill

Diameter:

3.17mm

Corner Radius:

1.59mm

Length:

29.97mm

Flutes:

2

Holder:

CT50 - Blank1

Operation 2/2

Description:

Parallel1

Strategy:

Parallel

WCS:

#0

Tolerance:

0.01mm

Stock to Leave:

0mm

Maximum stepover:

1.59mm

Maximum Z:

15mm

Minimum Z:

-22mm

Maximum Spindle Speed:

8500rpm

Maximum Feedrate:

1000.001mm/min

Cutting Distance:

3859.59mm

Rapid Distance:

2366.28mm

Estimated Cycle Time:

4m:20s

(40.4%)

Coolant:

Off

T3 D3 L3

Type:

ball end mill

Diameter:

3.17mm

Corner Radius:

1.59mm

Length:

29.97mm

Flutes:

2

Holder:

CT50 - Blank1
