Machine Design - Singapore
Group assignment
Design a machine (mechanism+automation), including the end effector
Build the passive parts and operate it manually
document the group project and your individual contribution
Design a machine (mechanism+automation), including the end effector
Build the passive parts and operate it manually
document the group project and your individual contribution
Our Group

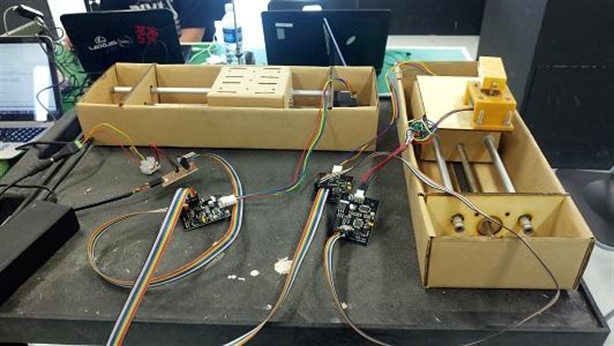

For this week’s assignment, we have form a team to design and build a 3 axis gantry type CNC pen plotter, the members of the group include:
Teo Cher Kok
Hong Guan Soh
Foo Tian Seih
Louis Goh Chong Hao
Phay Ngiap Peng Kenny
For this week’s assignment, we have form a team to design and build a 3 axis gantry type CNC pen plotter, the members of the group include:
Teo Cher Kok
Hong Guan Soh
Foo Tian Seih
Louis Goh Chong Hao
Phay Ngiap Peng Kenny
My Contribution

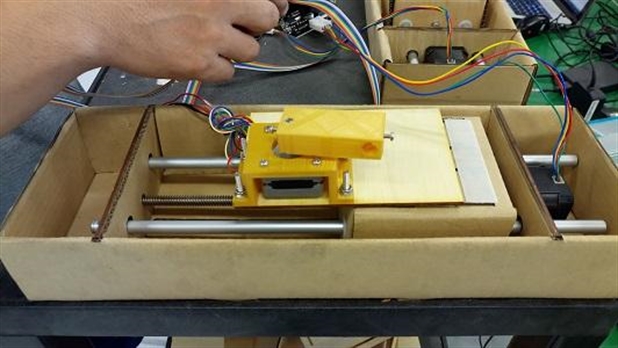

Z-axis hardware integration
Z-axis hardware integration
For machine design assignment, my contribution is in Integrating the z-xis into the plotter.

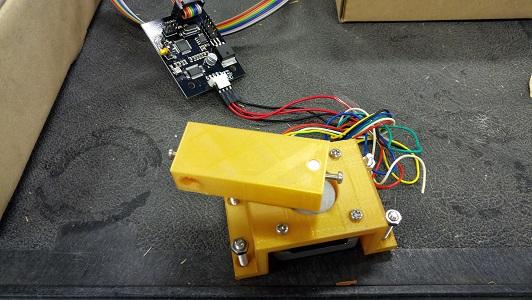

First the wire pinout of the small stepper is identified and connected to a gestalt node.
First the wire pinout of the small stepper is identified and connected to a gestalt node.
Z-axis Software integration
Using the Python vertual machine file fab2017.py, the following modification was made to add a z axis

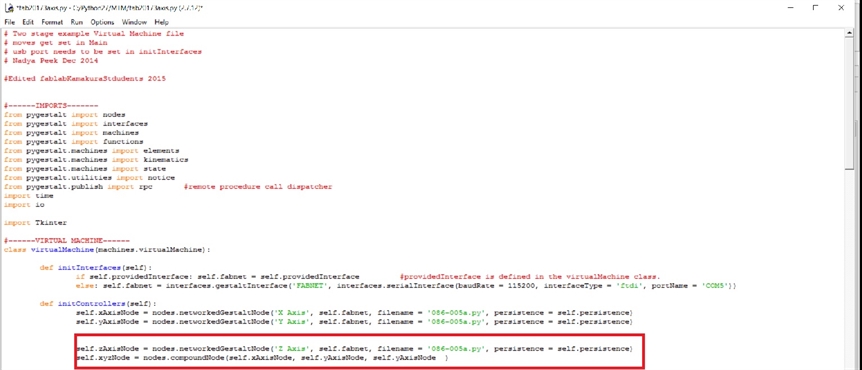

Under definition initiation row:
def initControllers(self):
self.zAxisNode = nodes.networkedGestaltNode('Z Axis', self.fabnet, filename = '086-005a.py', persistence = self.persistence)
self.xyzNode = nodes.compoundNode(self.xAxisNode, self.yAxisNode, self.yAxisNode )
This will tell the virtual machine to expect a z-axis during initiation
Under definition initiation row:
def initControllers(self):
self.zAxisNode = nodes.networkedGestaltNode('Z Axis', self.fabnet, filename = '086-005a.py', persistence = self.persistence)
self.xyzNode = nodes.compoundNode(self.xAxisNode, self.yAxisNode, self.yAxisNode )
This will tell the virtual machine to expect a z-axis during initiation

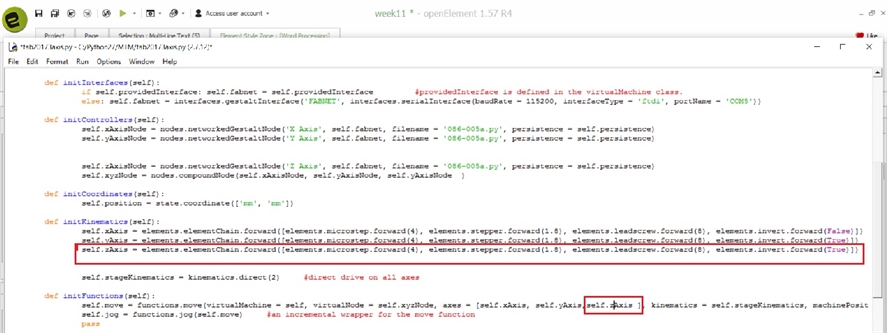

Next add z-axis to the kinematics initiation and function rows:
def initKinematics(self):
self.zAxis = elements.elementChain.forward([elements.microstep.forward(4), elements.stepper.forward(1.8), elements.leadscrew.forward(8), elements.invert.forward(True)])
def initFunctions(self):
self.move = functions.move(virtualMachine = self, virtualNode = self.xyzNode, axes = [self.xAxis, self.yAxis,self.zAxis ], kinematics = self.stageKinematics, machinePosition = self.position,planner = 'null')
def initKinematics(self):
self.zAxis = elements.elementChain.forward([elements.microstep.forward(4), elements.stepper.forward(1.8), elements.leadscrew.forward(8), elements.invert.forward(True)])
def initFunctions(self):
self.move = functions.move(virtualMachine = self, virtualNode = self.xyzNode, axes = [self.xAxis, self.yAxis,self.zAxis ], kinematics = self.stageKinematics, machinePosition = self.position,planner = 'null')

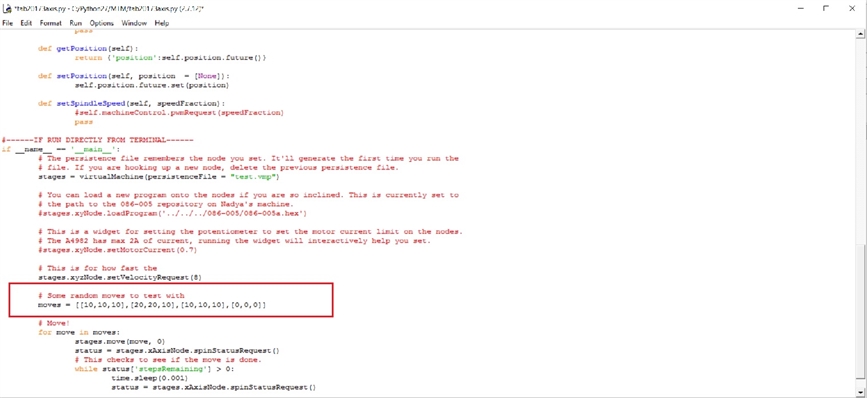

This command will move the stepper motor
moves = [[10,10,10],[20,20,10],[10,10,10],[0,0,0]]
moves = [[10,10,10],[20,20,10],[10,10,10],[0,0,0]]
The follwing move commands will drawing a square
moves = [[0,0,10],[0,0,0],[0,10,0],[10,10,0],[10,0,0],[0,0,0],[0,0,10]]
moves = [[0,0,10],[0,0,0],[0,10,0],[10,10,0],[10,0,0],[0,0,0],[0,0,10]]
