Hello Serial Bus!
Contents
- Making the 'Hello serial bus' board
- Programming board
- HC-12 with Arduino
Making the 'Hello serial bus' board

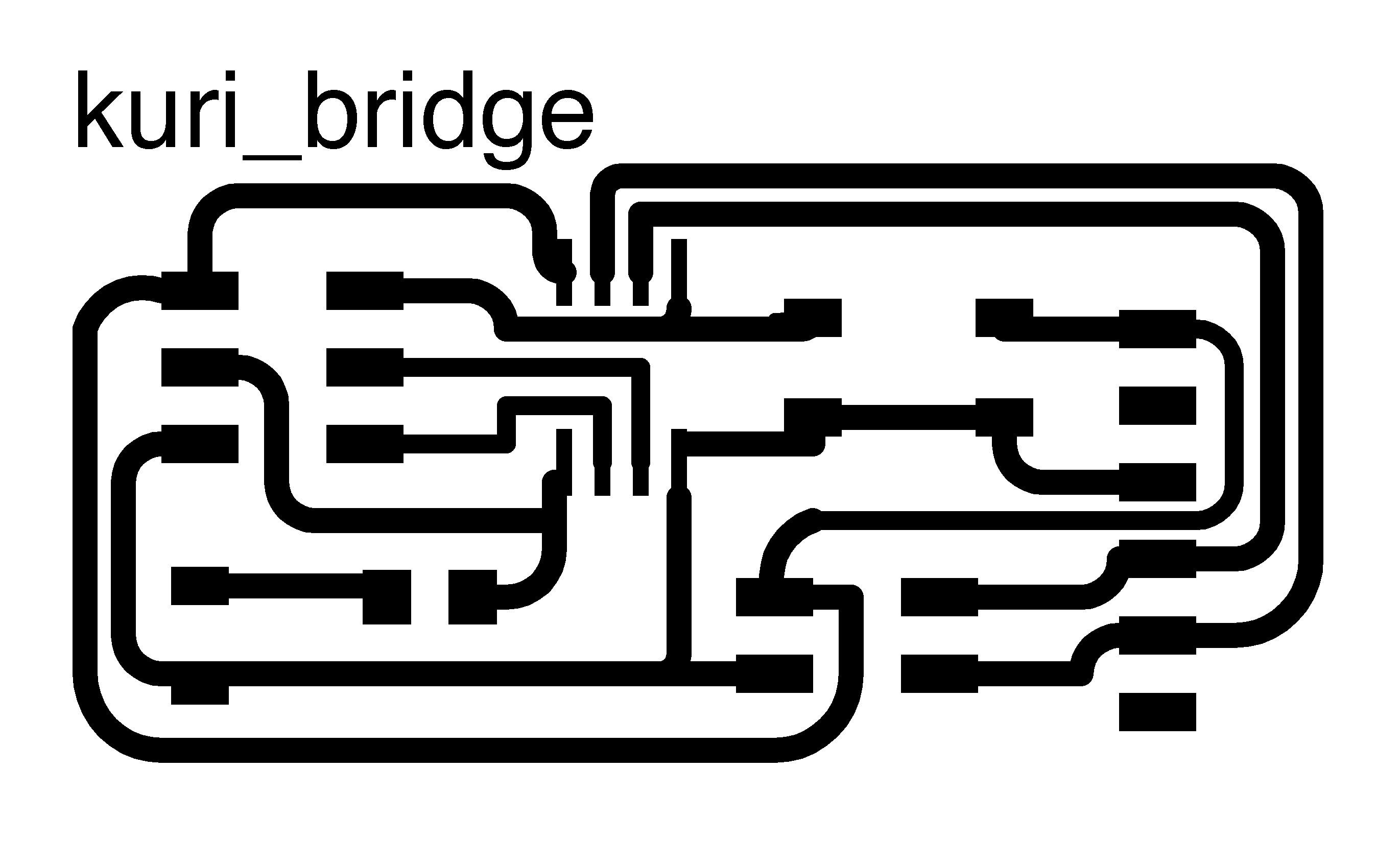

One bridge and two nodes.
Download files:

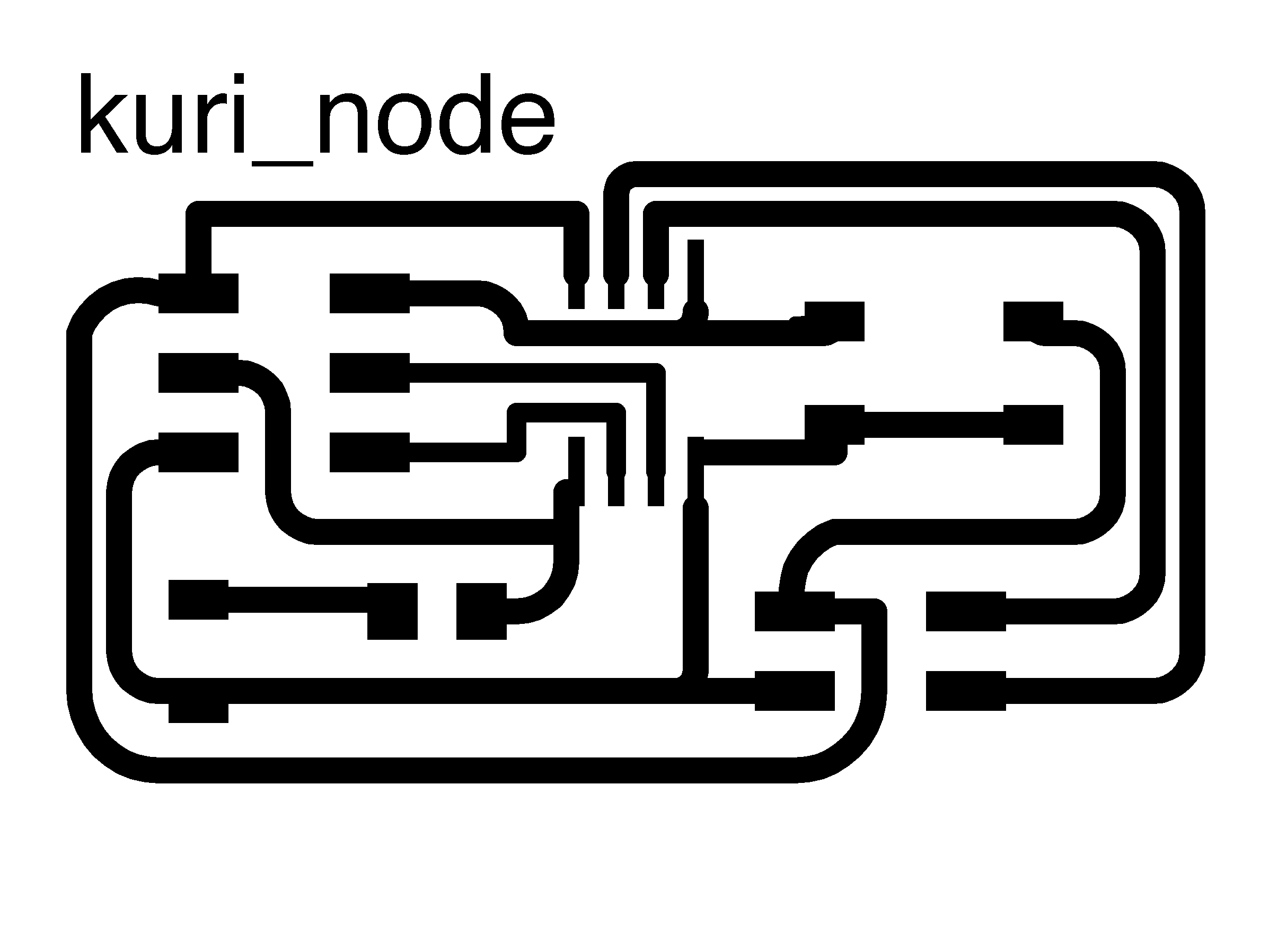

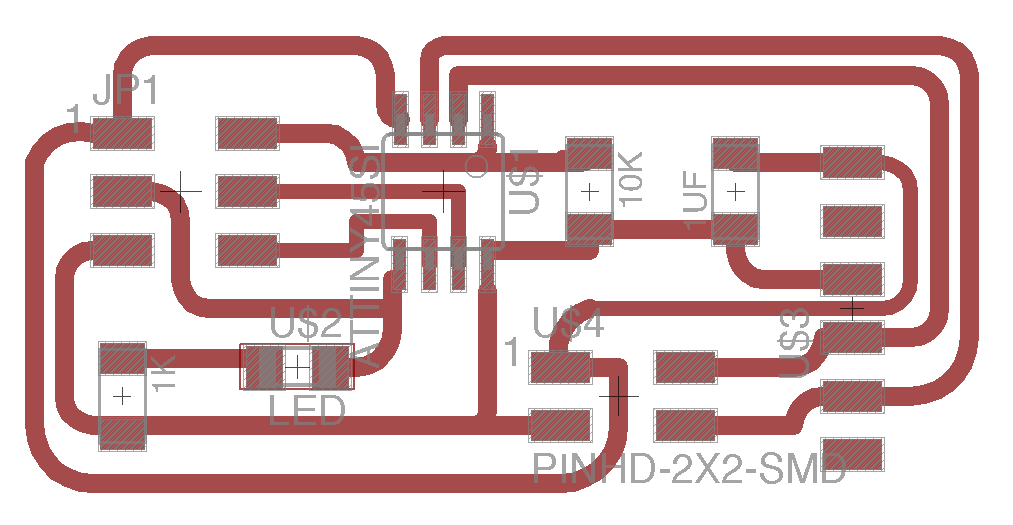

bridge trace file,
bridge outline file,
bridge.brd file,
bridge.sch file
Download files:

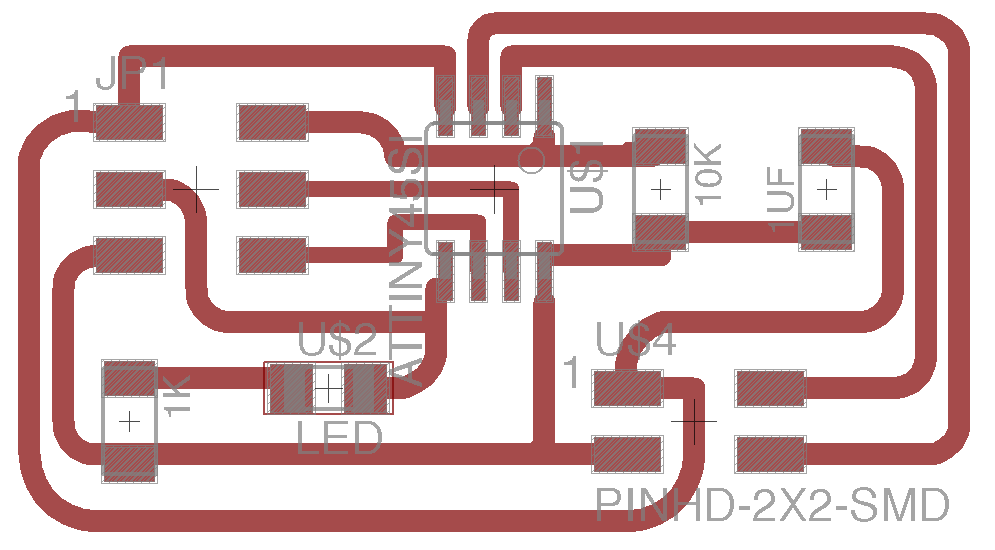

node trace file,
node outline file,
node.brd file,
node.sch file

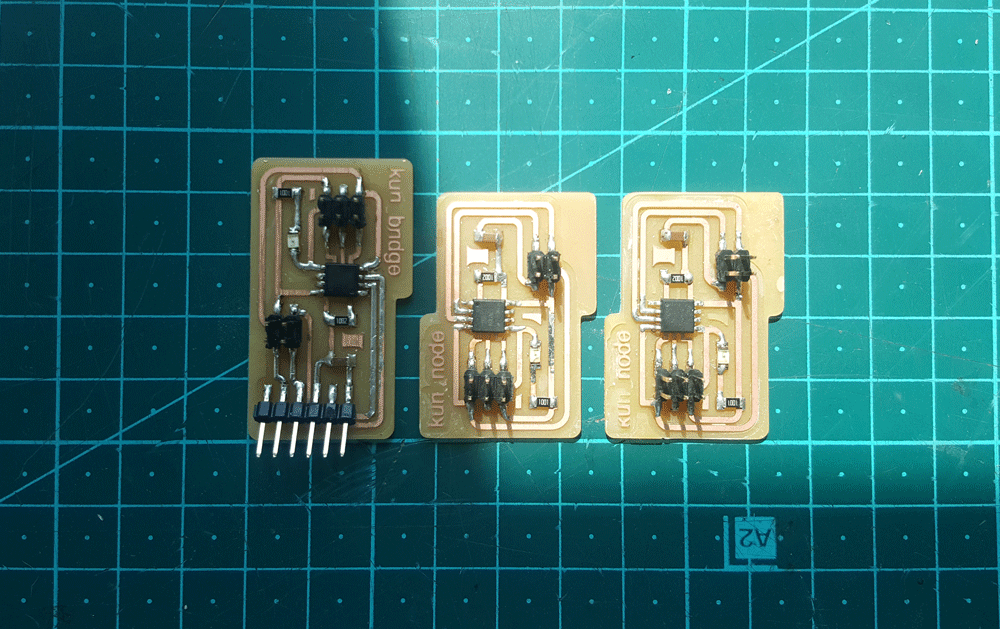

After fabmodule, roland cnc, and solder.
Programming board
Programmed my boards individually. Today, I made all the rookies mistake.

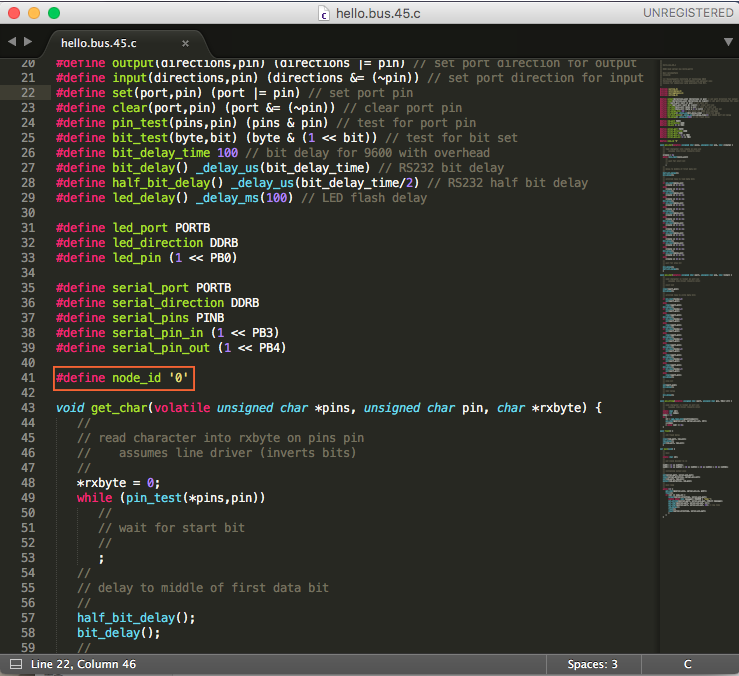

Change #define node_id '0' to '1' and '2'. Give the bridge and nodes address.

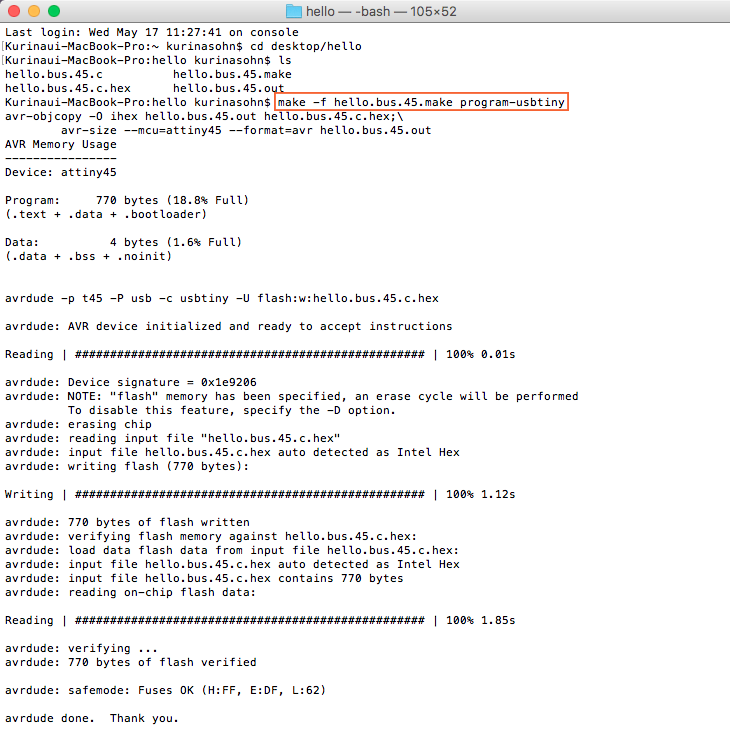

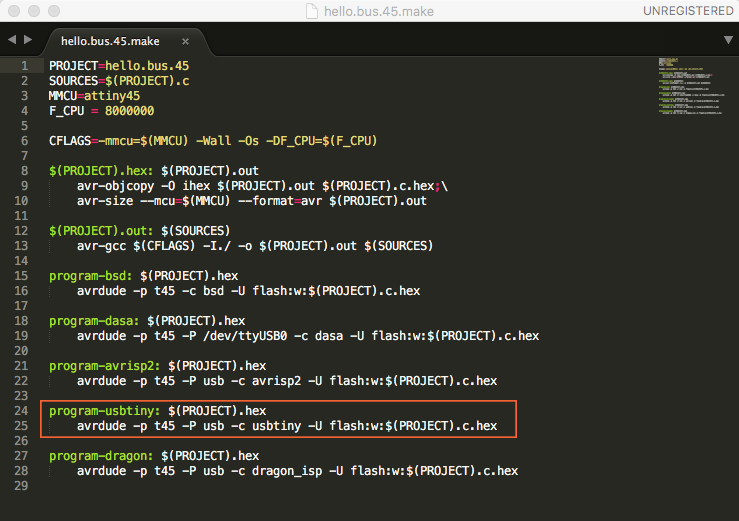

Make file: make -f hello.bus.45.make program-usbtiny

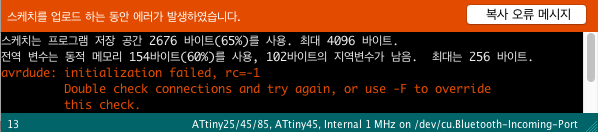

Error: I thought this was the end.

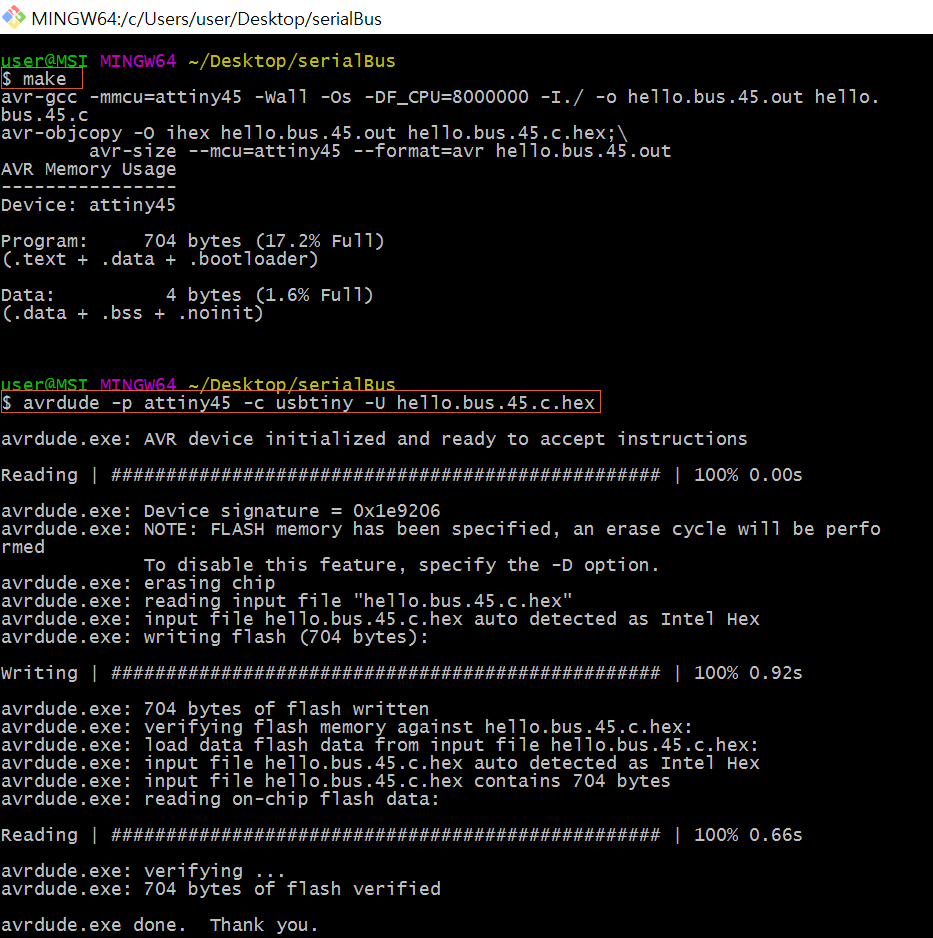

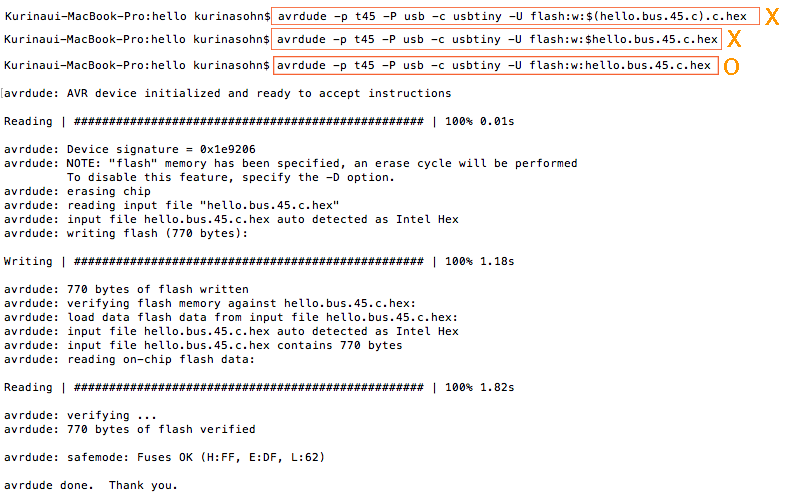

Because I'm using usbtiny: avrdude -p t45 -P usb -c usbtiny -U flash:$(PROJECT).c.hex
Make hex: avrdude -p t45 -P usb -c usbtiny -U flash:w:hello.bus.45.c.hex
Hye-Jin helped me with her code. It is little bit different from mine, but both works.

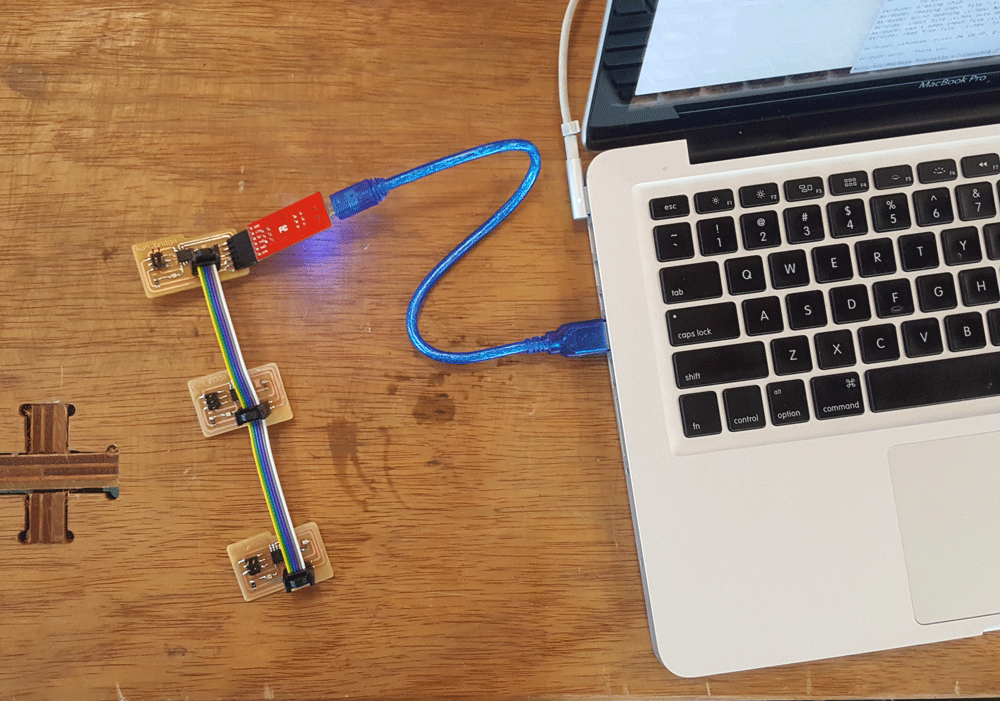

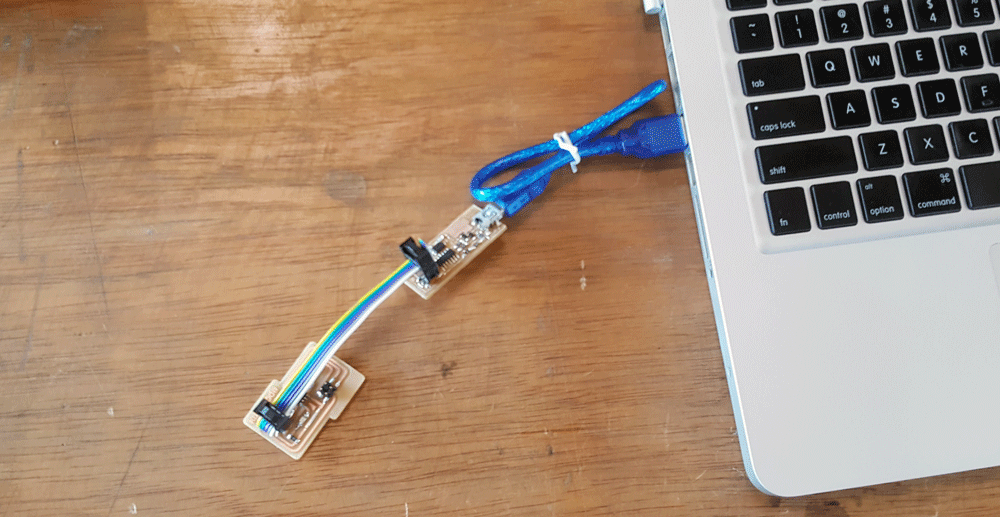

After programming all the PCB individually. Connect it right direction of FTDI and wire with 4 pins.

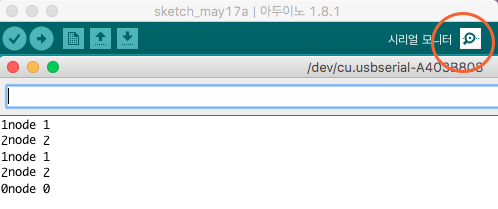

In Arduino IDE, go to serial monitor.

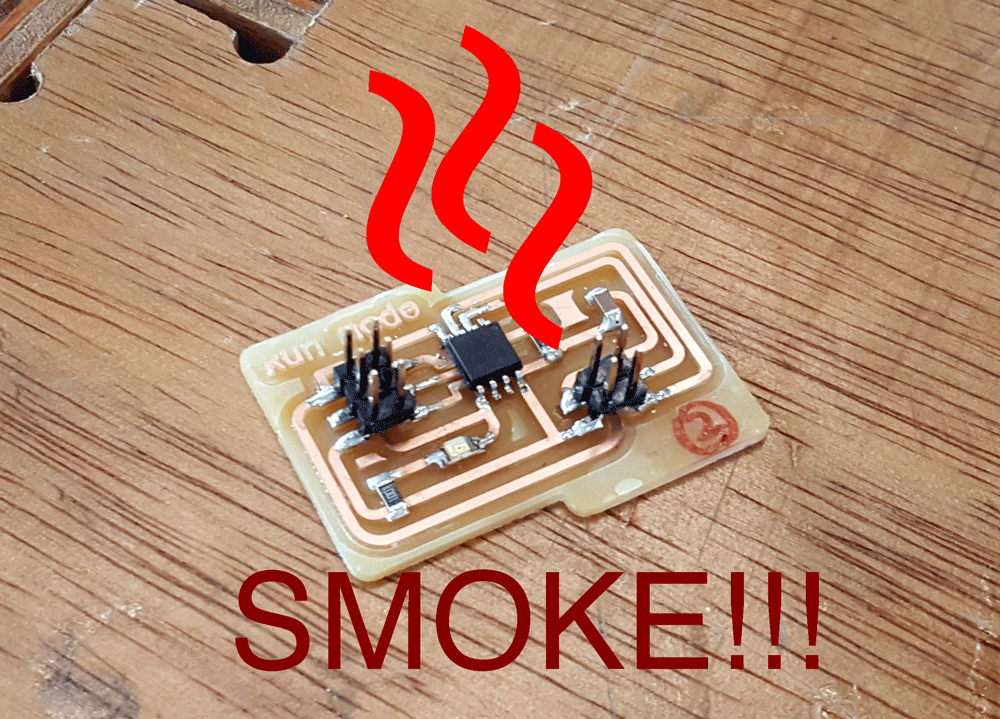

At the end, I made a short by connecting in the wrong parts. Everyone around me saw smoke coming out of my node 2 board.
Download files:
hello.bus.45.c,
hello.bus.45.make
Finished!
HC-12 with Arduino

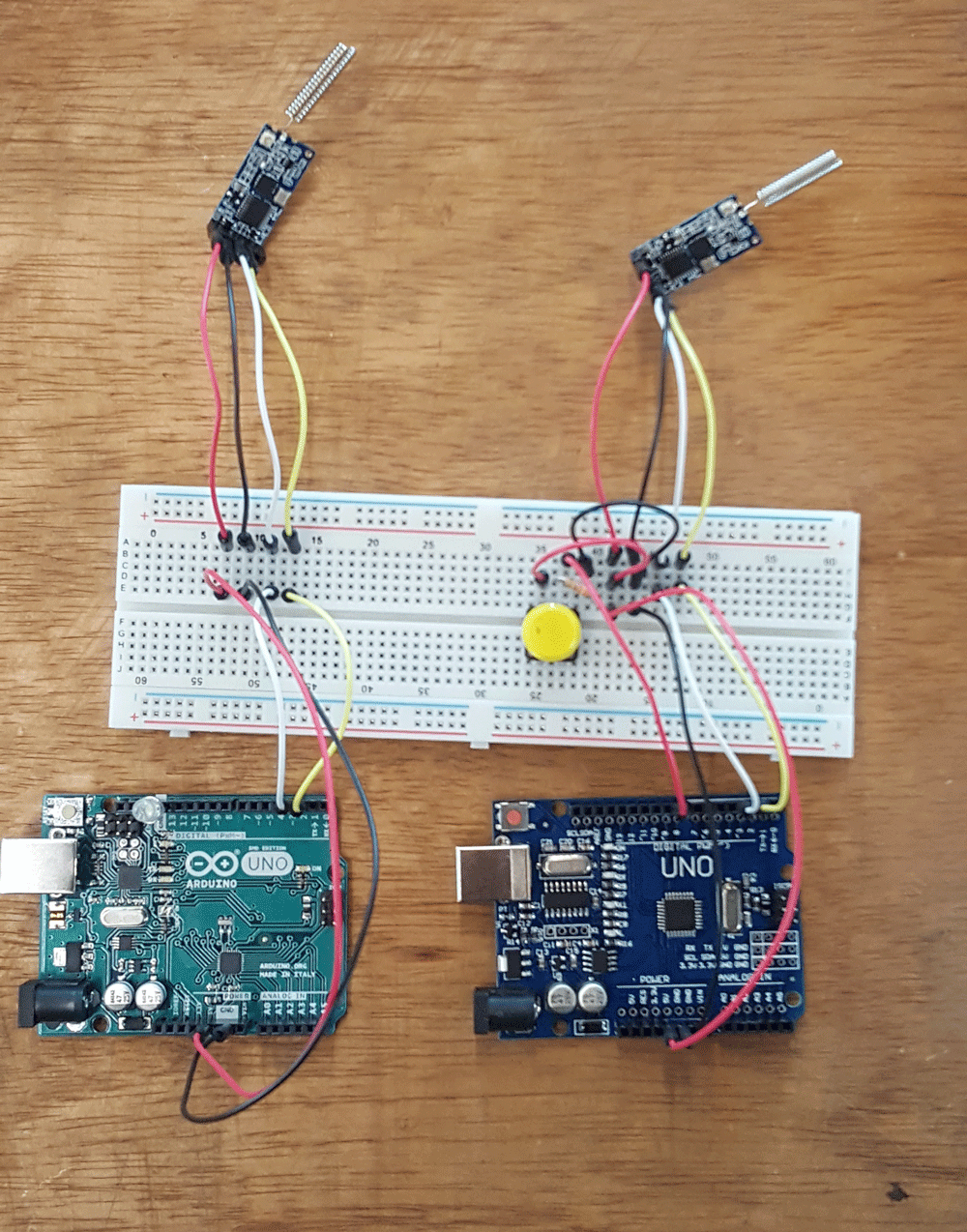

Just as a practice, I've used Arduino and HC-12.
Because I got the code directly from a website( Instructables: about the HC-12

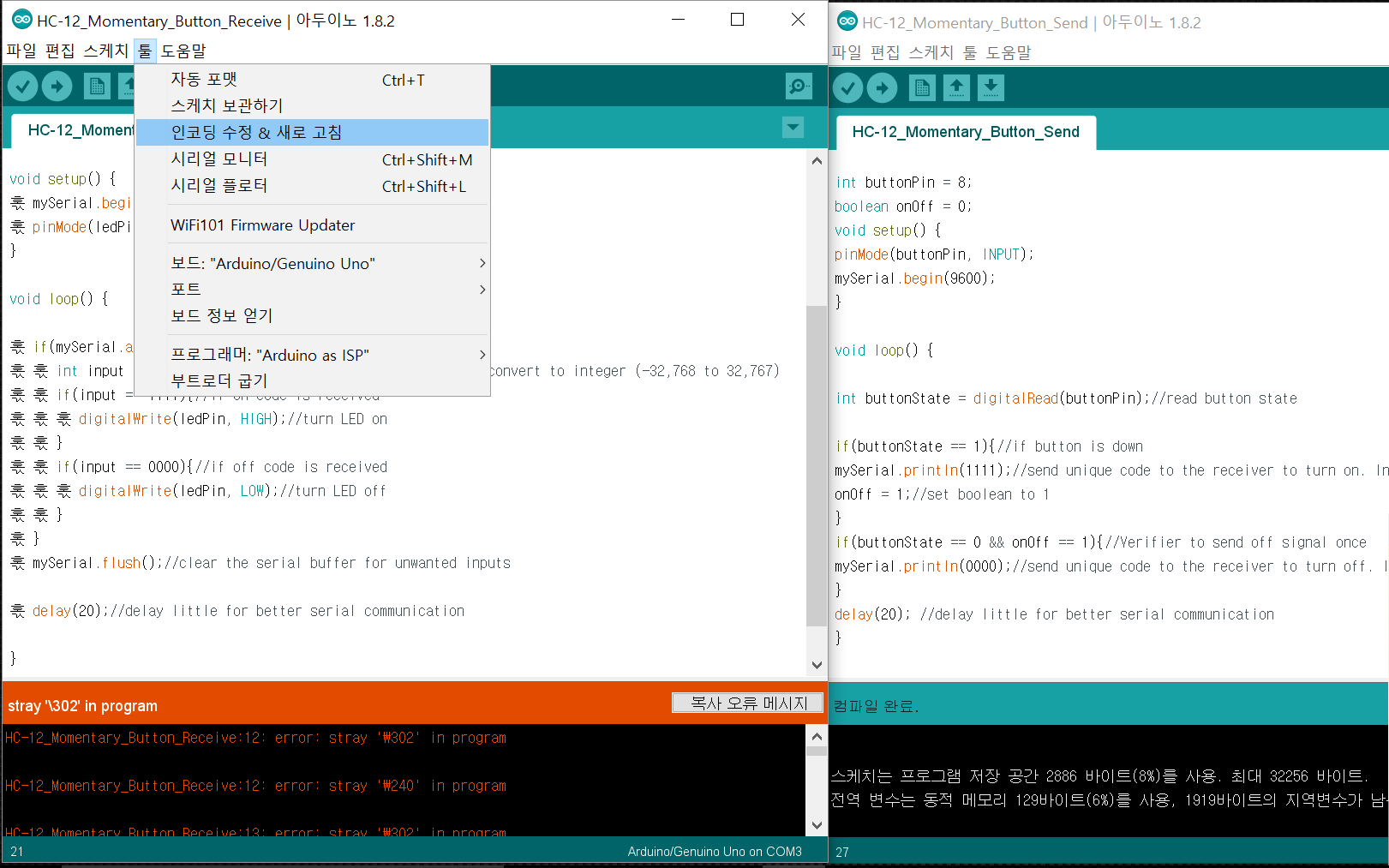

). I had this stray '/302' error. Arduino IDE was showing weird letters.

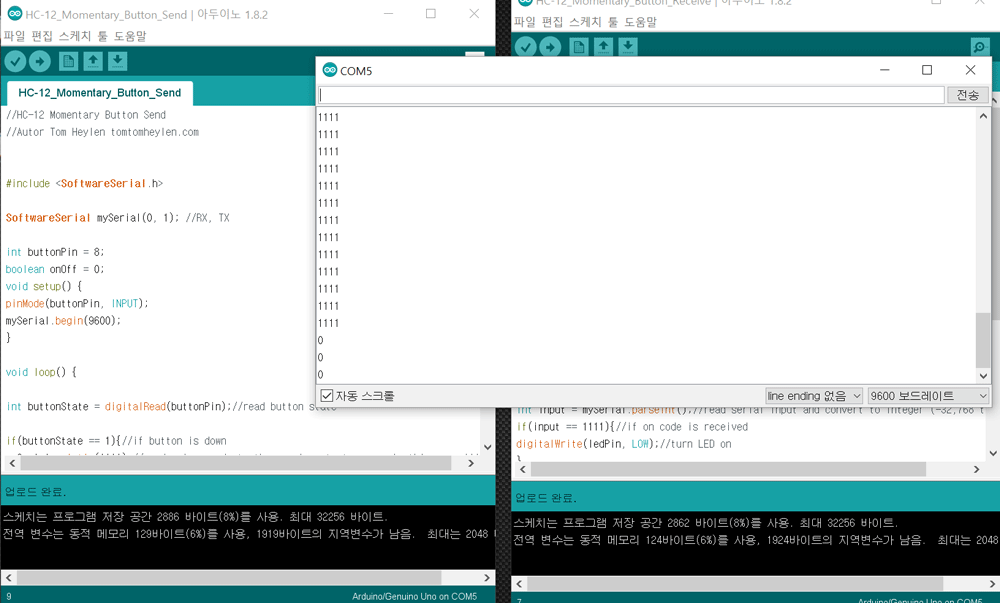

I still have problem with not sending but receiving, but I was successful on sending data through HC-12!
Reference:
- All about circuits: about The HC-12
- link to The HC-12 User Manual
