Mechanical Design

Assignment


Design a machine (mechanism+automation), including the end effector build the passive parts and operate it manually document the group project and your individual contribution
Work

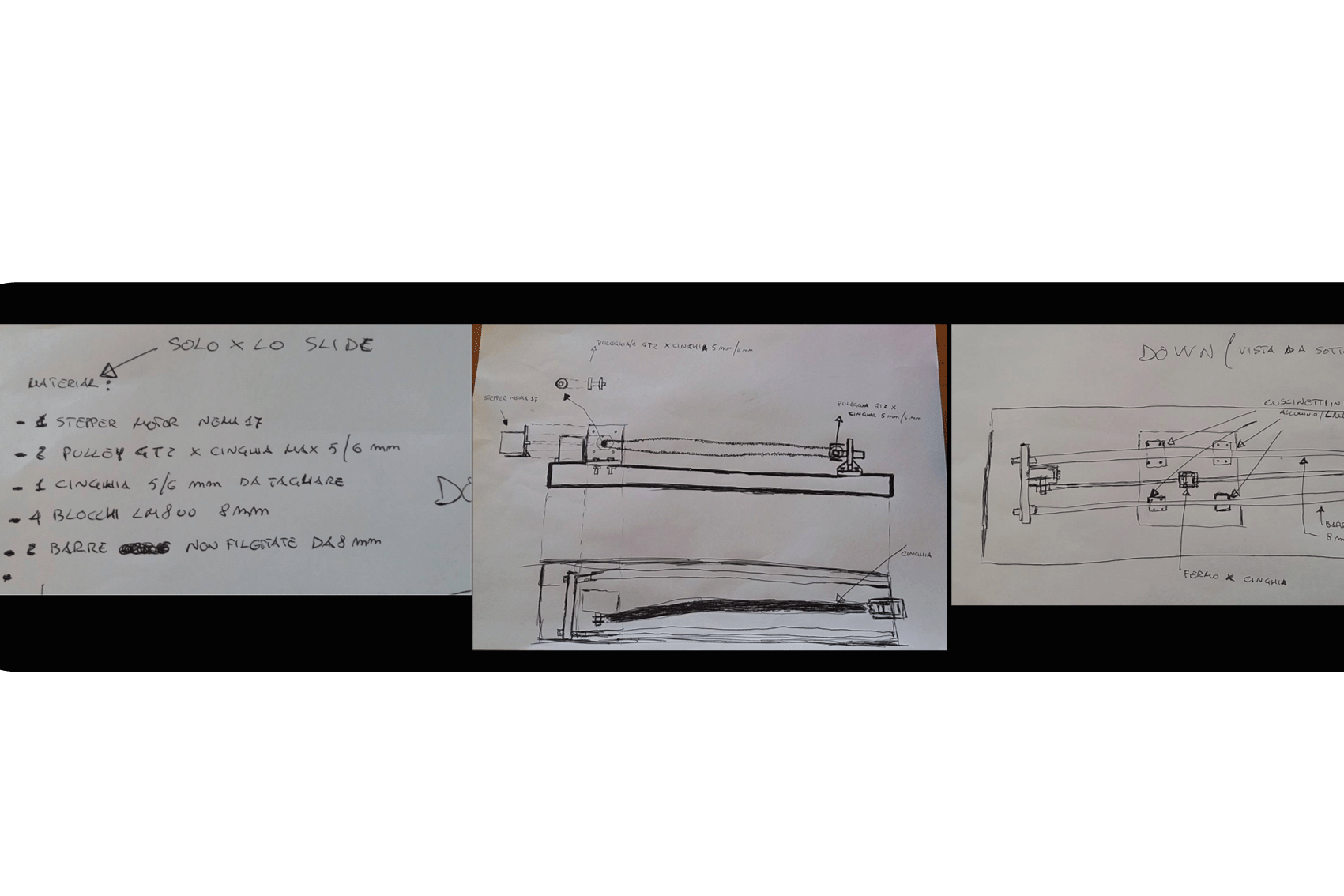

For this Assignment I and Enrico desided to build a camera slider for his camera, but we think it is possible to use with other device, like Xbox Kineckt and other. The first step is dividing task. I choose to design the slide where the camera moves. I found different previous students that build this kind of slider. Like this or
This Before start to Design the slide I need to kwow wich components I need. Component we need for the Slider: 1 Pulley for the Stepper Motor: model Gt2 for belt 6mm 28 teeth more informations Here
1 Belt to cut, width:6mm

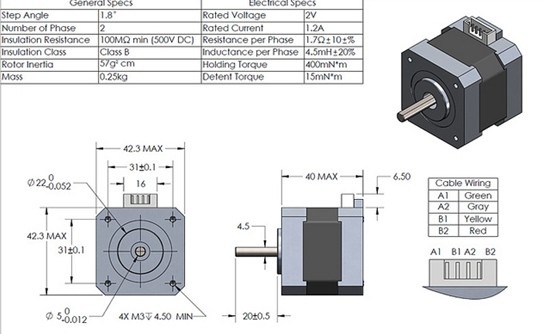

3 Stepper Motor Nema 17

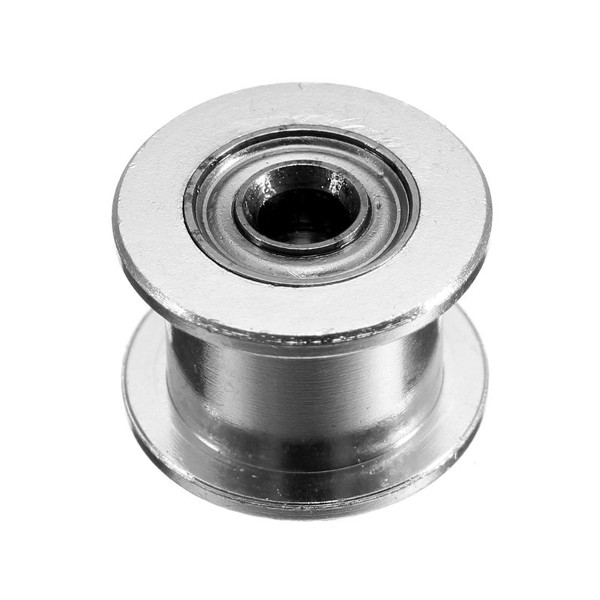

1 Pulley withouth teeth for the tensioner

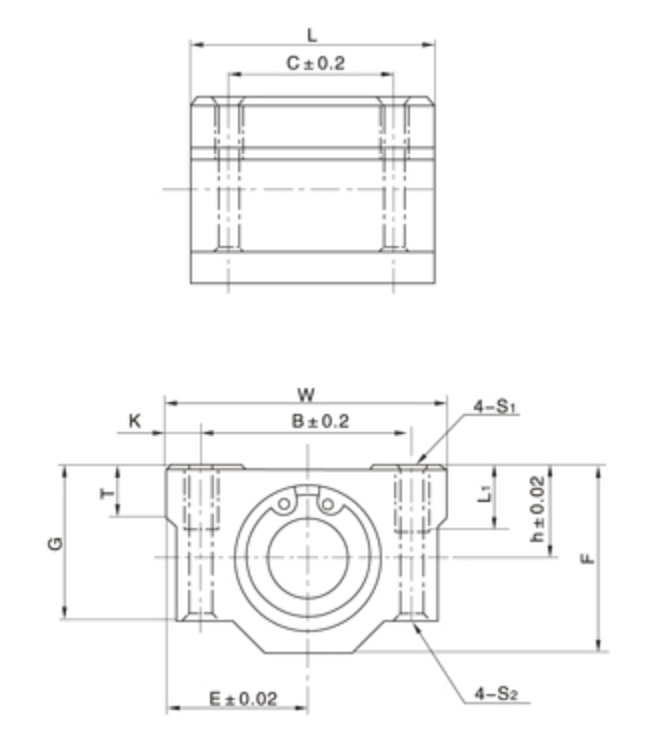

2 Aluminum bars without thread
3 Driver A4988Here a screenshot of the BOM:

Here a screenshot of the BOM:
The complete BOM at this
BOM
The Slider:
Here the Link on Fusion 360:
Slider
I print the part I designed with a Zortra M200, I set this parameters on Z Suite:
  • Layer = 0.09
  • Infill = Max
  • Quality = Max
  • Support = Yes Angle = 20° Option = Support Lite
  • Fan Speed = Auto

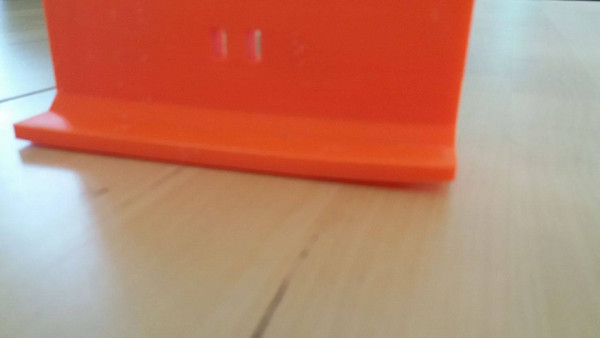

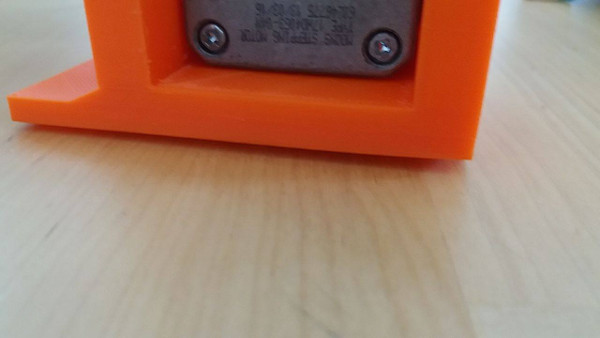

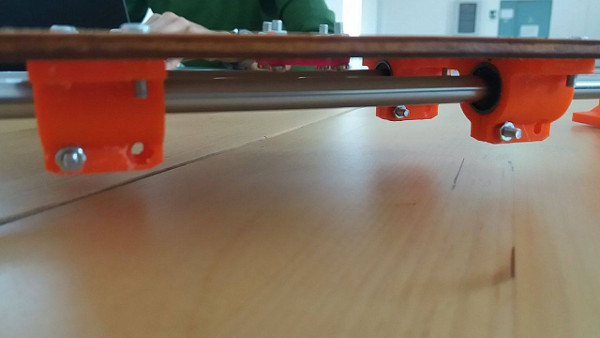

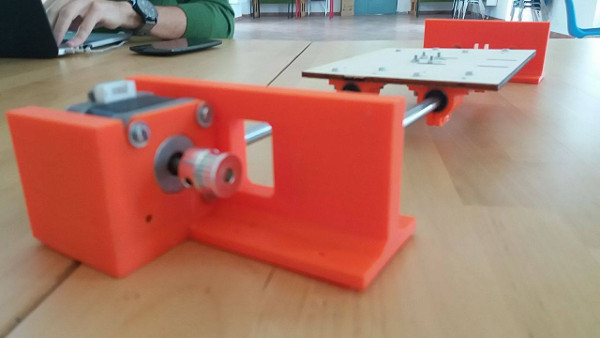

Here the image of the printed part:
Here the file:
BOM
This is the video where can see the manually movement of the X axis:
