Machine Design

Machine Design

Video coming soon.

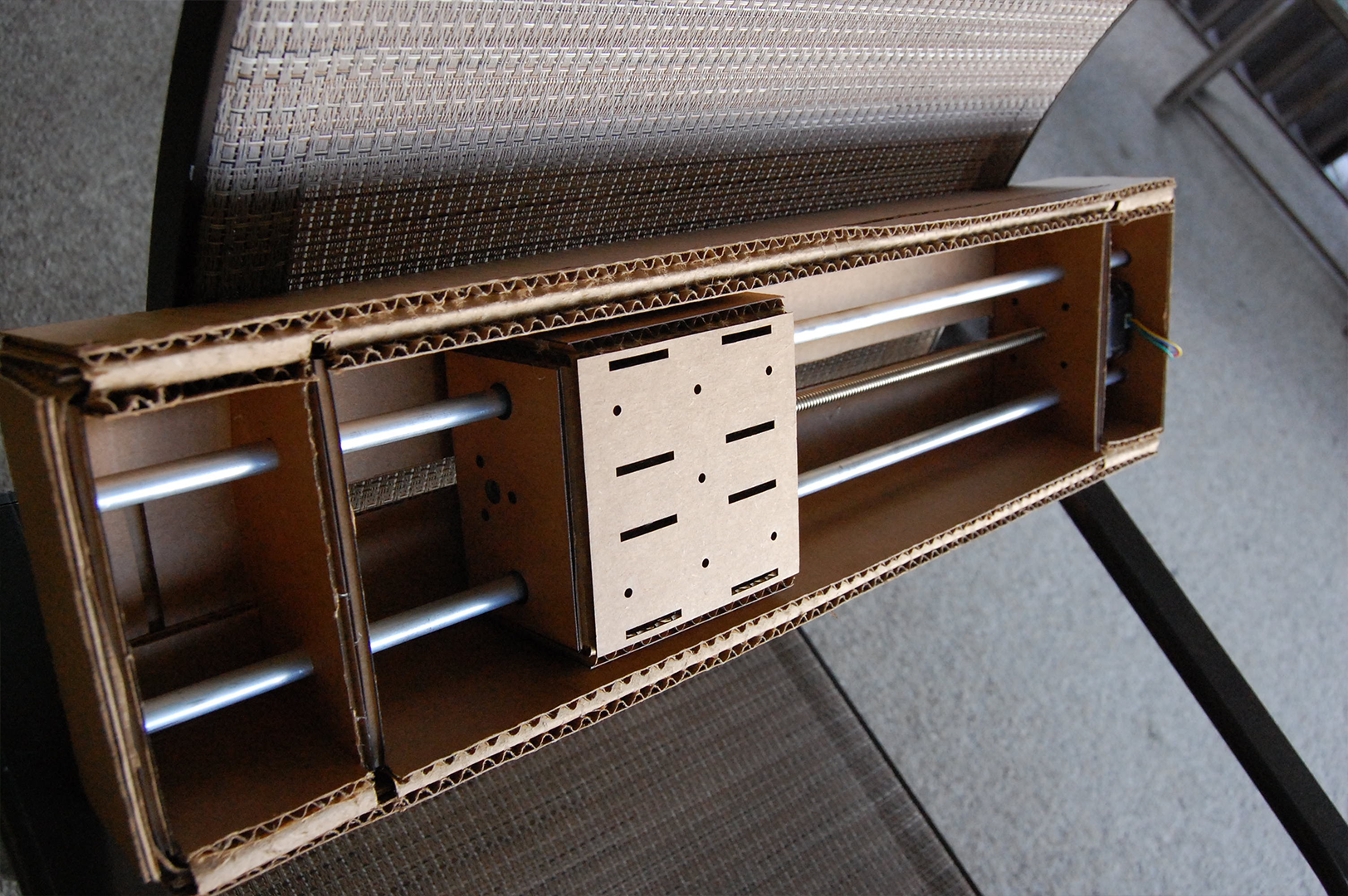

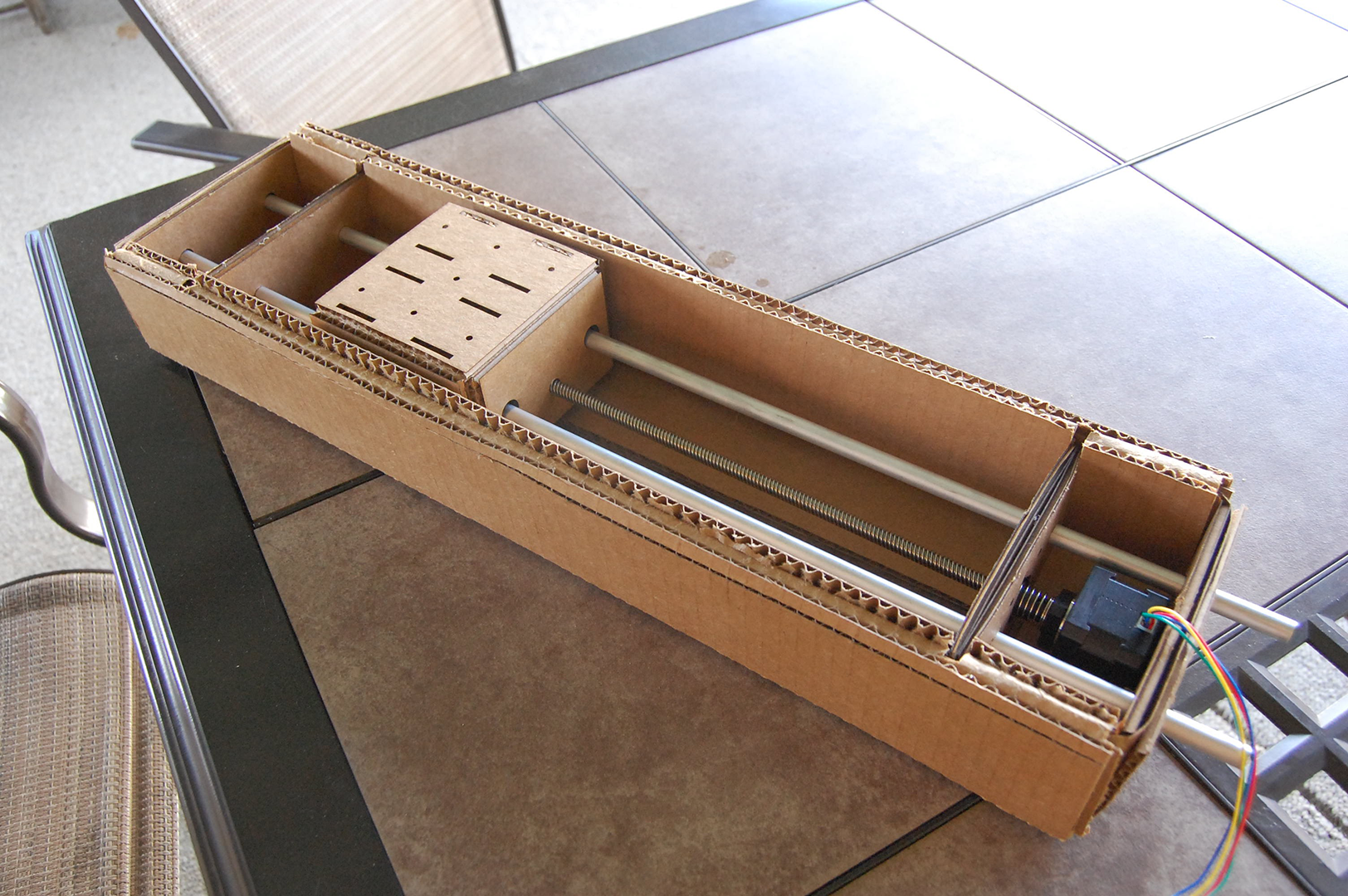

For the machine design we used the epilog laser cutter after downloading the provided files. Adjusting the settings accourdingly to cut the card board and make the score lines. To create the score lines we had to go to color mapping and adject the settings for only the red color at 255. Once the machine box was cut we then assembled the machine following the diagram and instructions provided. Using the Roloand mini mill we then milled our circut board and soldered on the appropriate pieces. The machine is not yet complete and our next steps include to program the board and complete the final machine design.
