3 PROTOTYPE

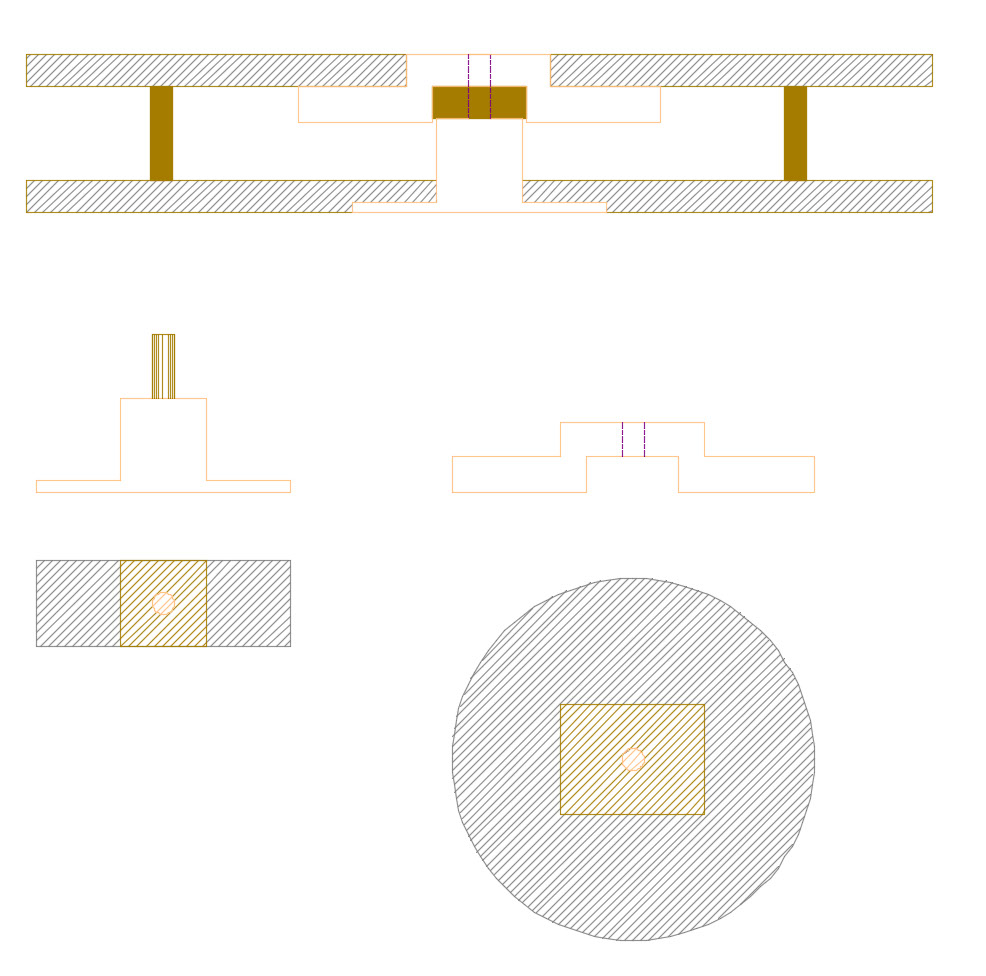

We had to make several drawings and the coordination of the design took a long time. Once we agreed we worked out the drawings in AutoCad to define the measurements of the pieces.

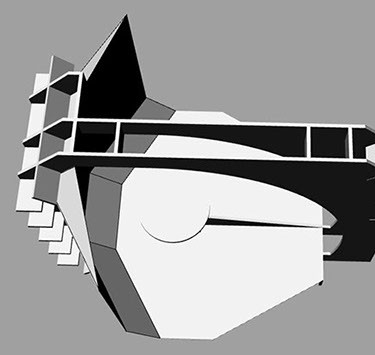

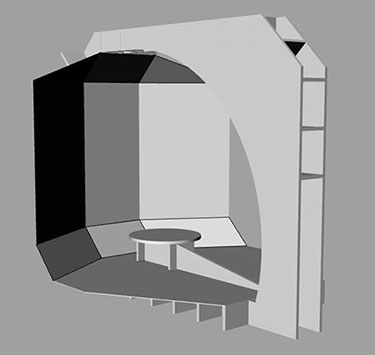

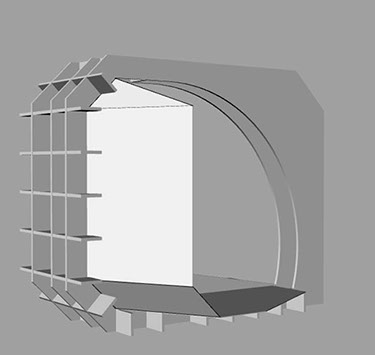

We elaborate a 3d in Rhinoceros to be able to visualize the design and to be able to correct any problem before the manufacture of the pieces.

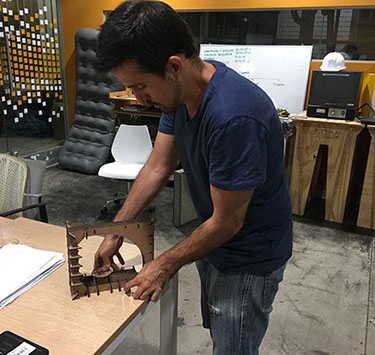

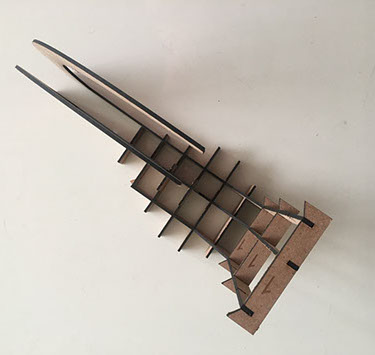

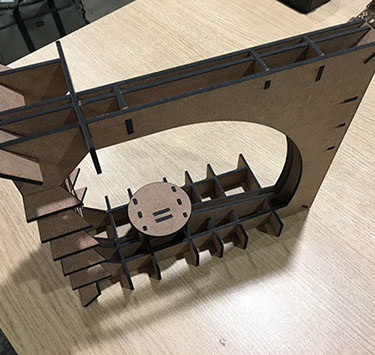

First we make a model to test the design. We don't need the scanner make a 360-degree turn because we have the turntable that will change the angle of the photo and on the rail the phone will be shifting taking the photographs.

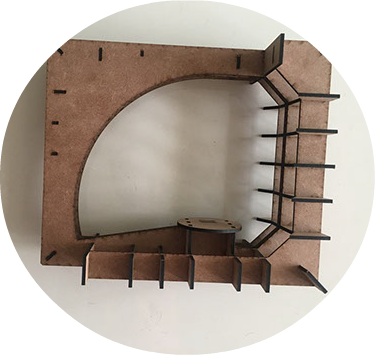

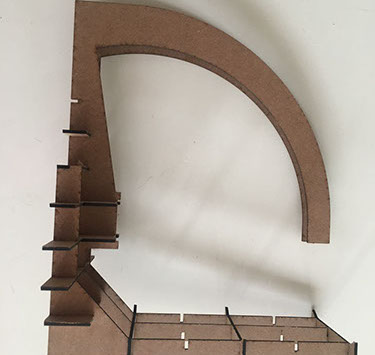

For the second model some things were corrected. For example the frame of the machine is completed to give greater stability and rigidity to the object. The turntable would consist of two parts (fixed and movable)
