6 ASSEMBLY

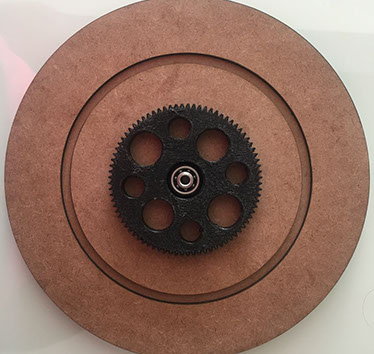

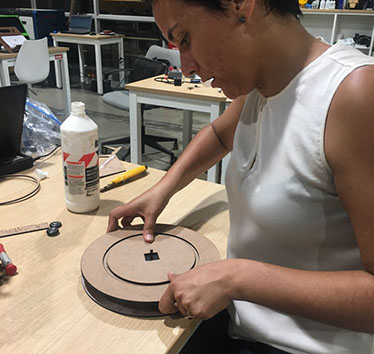

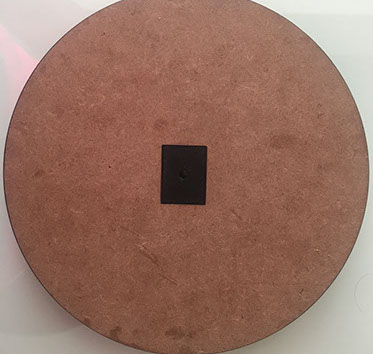

Our scanner combines the use of all machines available in the Fab Lab Esan. In these images we see the assembly of the turntable where the fruits (or any object) will be placed under scanning. The plate is of mdf 3mm and the accessories are of PLA.

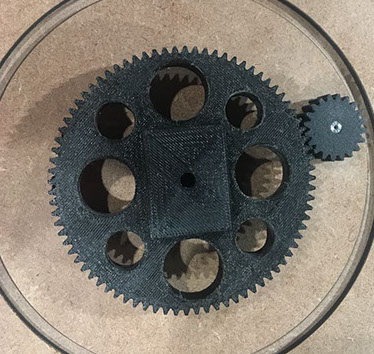

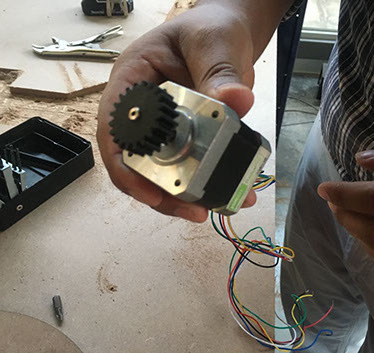

The gears were designed in AutoDesk Inventor. The small gear would be attached to the motor allowing the rotation of both gears and turn the turn of the plate. For the bra of the cellular (made in mdf 3mm and armed with press fit) we used small garruchas and 3m. Of belt GT2 6mm of thickness.

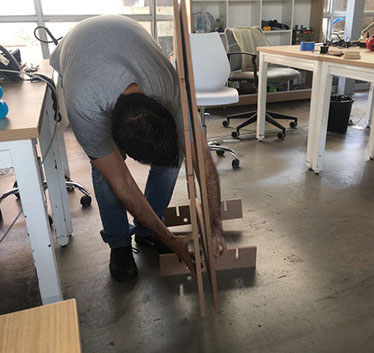

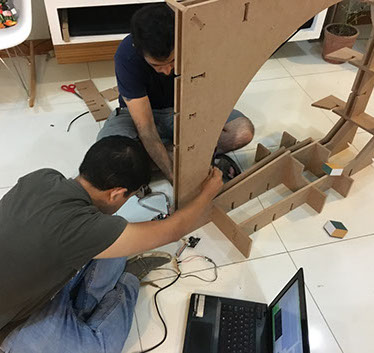

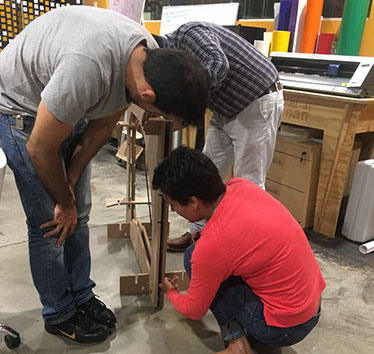

The whole frame of the machine was made in 12mm mdf using the press fit system for the assembly. This allows to send the machine in a small box and to be able to assemble it easily in any place, it does not need specialized personnel nor any complicated tool.

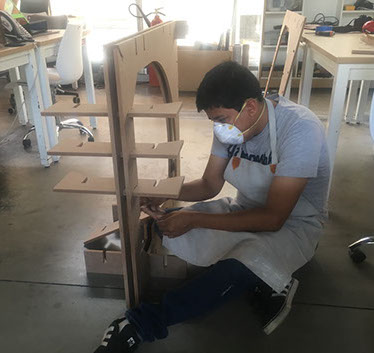

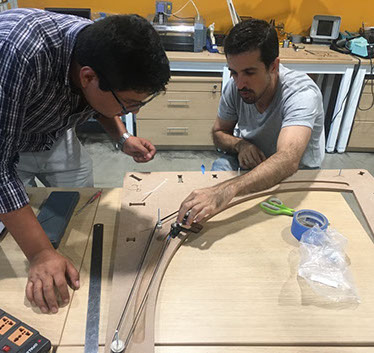

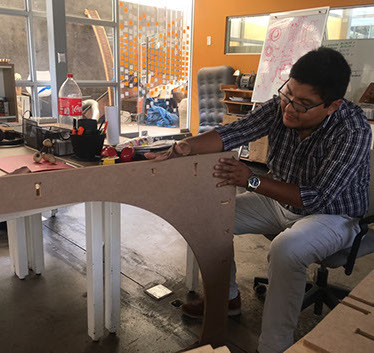

We sand the mdf pieces so that the press fit will arm without problem. We made the assembly of the cellular fastener to test how easily the fastener runs through the channel. We had to downgrade the channel a bit with the Dremel.
