RHINO

I used Rhino to create my initial design. The top surface had a hole in the center to pass the wires to the PCB inside the bbox and also to allow light from LED light source. The red lines will be pockets, these lines are for trails formed by the origami installation made for my final project.

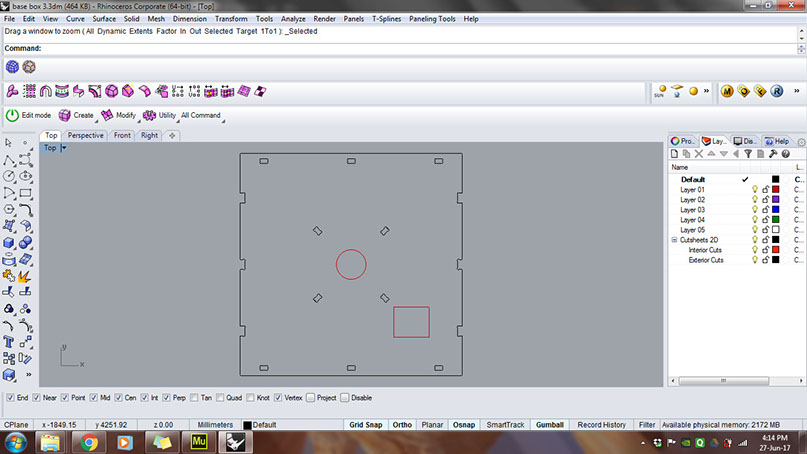

This is the bottom portion of the box. It has pockets for my PCB and LED light source. It also has notches for the stand beneath.

This is one of my side member of the box. The big hole is for wire to pass to external supply and the small holes are to hold distance sensor.

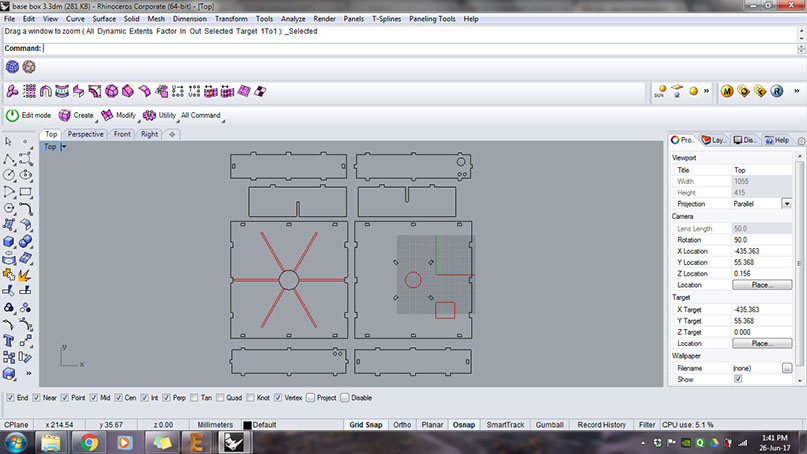

This is how my over-all file looked like.

Final files can be found here.
