Guide to prepare your Atmega328 for Programming with Arduino

I found a library for Atmega328 github carlosefr and installed it in Arduino's library:

Open Arduino/Preferences

plane

In Preferences window you can insert copied webside address:

plane

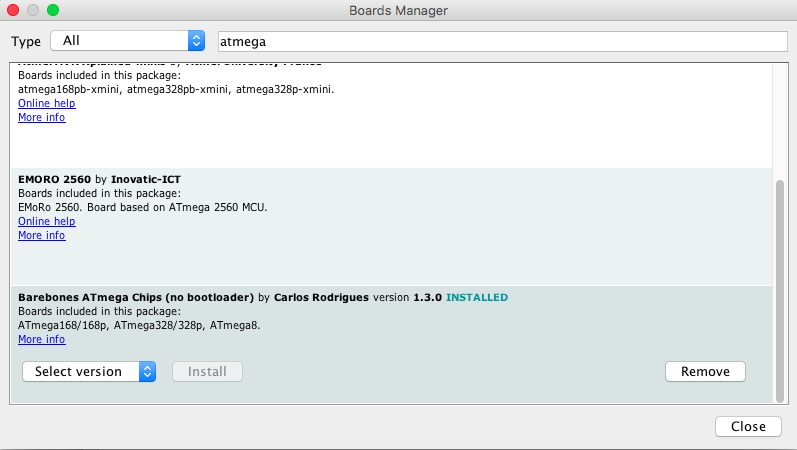

Click on o.k and open Tools/Board/Boards Manager and select Barebones Atmega Chips and click install.

plane

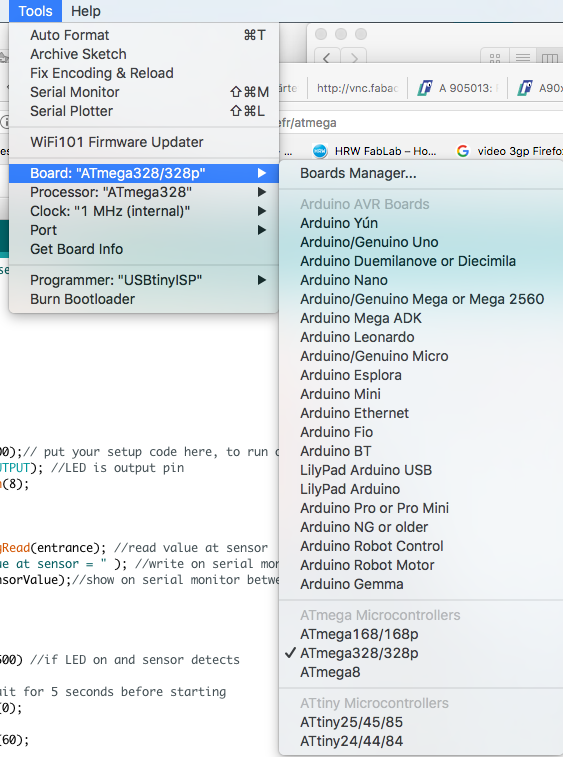

Now, you can find the installed chip library in Board list.

plane

plane

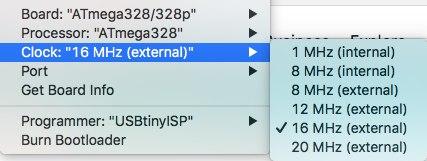

Set Tools/Clock to your board situation, may be you have an external clock.

plane

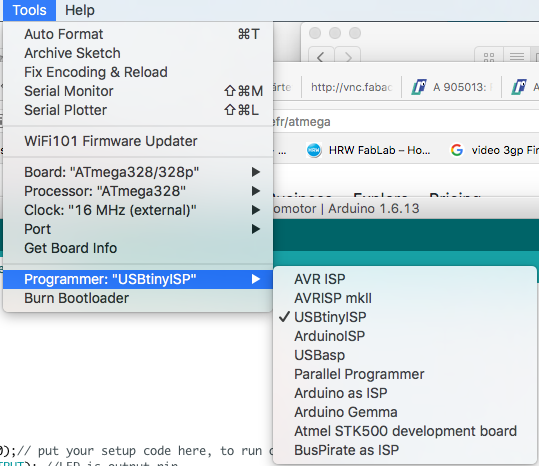

Choose Tools/Programmer.

plane
