Assignments

1. Write an application that interfaces with an input &/or output device that you made,

---

Designing schematic & board layout

I have decided to make LED ON/OFF based on the mouse hovering on certain rectangular region in interface.

I designed a board having a switch & a led with attiny44.

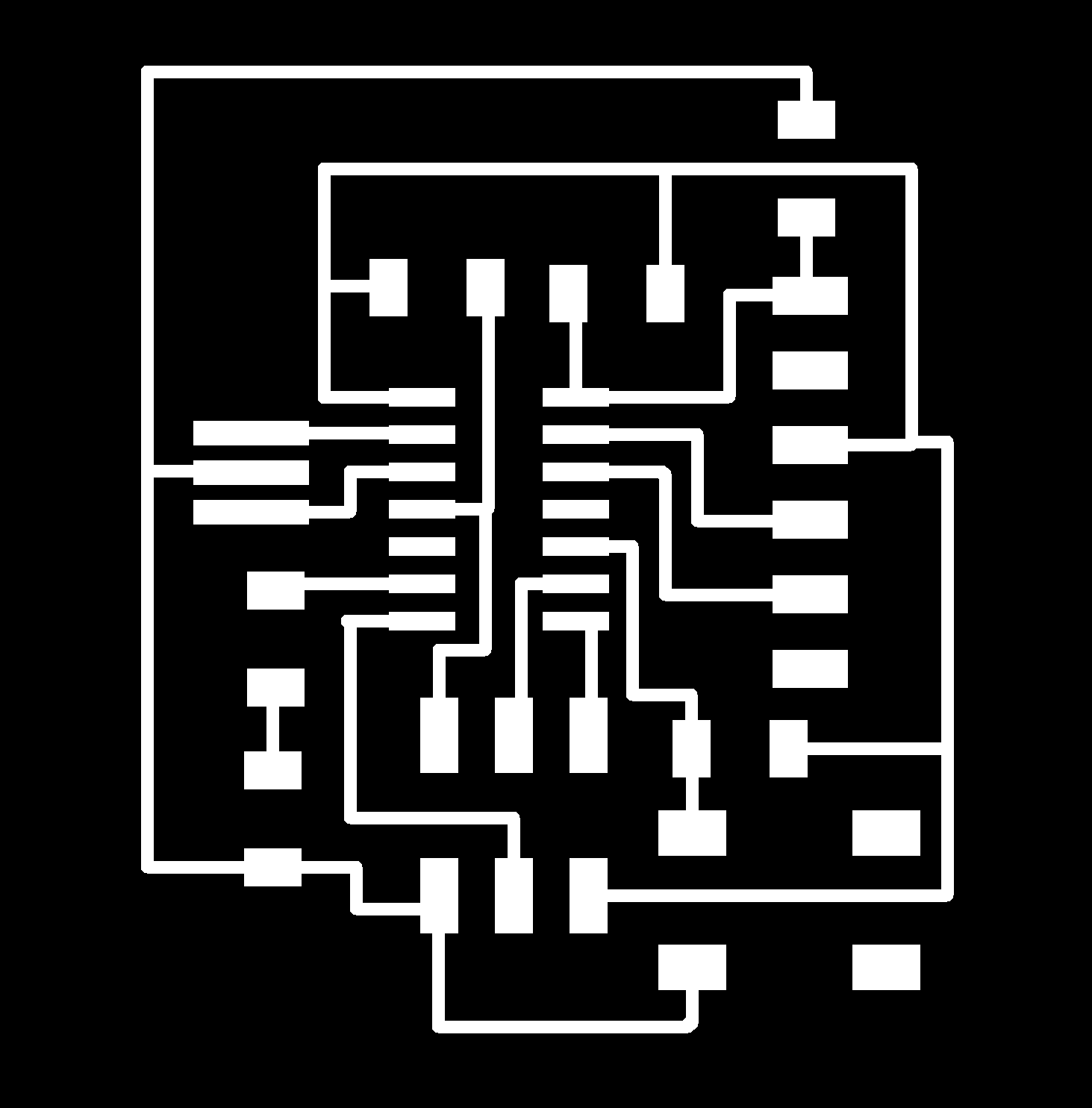

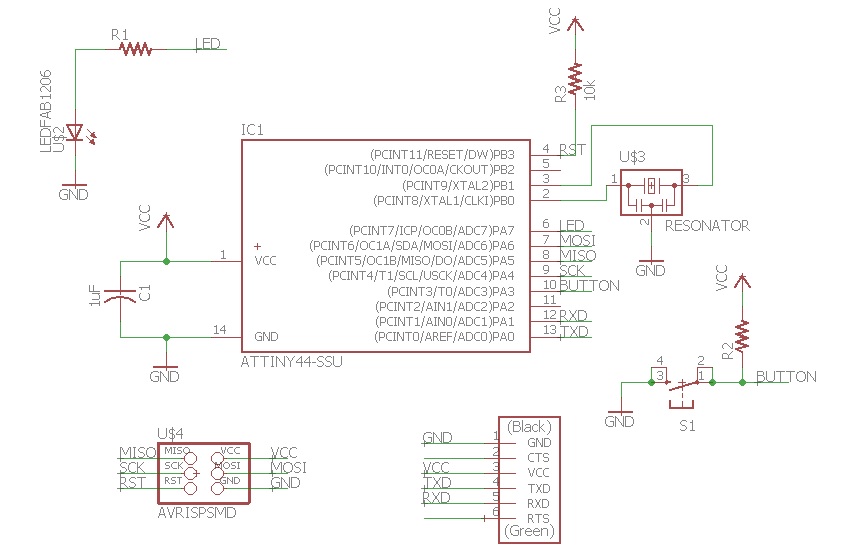

Here is the schematic & board layout designed in eagle.

---

Milling & Soldering the board

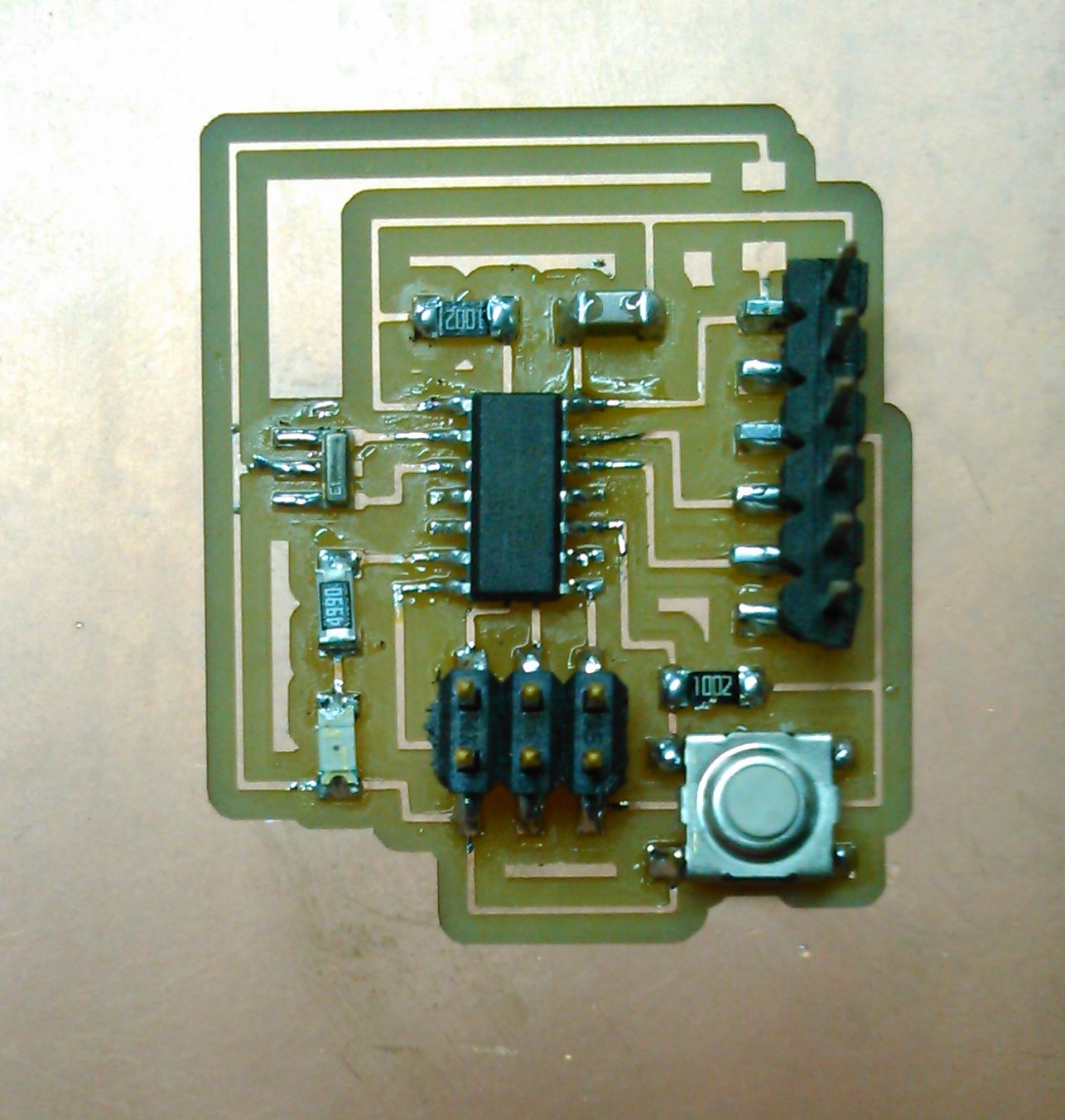

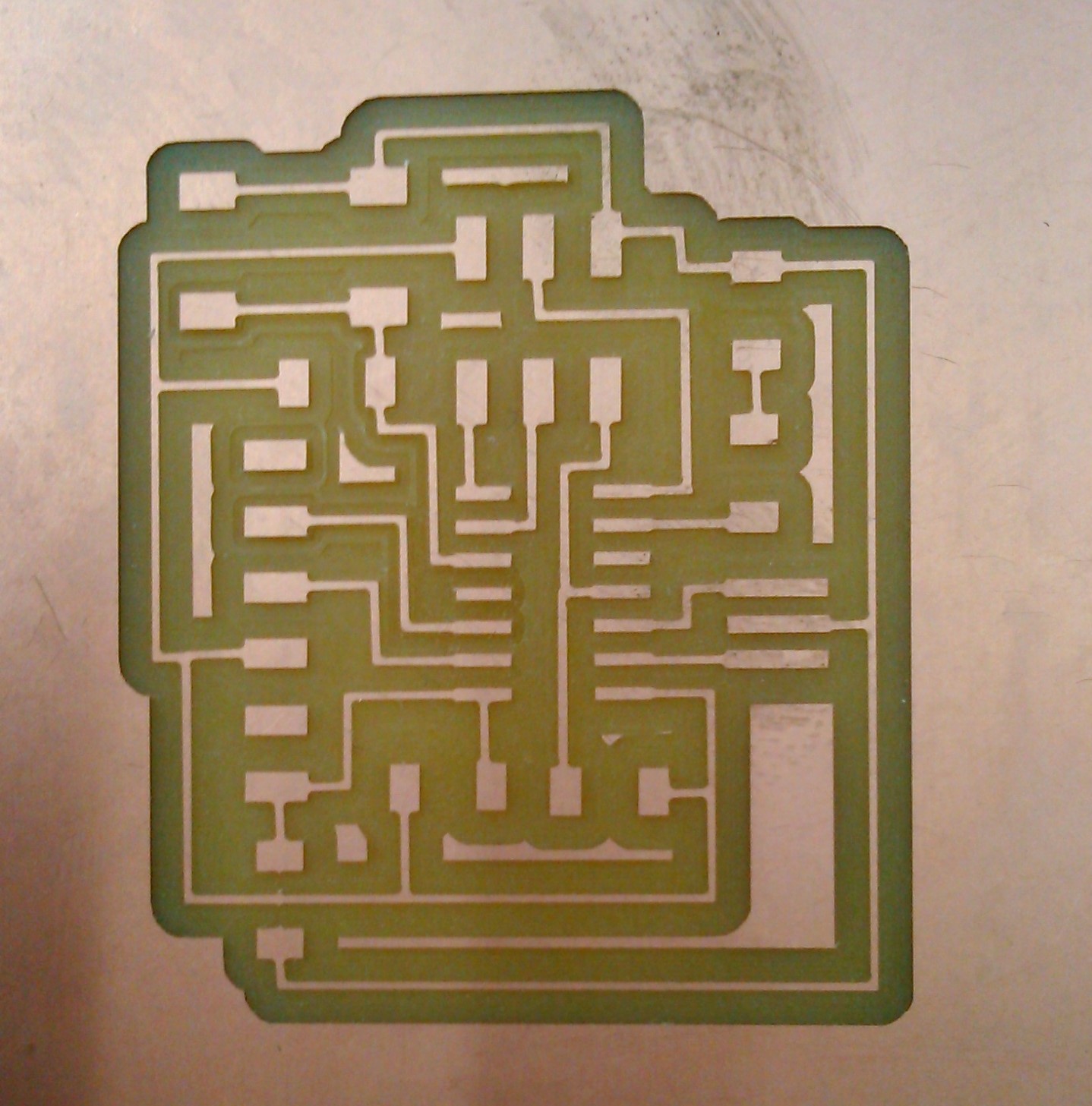

Then I milled the board & soldered it.

---

Downloading & installing processing

I decided to use processing for making interface. I downloaded the procesing from here and installed it.

Then I followed the electronics tutorial of processing.

---

Embedded Programming

Here is the code for attiny44 board.

	#include
SoftwareSerial mySerial(1,0); // RX, TX
// Read data from the serial and turn ON or OFF a light depending on the value

char val;                          // Data received from the serial port
int ledPin = 7;                    // Set the pin to digital I/O 4

void setup() {
  pinMode(ledPin, OUTPUT);  // Set pin as OUTPUT
  mySerial.begin(9600);              // Start serial communication at 9600 bps
}


void loop() {
  if (mySerial.available()) {        // If data is available to read,
    val = mySerial.read();  // read it and store it in val
  }
  if (val == '1') {                // If H was received
    digitalWrite(ledPin, HIGH);    // turn the LED on
  } else if(val== '0') {
    digitalWrite(ledPin, LOW);     // Otherwise turn it OFF
  }
  delay(100);    // Wait 100 milliseconds for next reading
}


---

Processing Code

Here is the code in processing for creating a GUI which includes a rectangular block. This rectangular block turns gray on mouse hovering and turns black otherwise.

	// Check if the mouse is over a rectangle and write the status to the serial port

import processing.serial.*;

Serial port;                       // Create object from Serial class

void setup() {
  size(200, 200);
  noStroke();
  frameRate(10);
  println(Serial.list());
  // Open the port that the board is connected to and use the same speed (9600 bps)
  port = new Serial(this,Serial.list()[0], 9600);
}

void draw() {
  background(255);
  if (mouseOverRect() == true)  {  // If mouse is over square,
    fill(204);                     // change color and
    port.write('1');               // send an H to indicate mouse is over square
  } else {                         // If mouse is not over square,
    fill(0);                       // change color and
    port.write('0');               // send an L otherwise
  }
  rect(50, 50, 100, 100);          // Draw a square
}


boolean mouseOverRect() {        // Test if mouse is over square
  return ((mouseX >= 50) && (mouseX <= 150) && (mouseY >= 50) && (mouseY <= 150));
}


---

Output Video

Here is the output...

---

You can download files here...
