Week6

Electronics Design

Design part

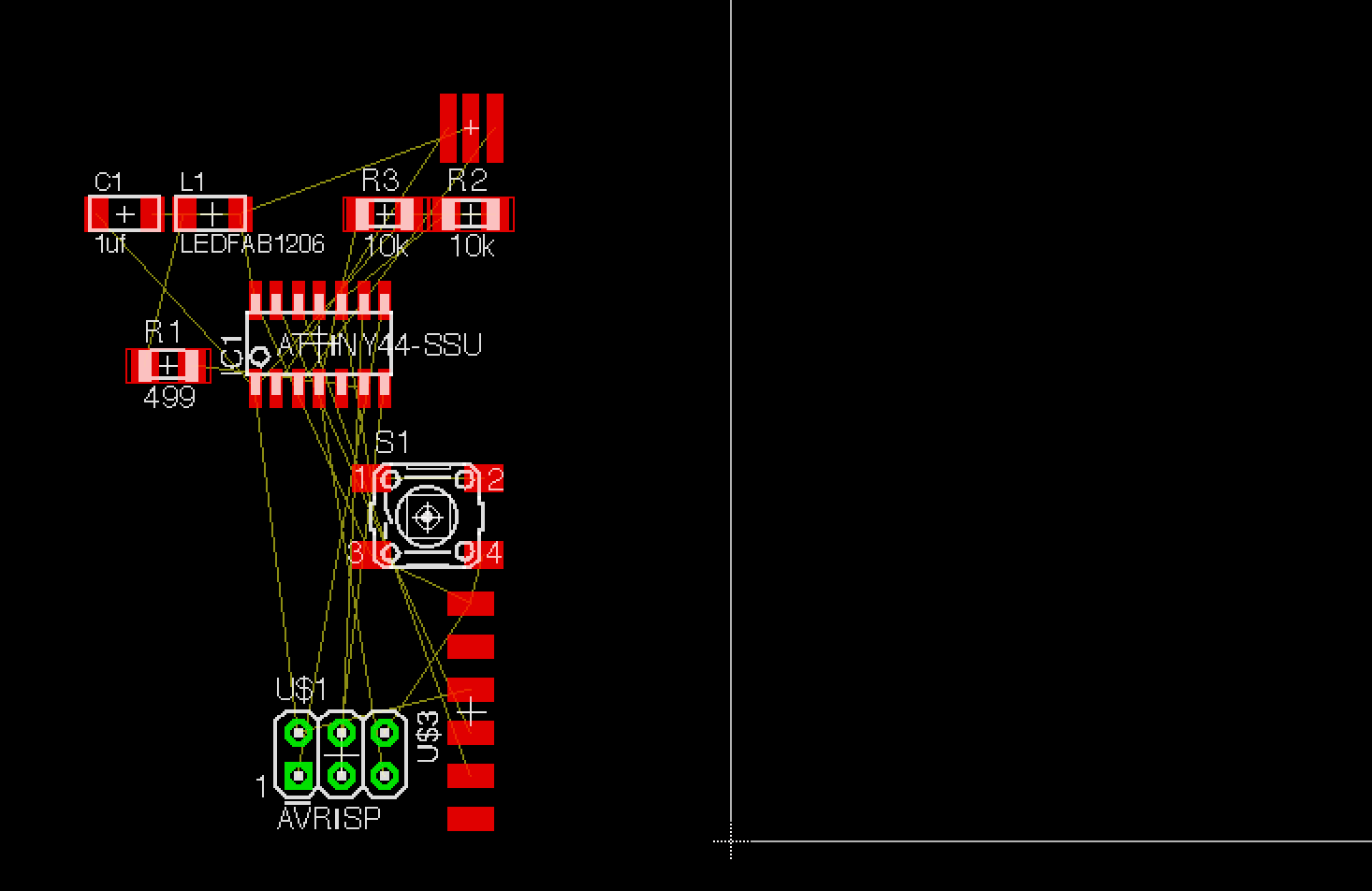

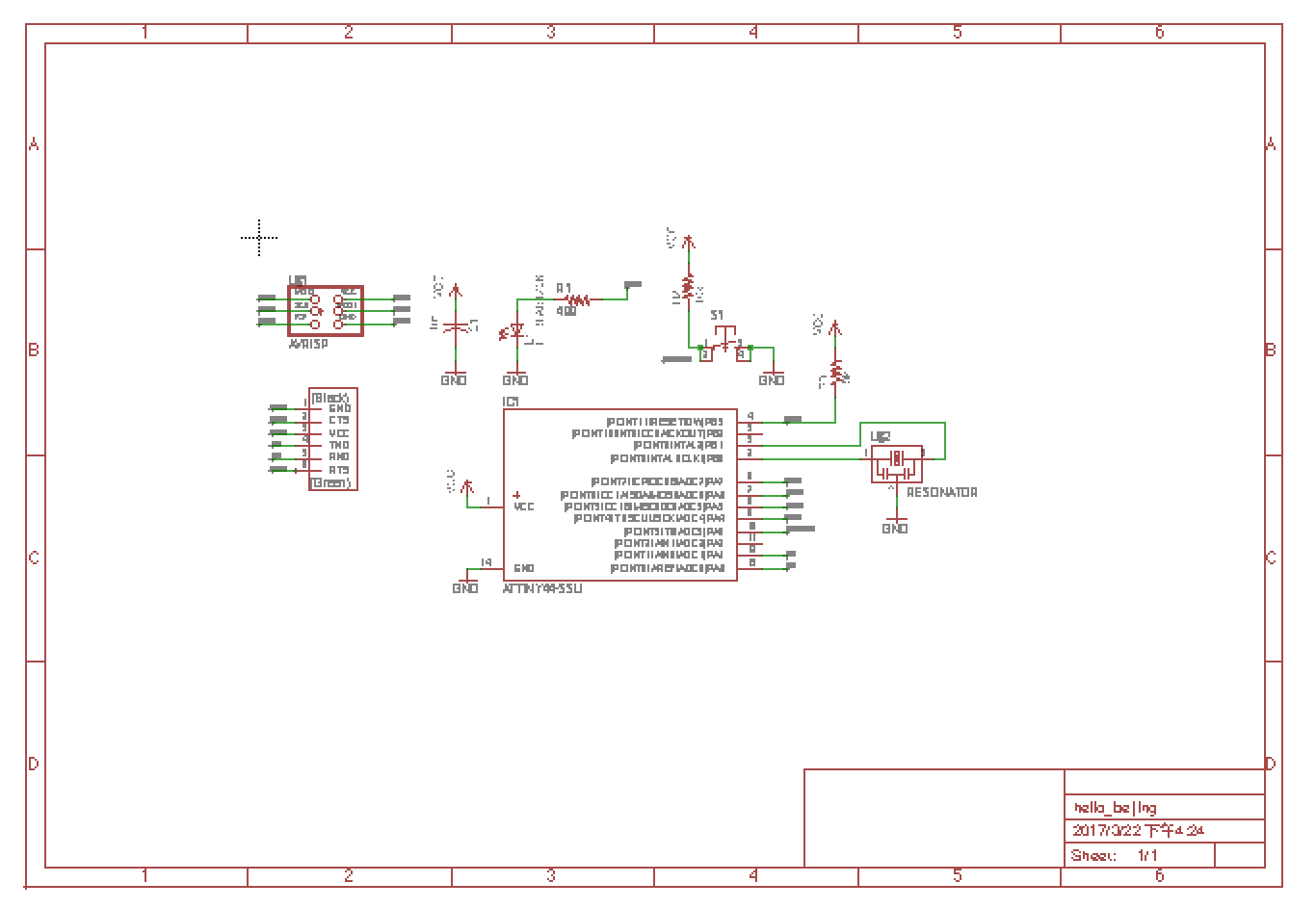

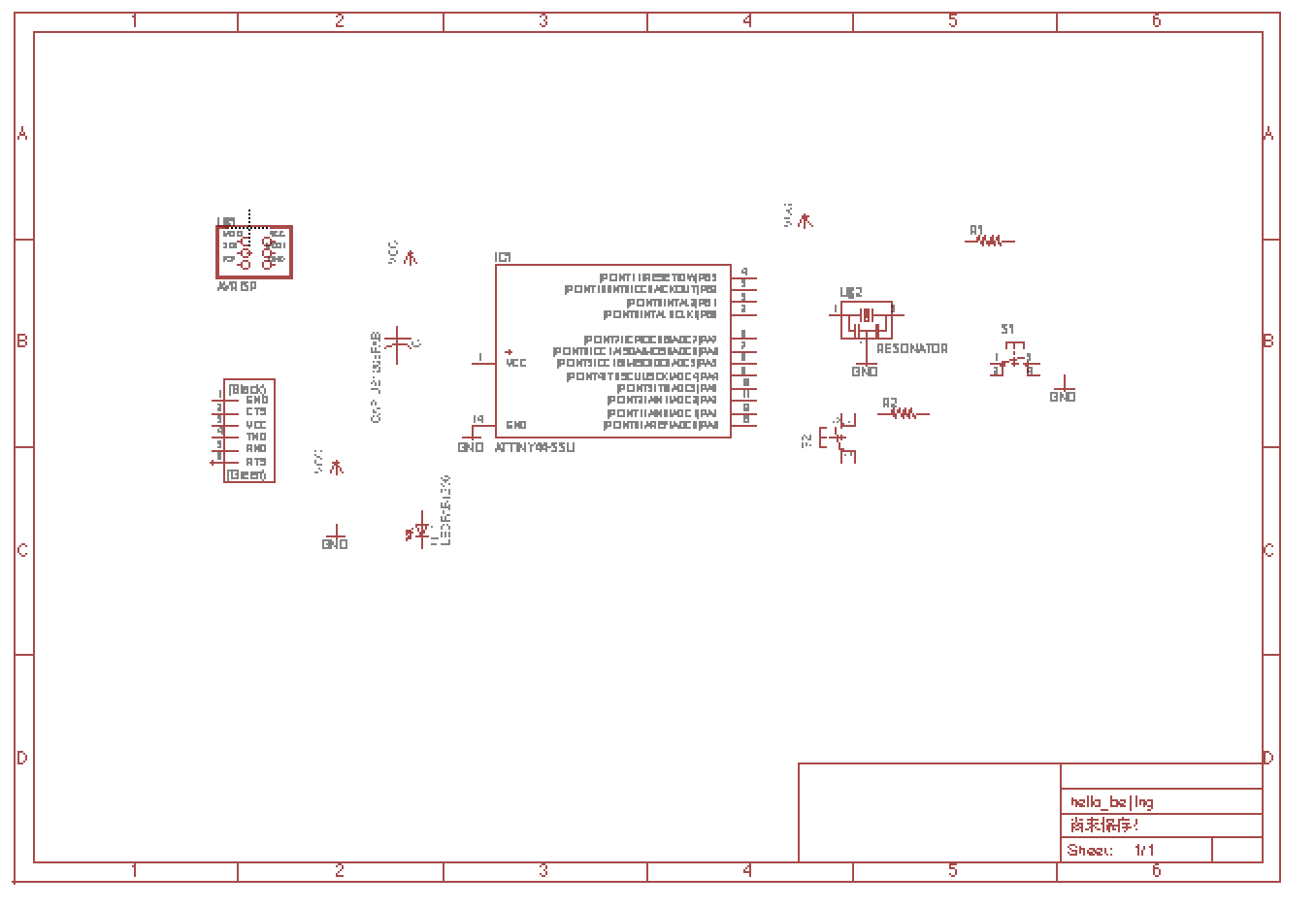

I used the Eagle to design this board, base on original "Hello world board", add a button, LED and our logo on it.

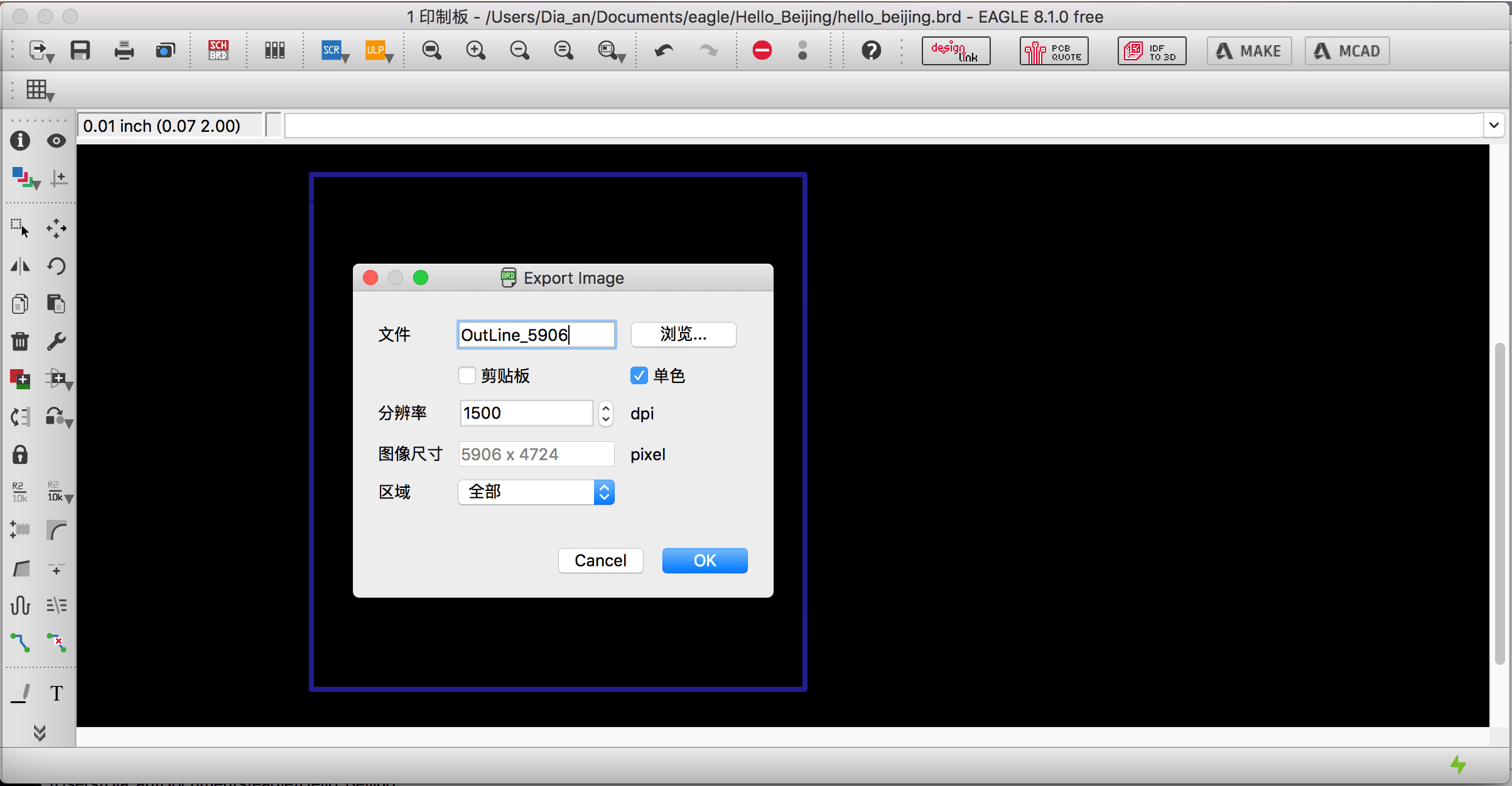

- Eagle

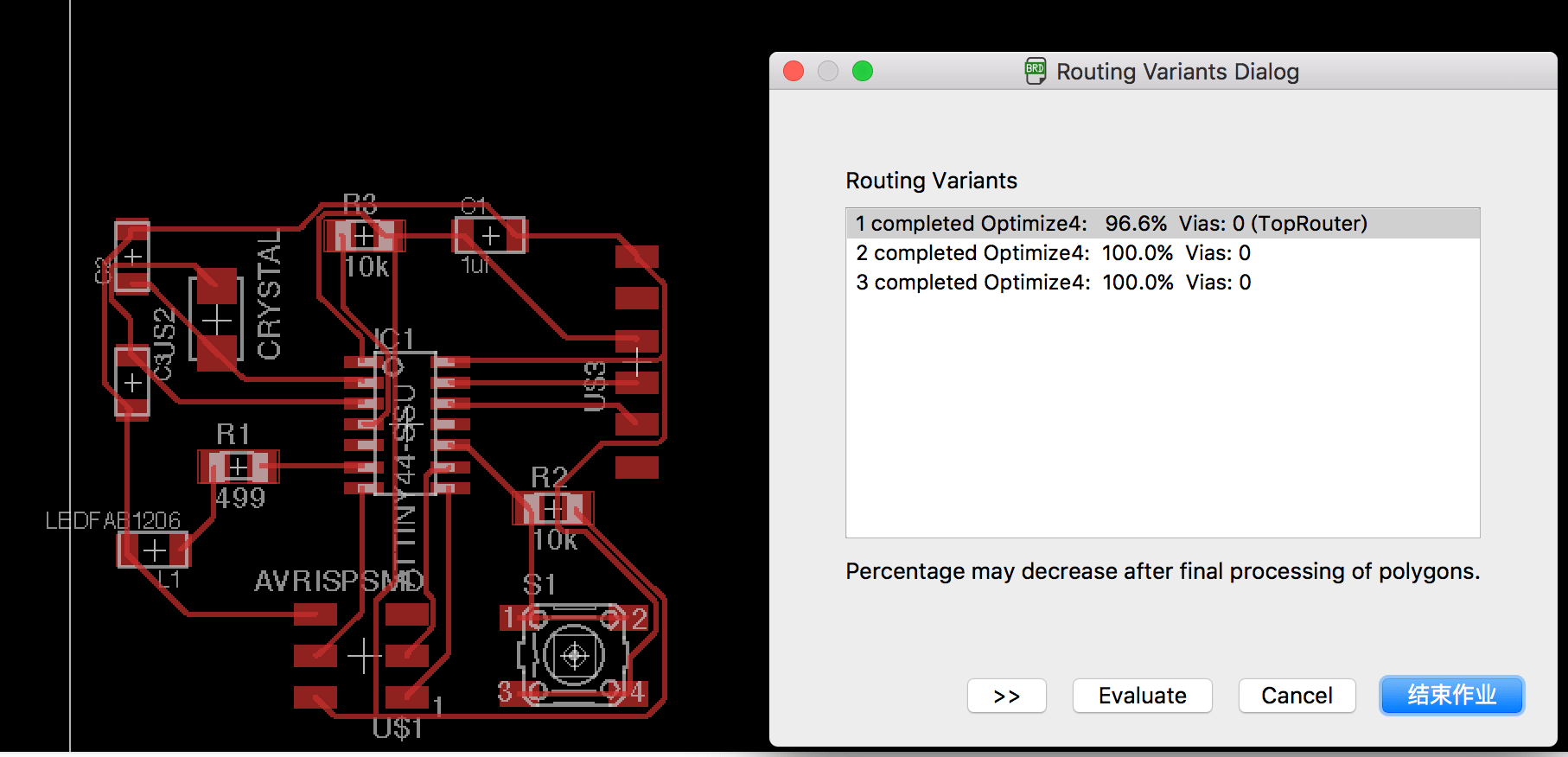

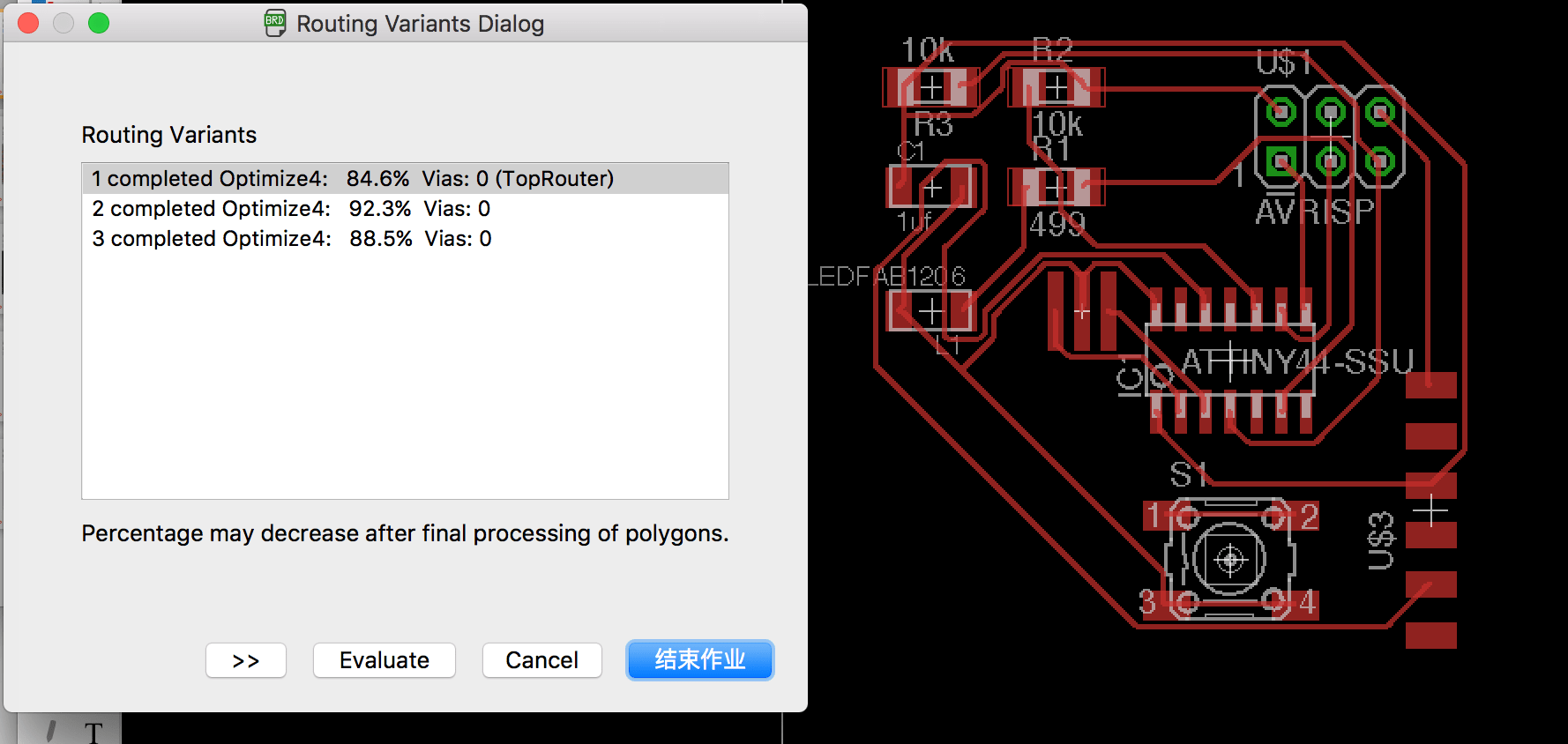

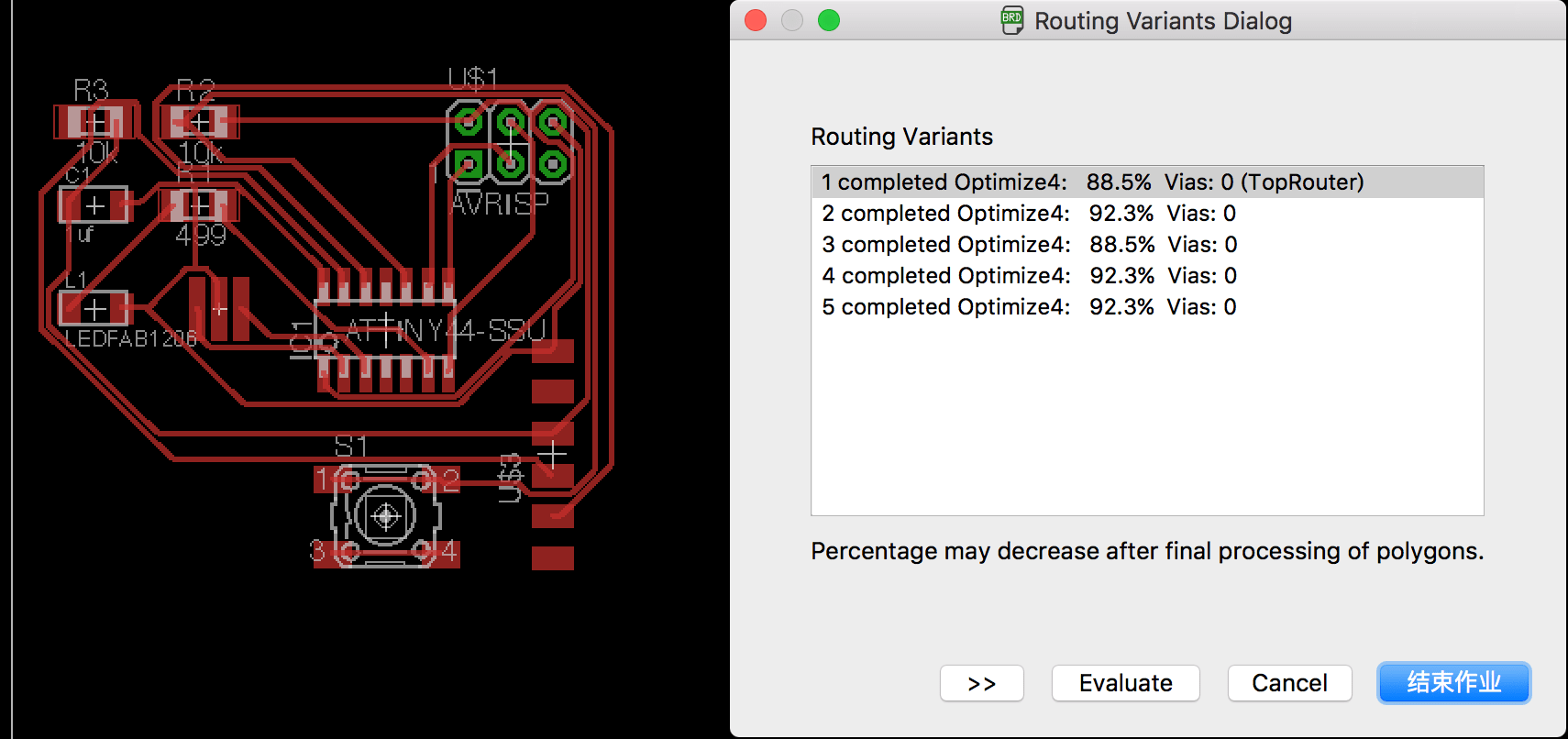

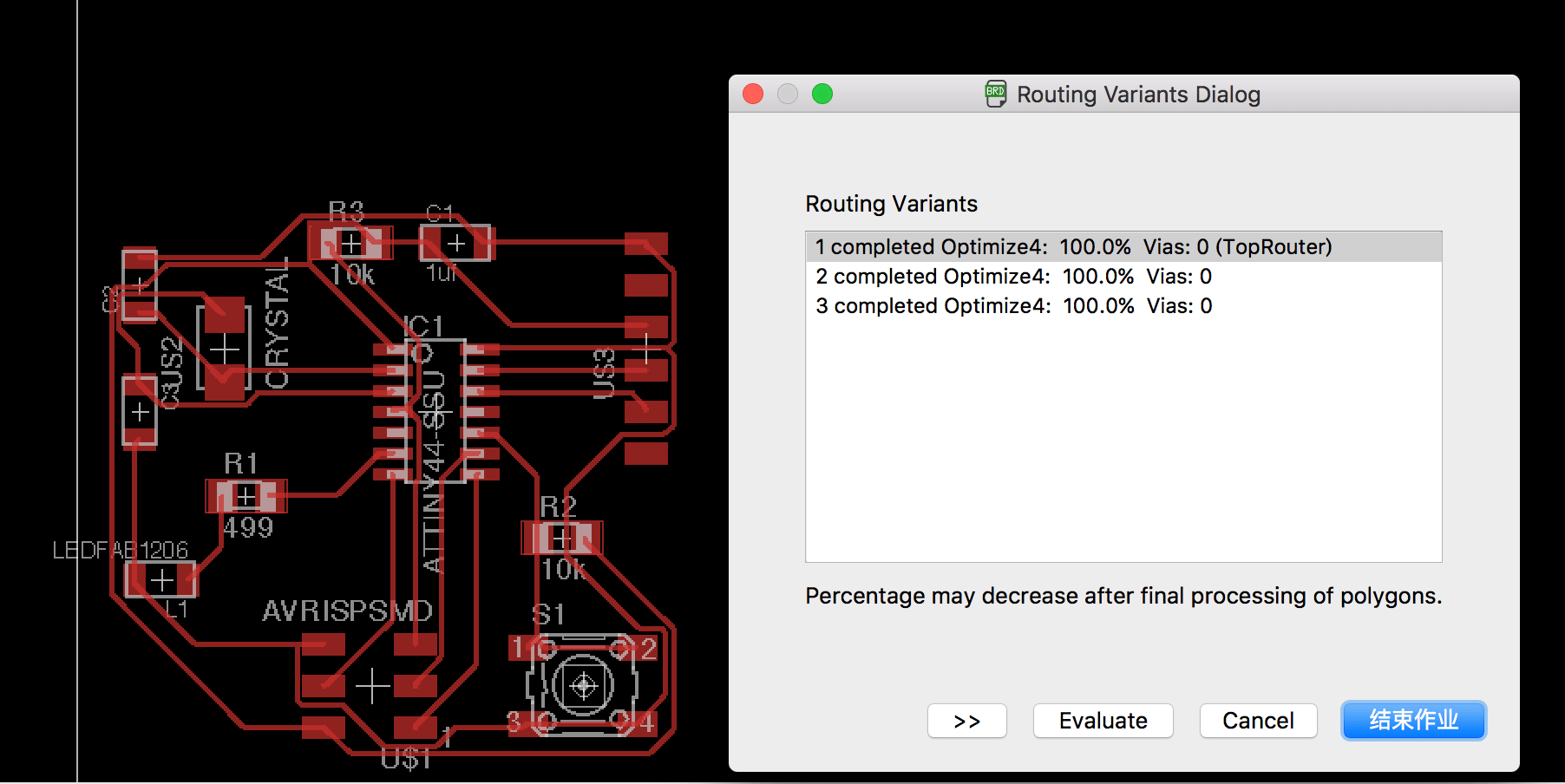

Aotorouter:

I try to use the "Tools >> Aotorouter" to ouput a png image but the circuits didn't very will.
So I have to darwing it by hand.

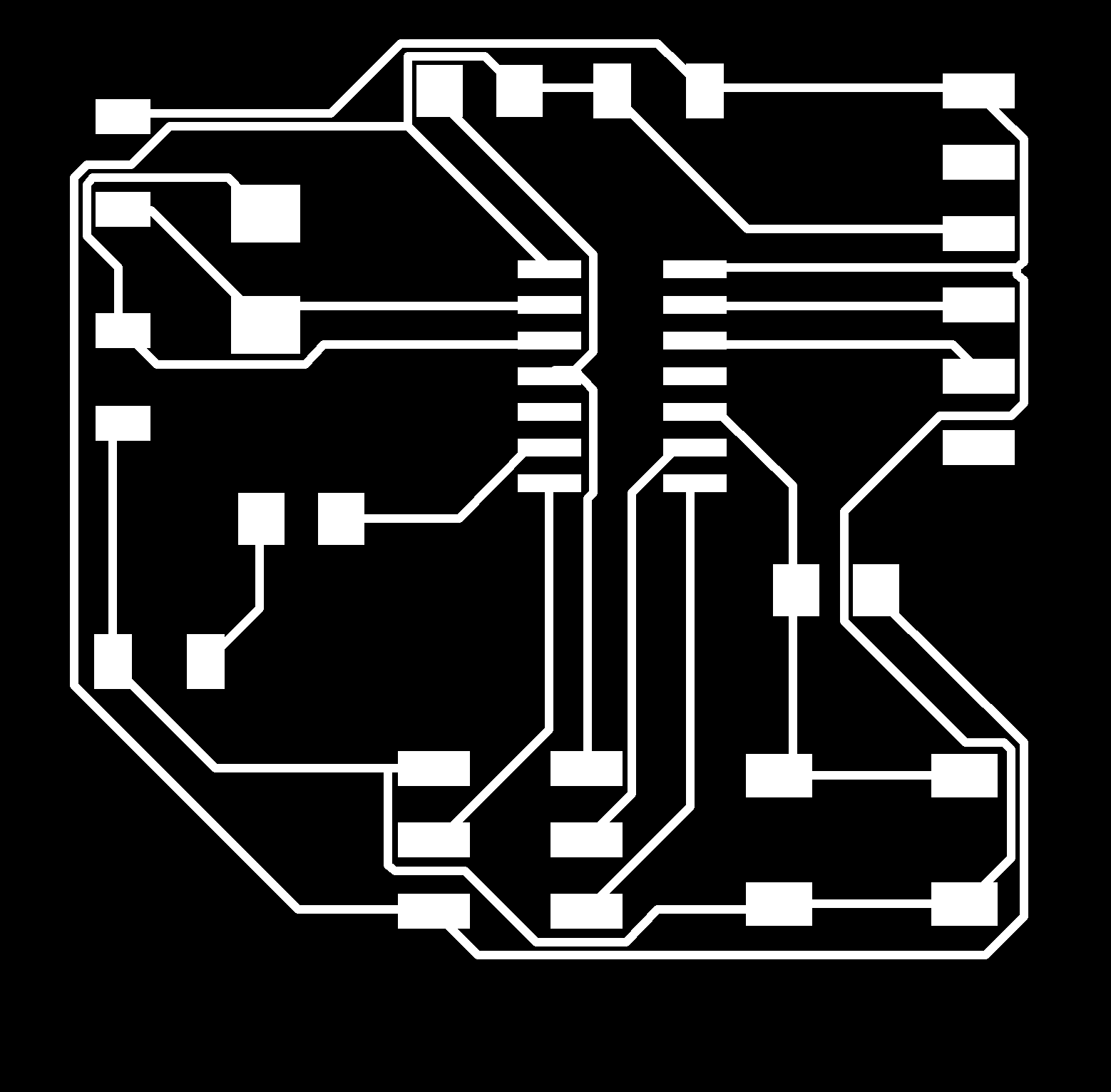

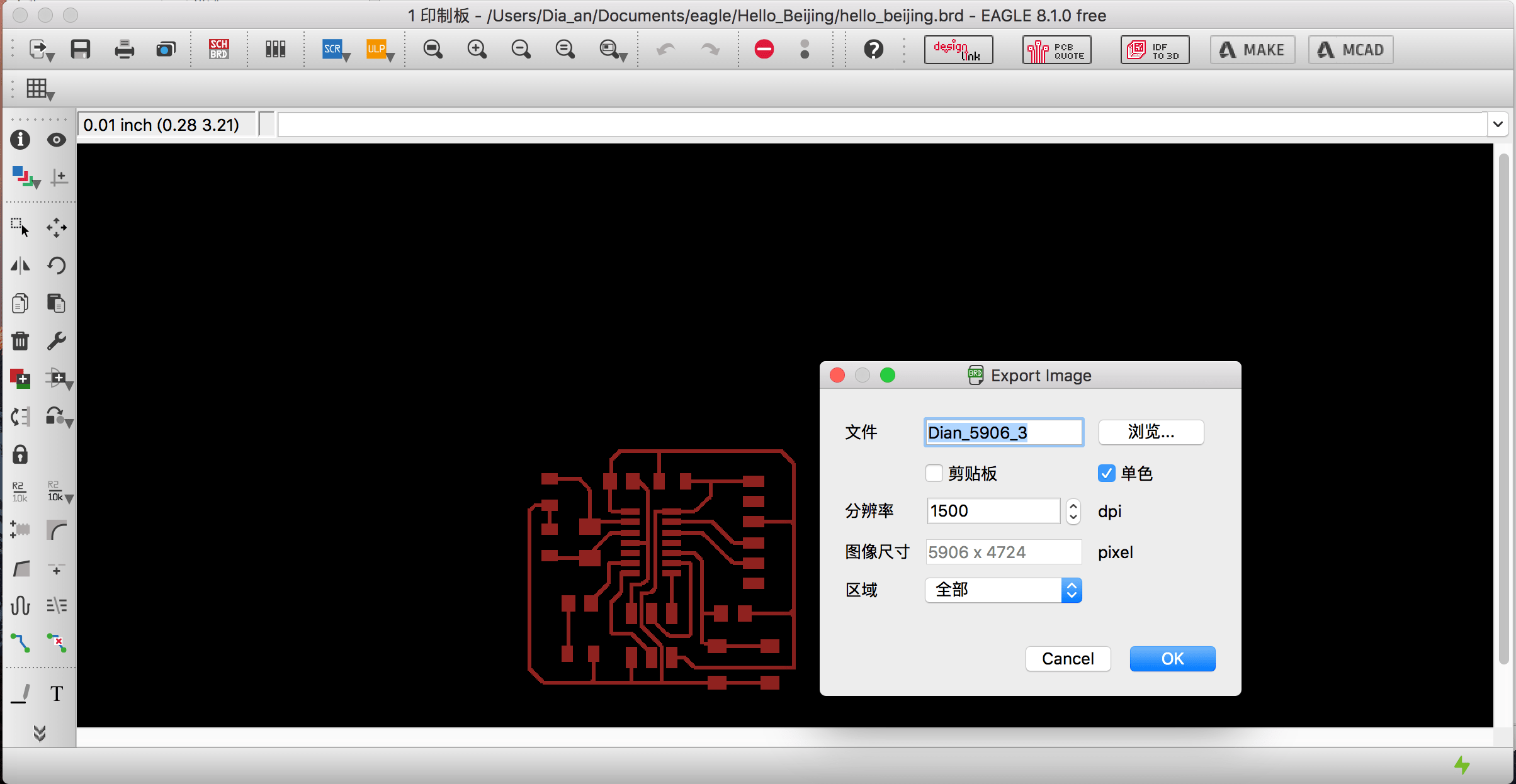

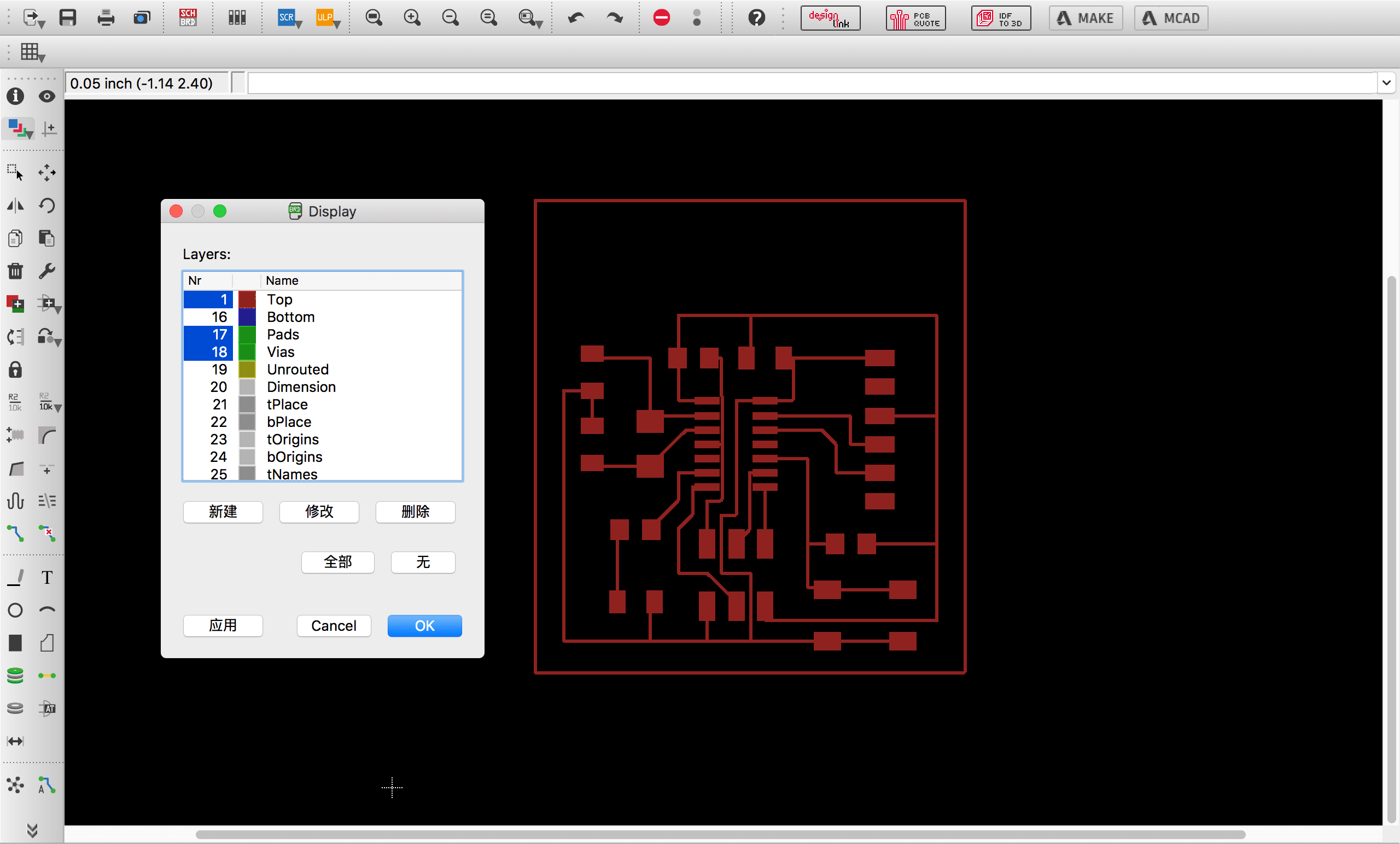

By hand:

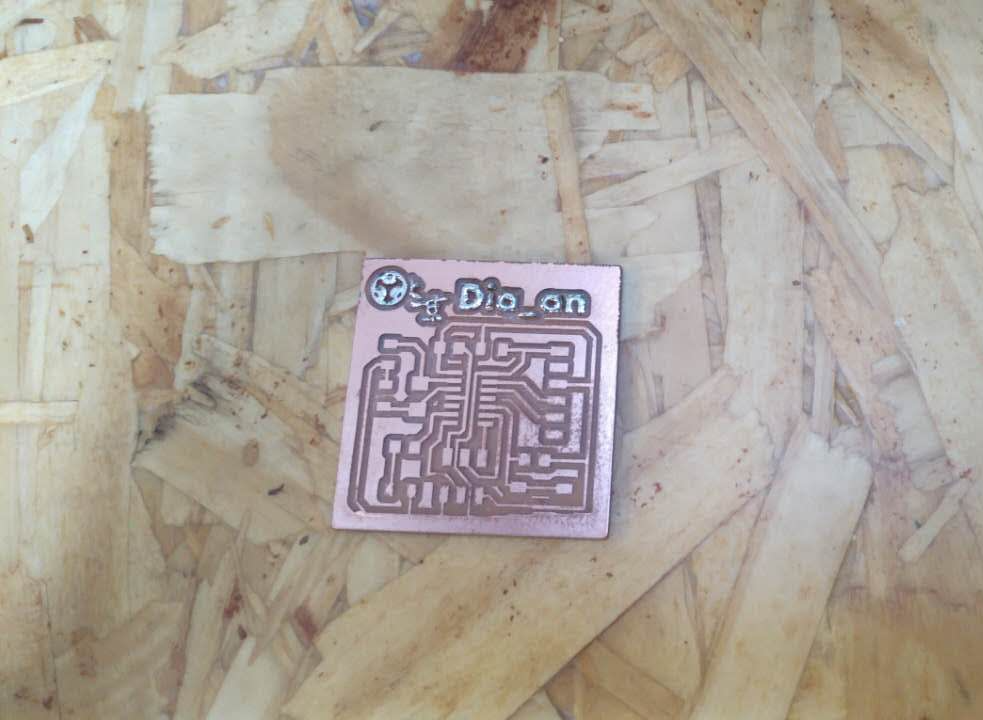

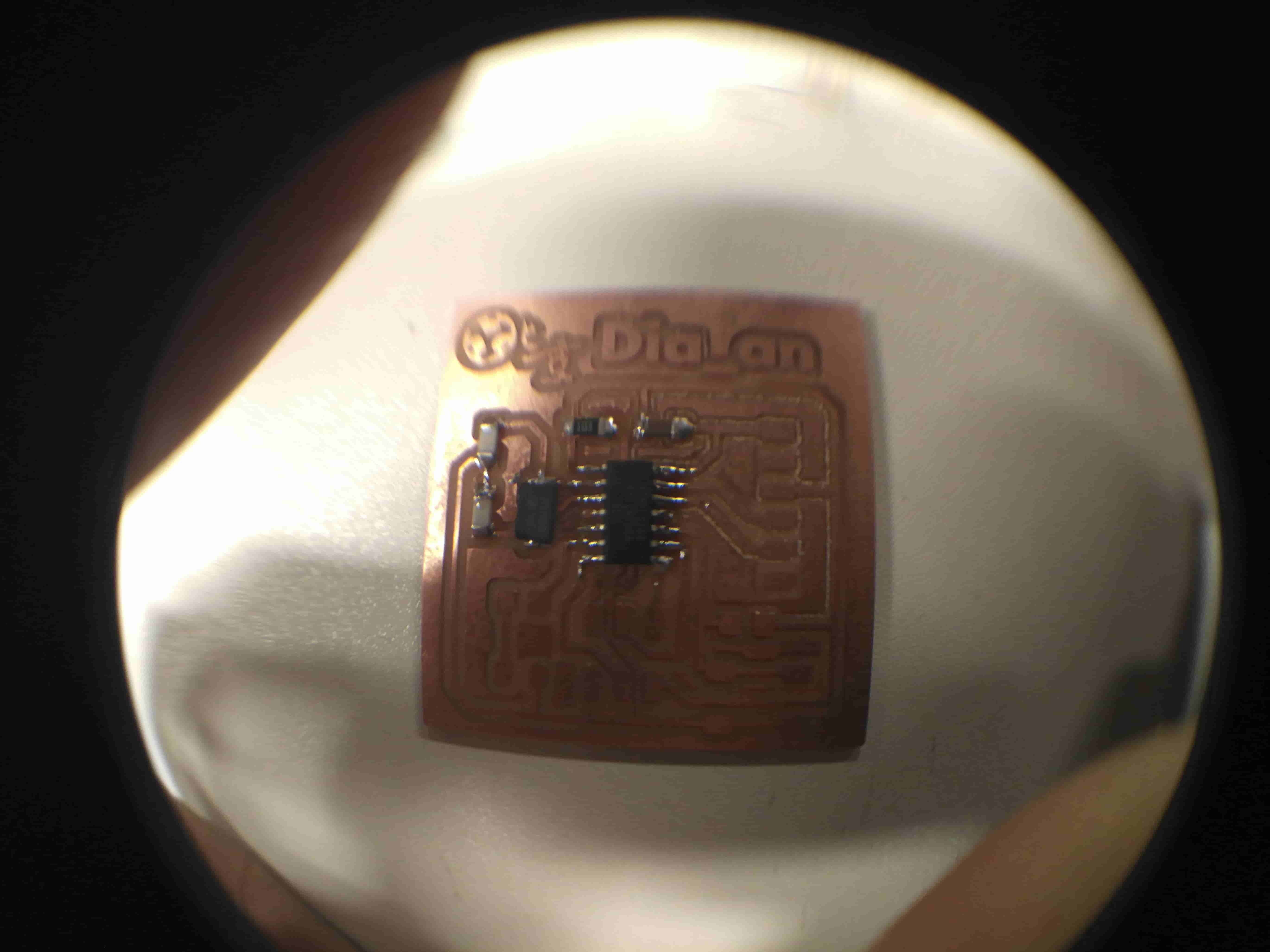

Milling the PCB & soldering

Fab-module

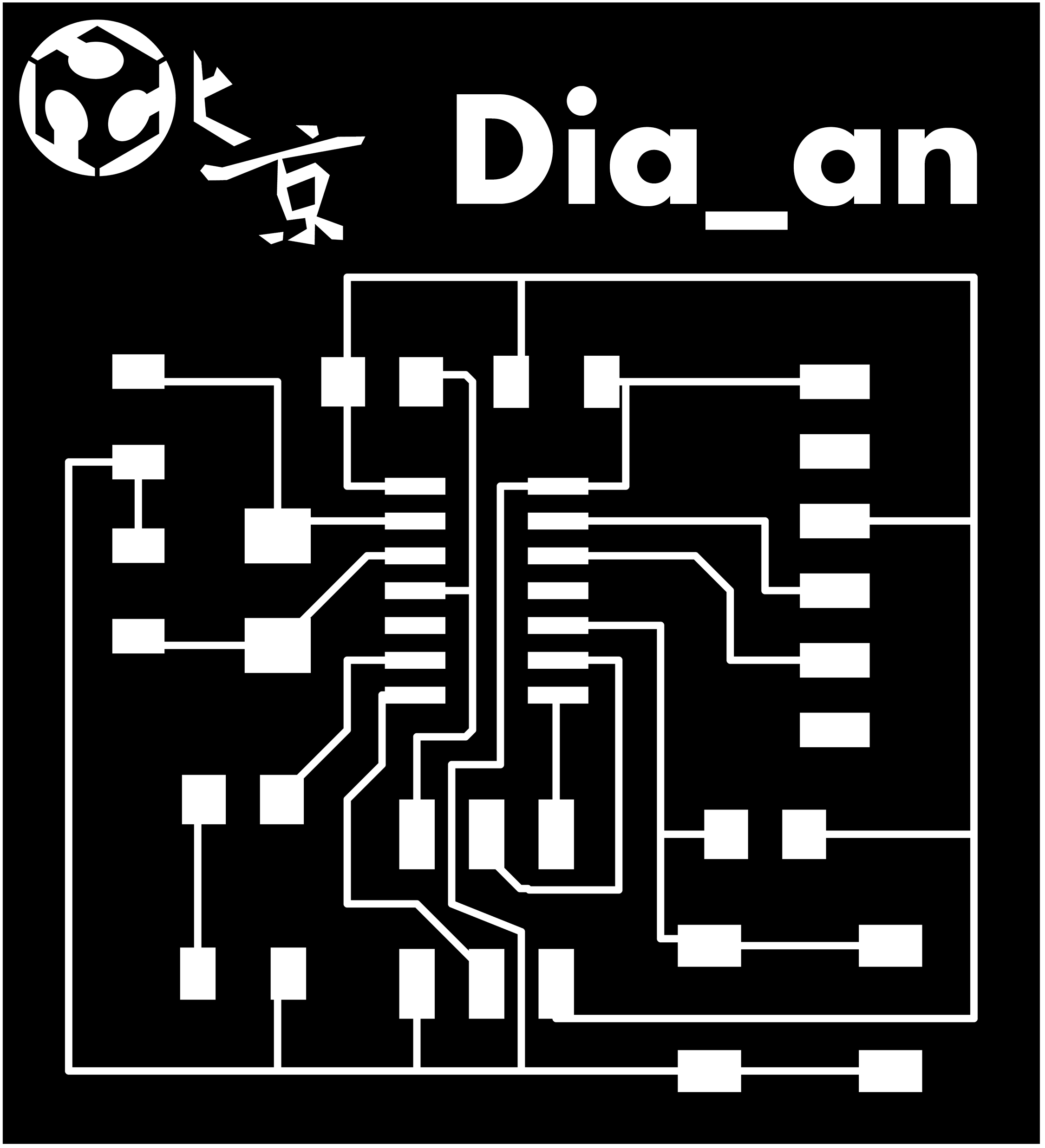

I PS our "Fablab Beijing Logo" on it.

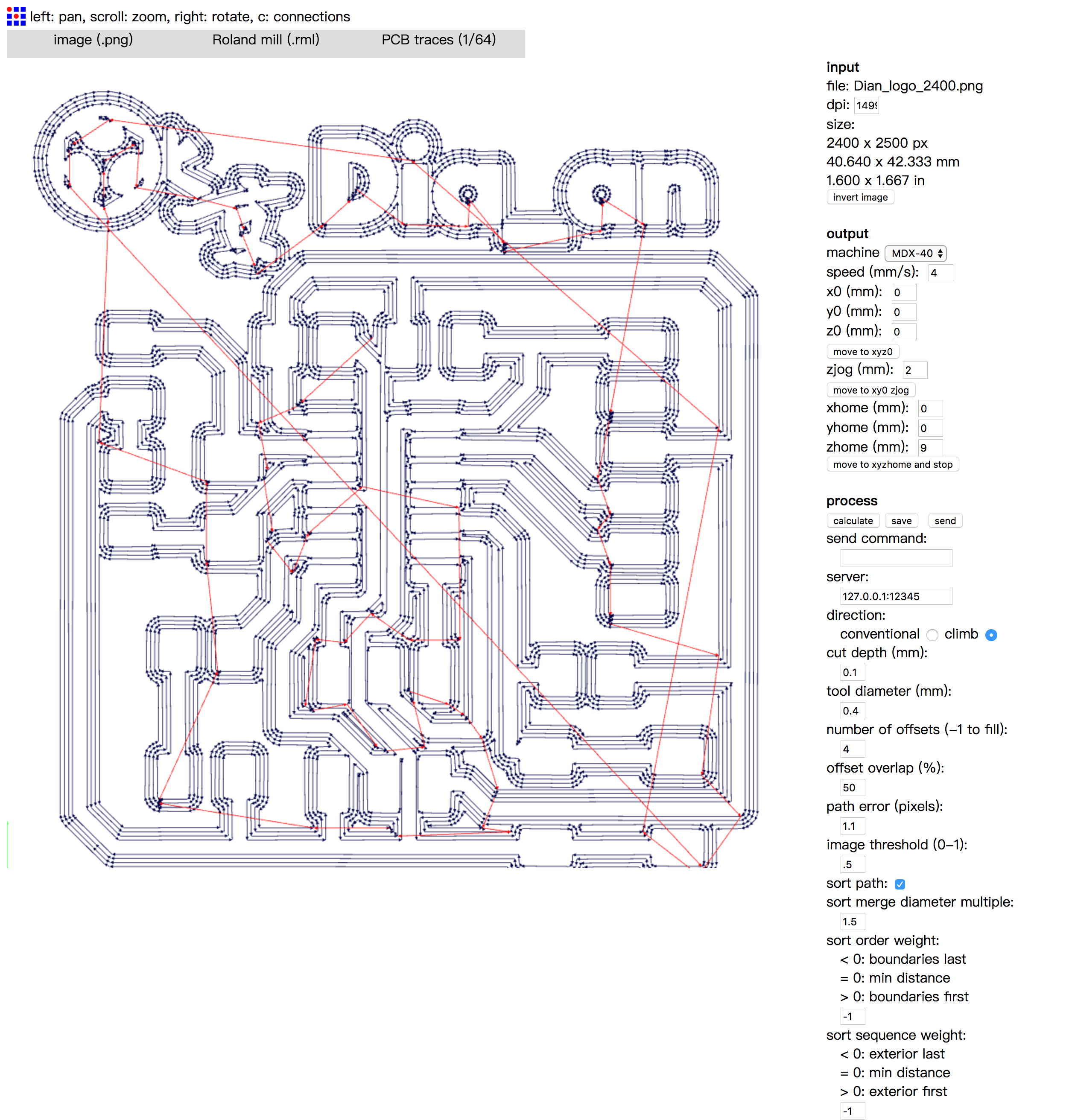

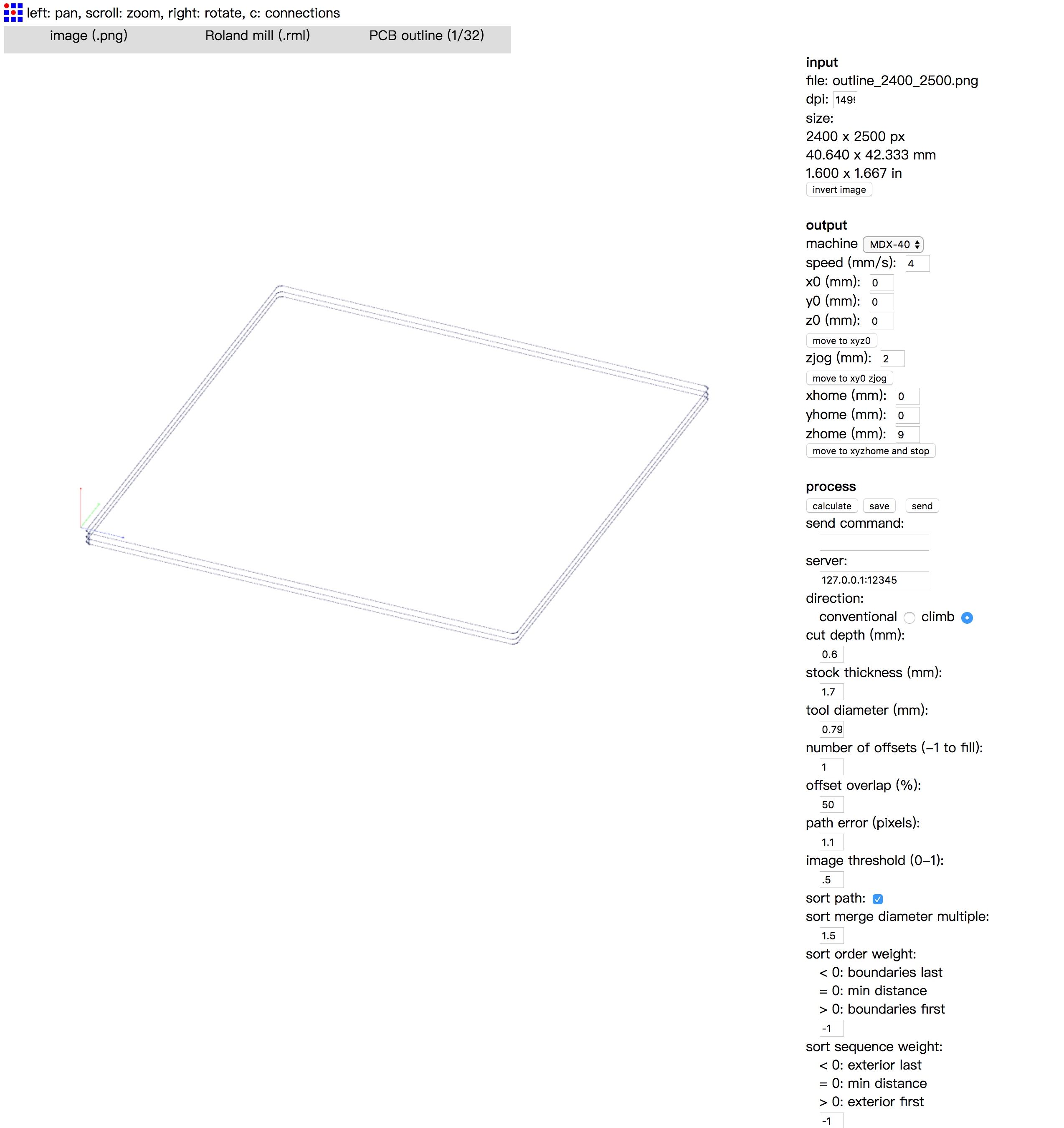

I used the Web version Here is my parameters setting below:

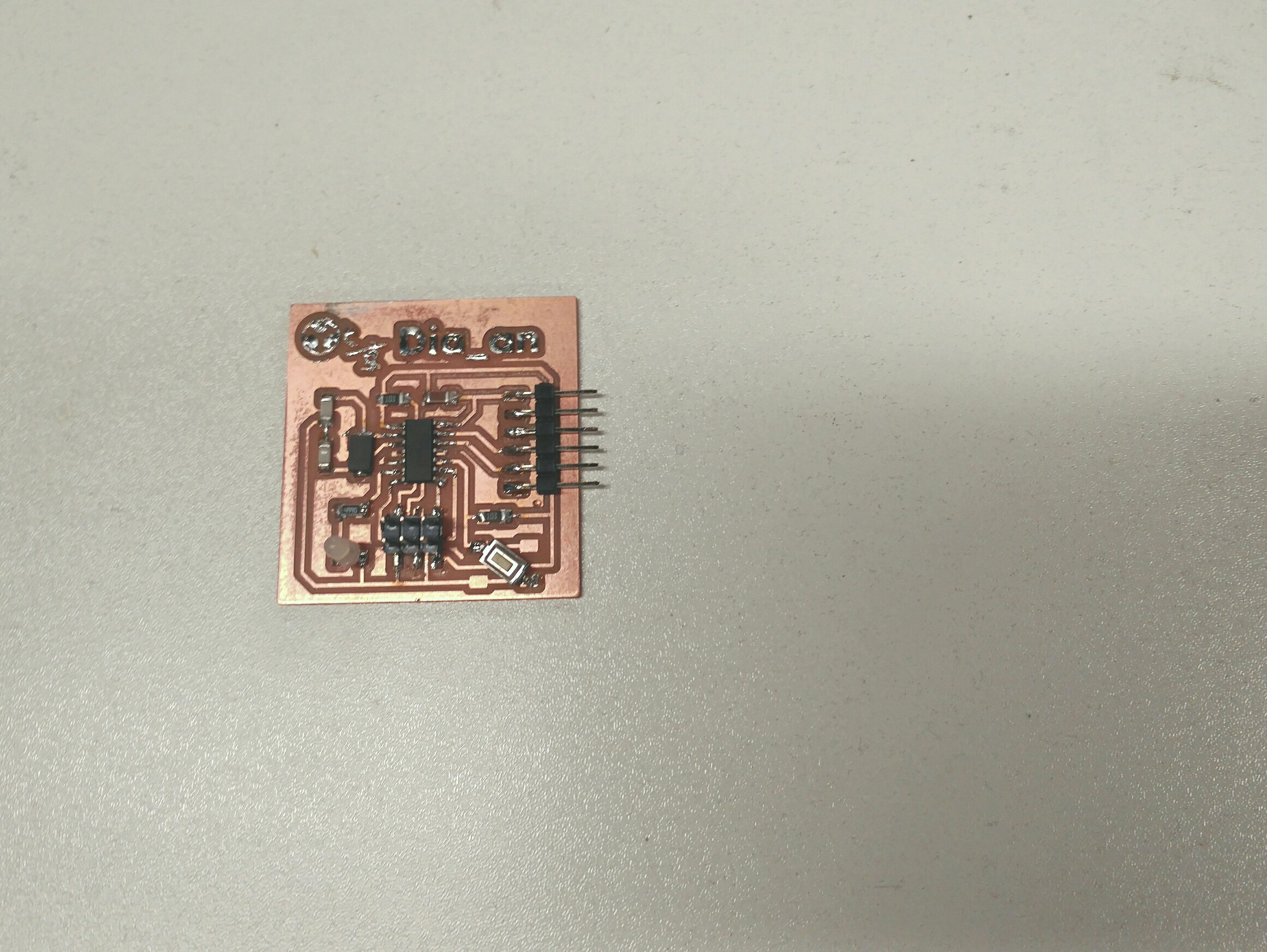

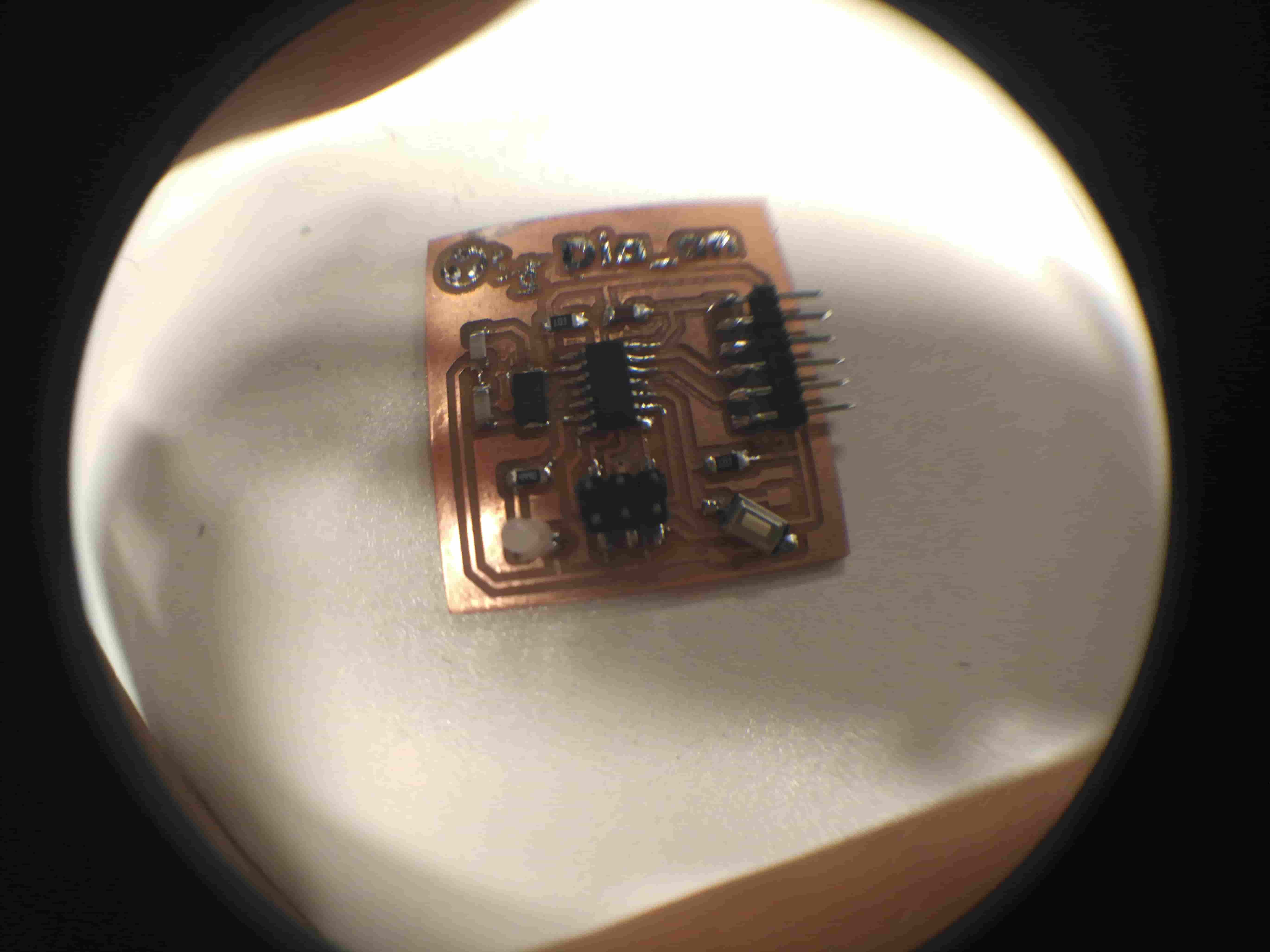

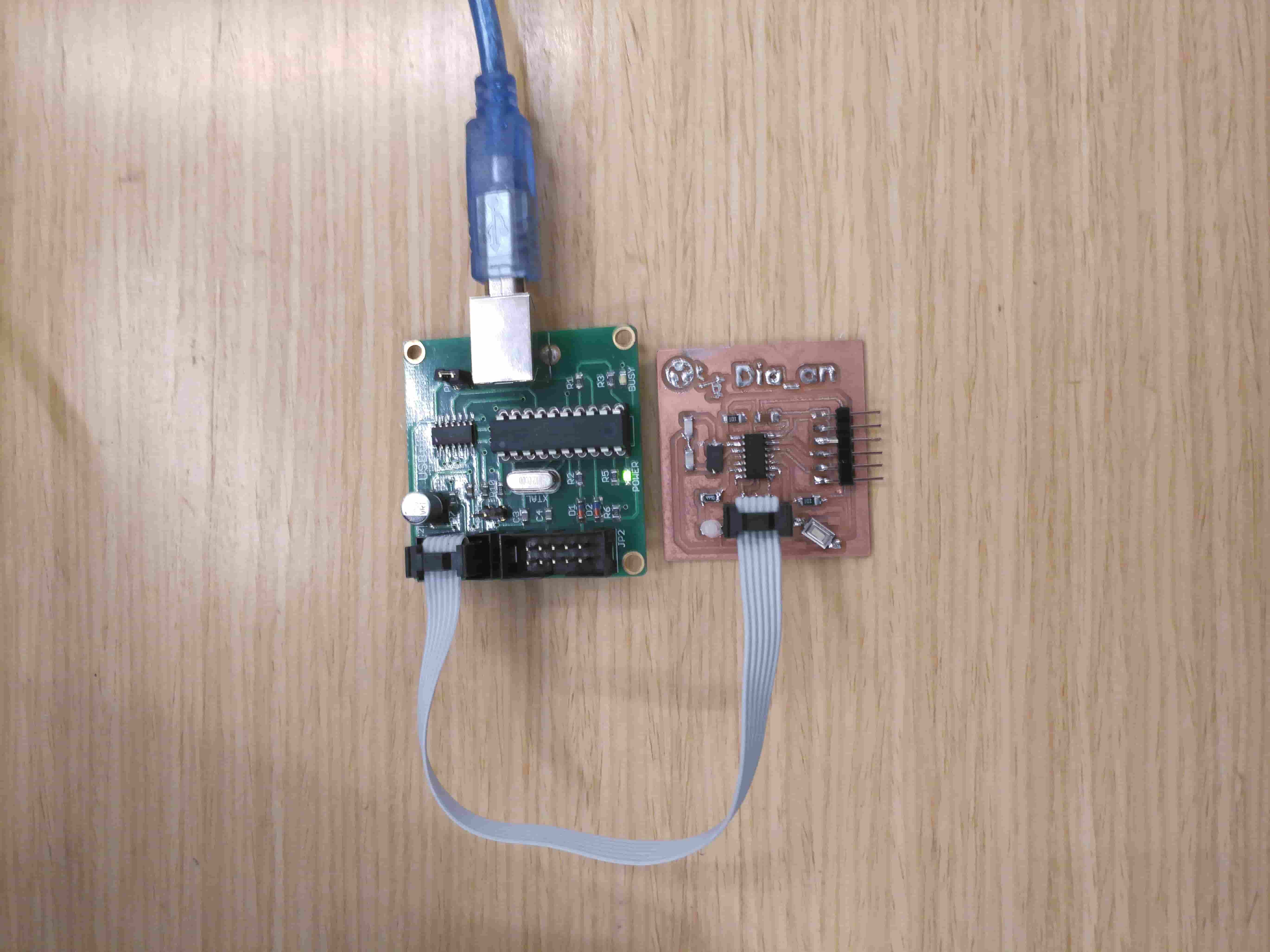

Soldering & Done!!!

Solder the Mini USB Header first .
Solder the micorcontroller second .
Solder the Crystal and capacitors .
Solder 1k resistor .
Solder two Diodes, attation please the diode has polarity.
Solder Jumpers .
Solder 6 pin programming header .
Solder button
Solder LEDs

Cutting files

list:

Dian_logo_2400.rml
outline_2400_2500.rml
