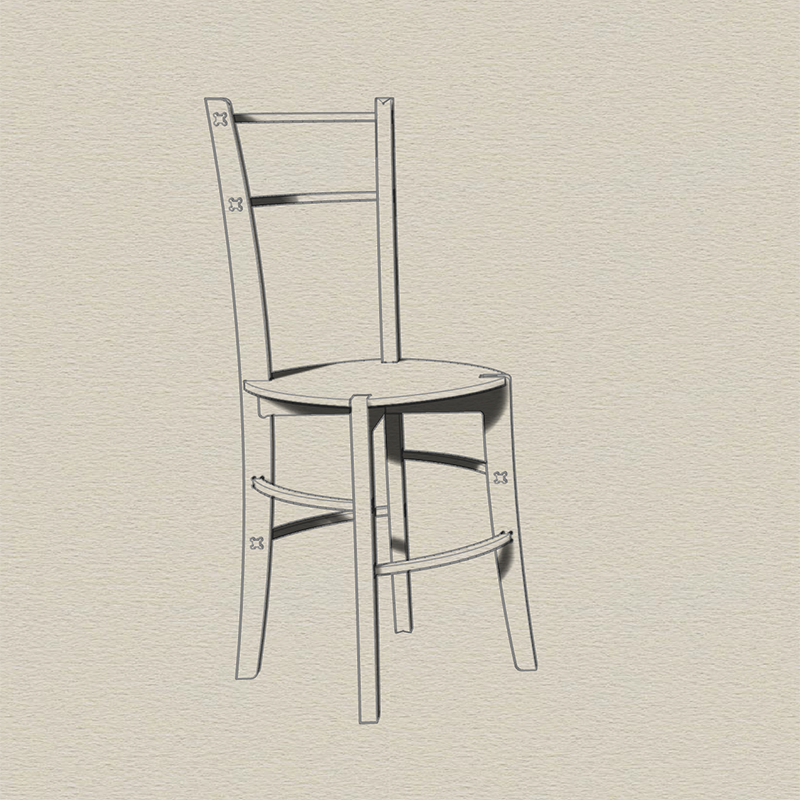

For this week assignment I want to produce a rigid cushion (actually a fake one) for the chair I produced in the week 7 assignment.

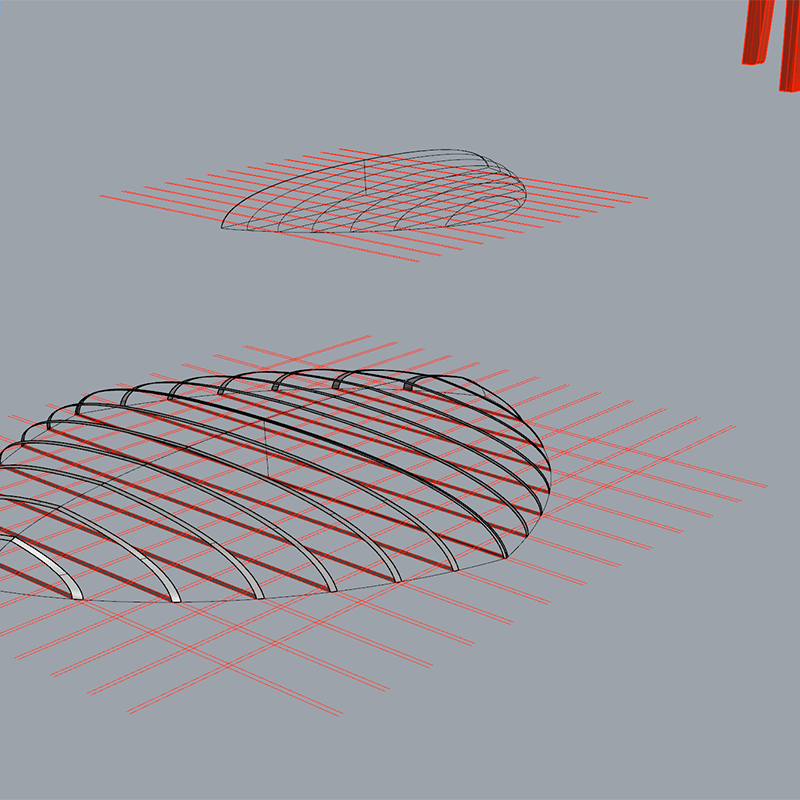

I started designing in Rhinoceros the 3D file, from which cut traces were obtained.

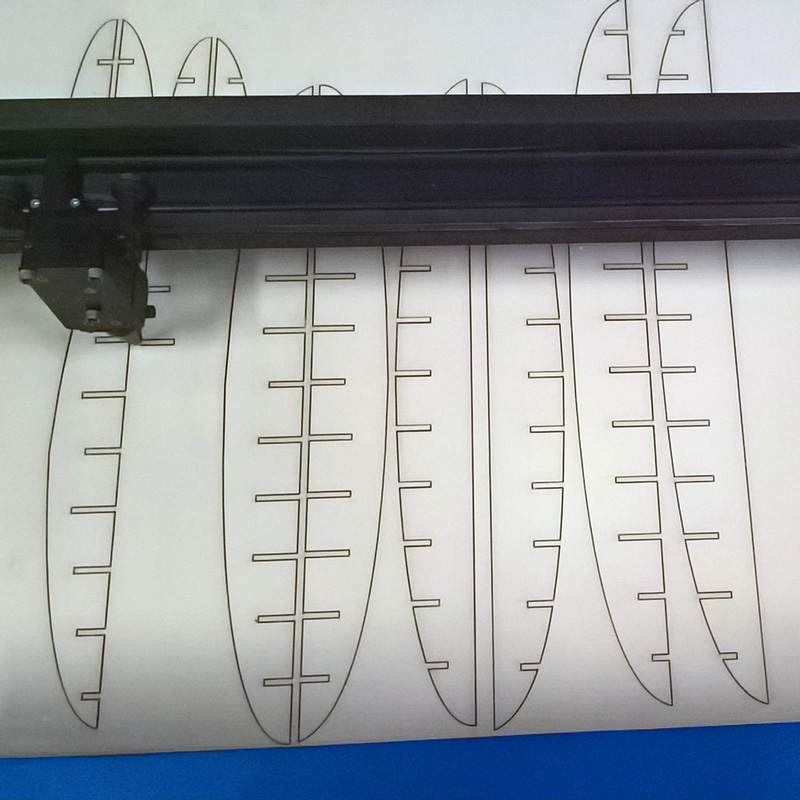

I lasercut 3mm paperboard for the mould structure.

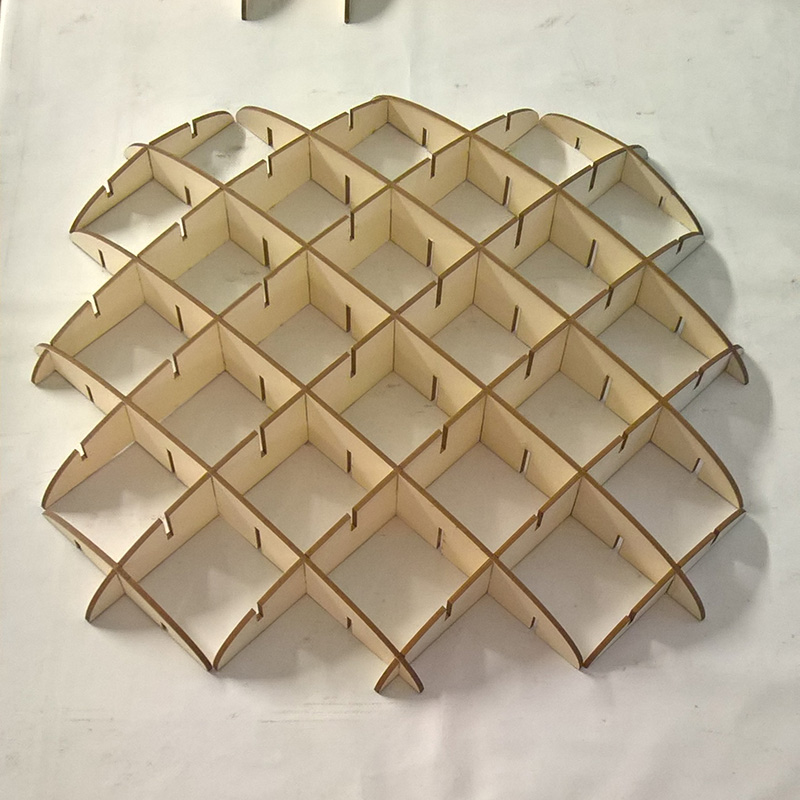

And than I built it. Half of designed pieces were enought for a solid structure.

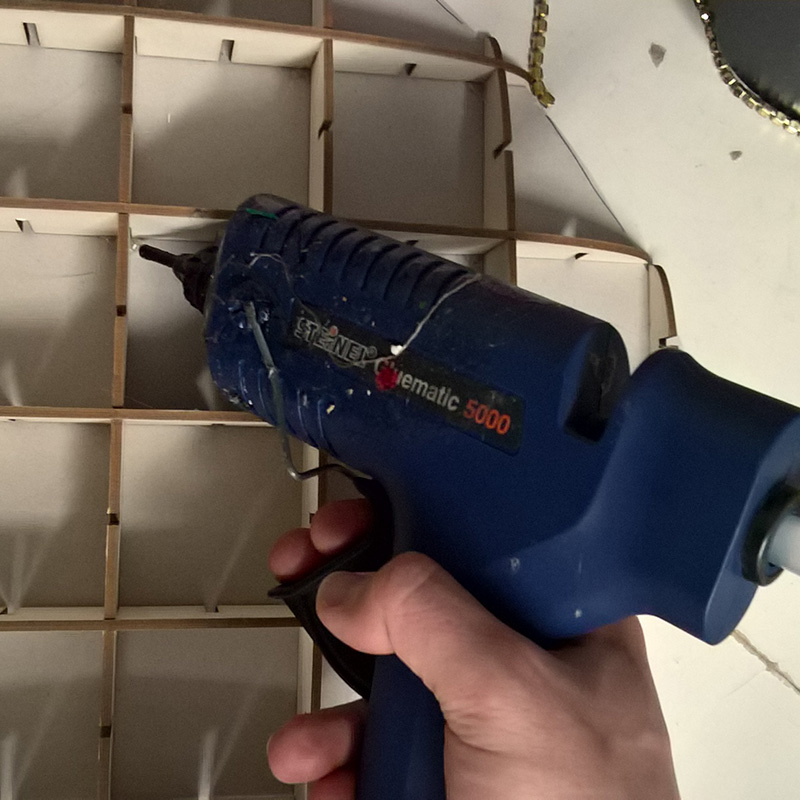

I glued it with hot glue to a paperboard base.

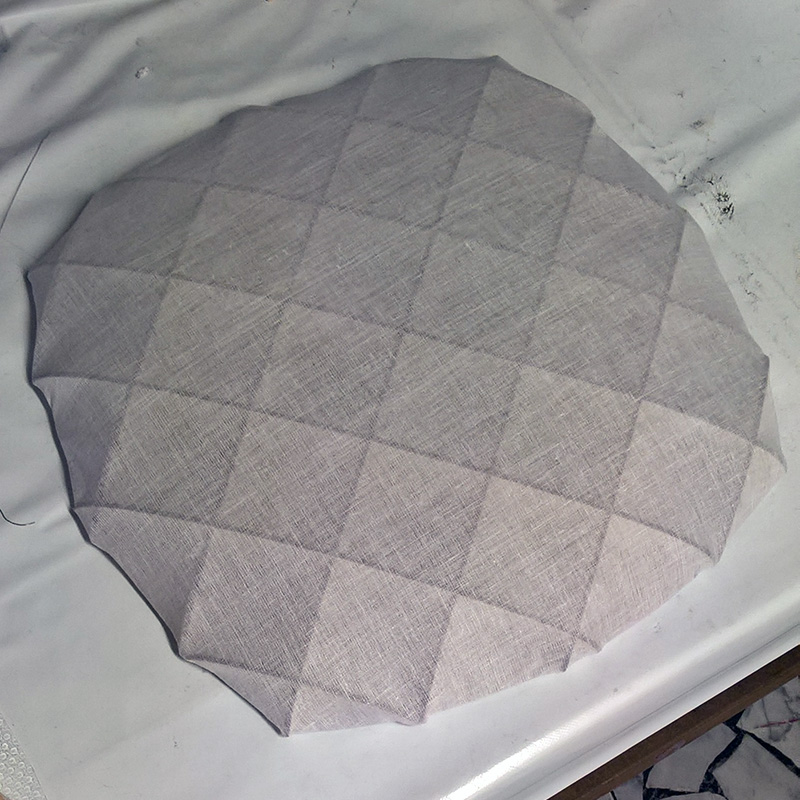

And than I covered it with linen fabric. It is taped to the bottom of the base.
I'm satisfied, the result is quite clean.

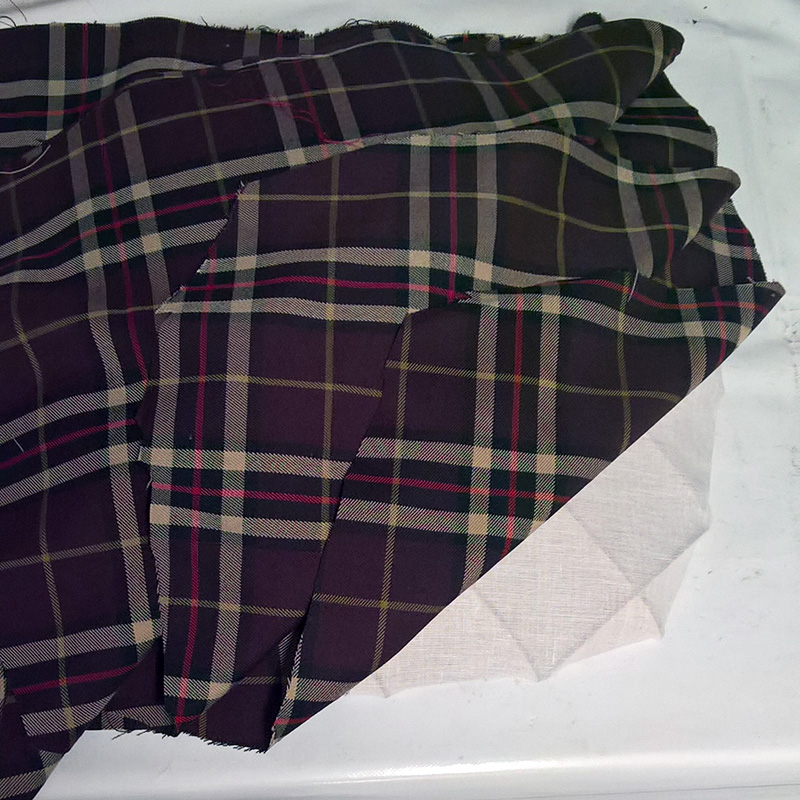

I chose some spare fabric pieces to produce the composite. I cutted 6 square pieces with the right dimension to fit the mould.

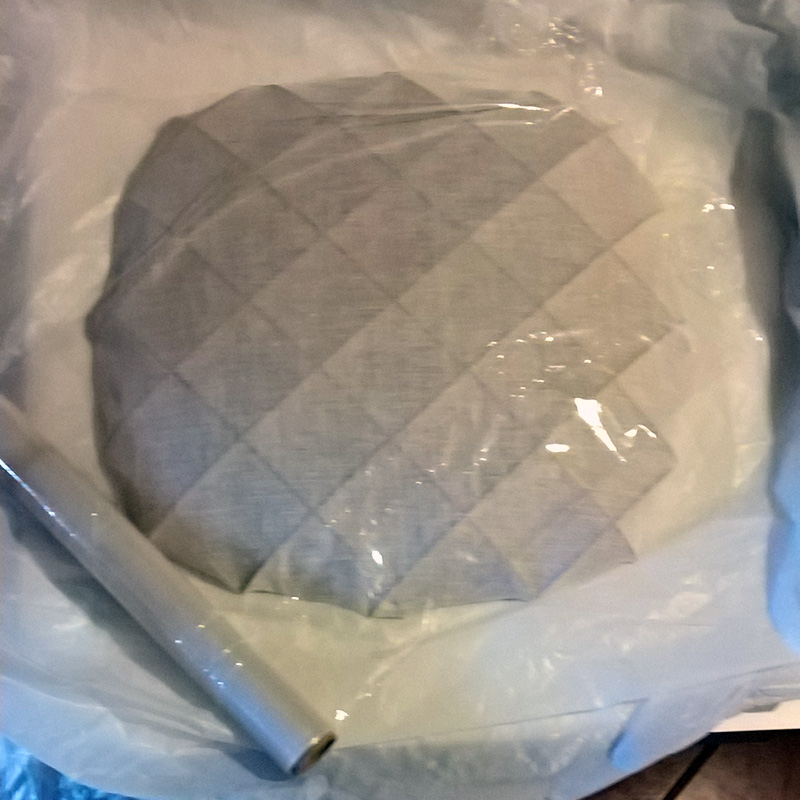

In order not to have the piece attached to the mould I used a plastic wrapping on the mould.
In the meanwhile I prepared the glue. I didn't want toxic or smelly products so I decided to use vinil glue. I mixed it with water (1/3 glue, 2/3 water).

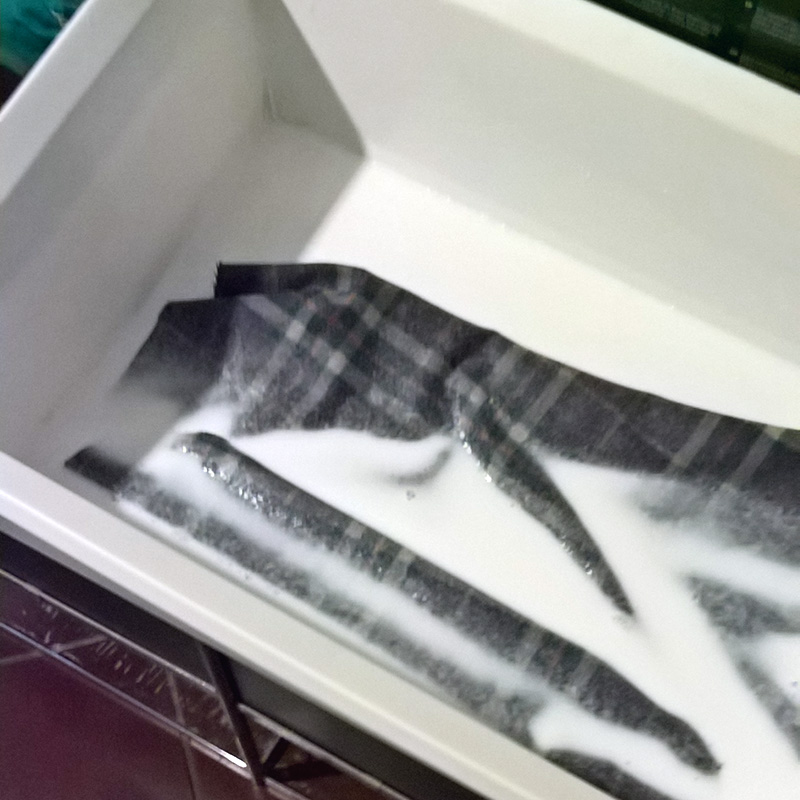

I dip the fabric in the blend trying to have glue well absorbed through fibers.

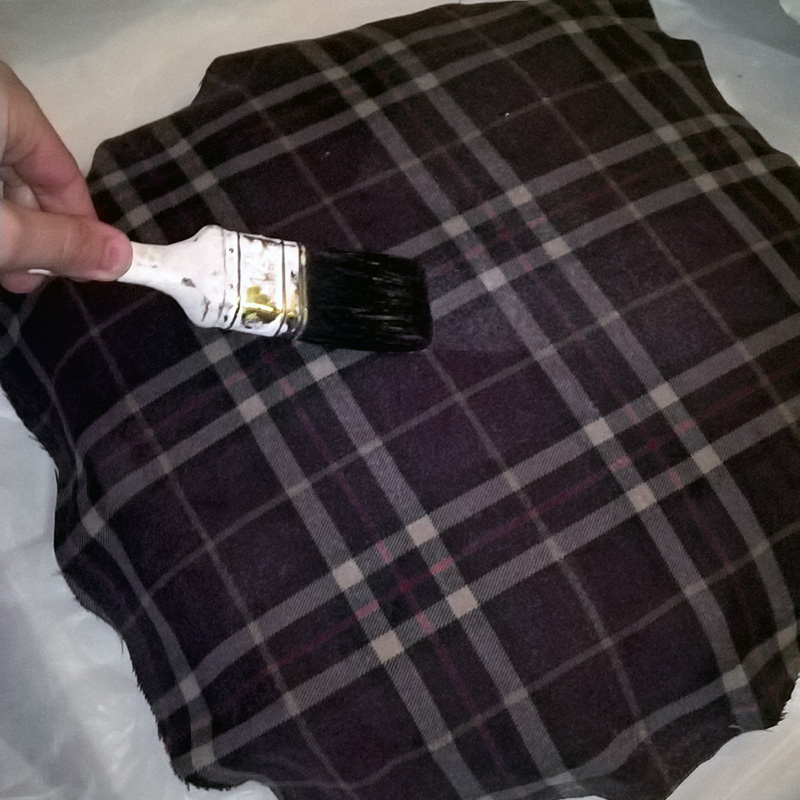

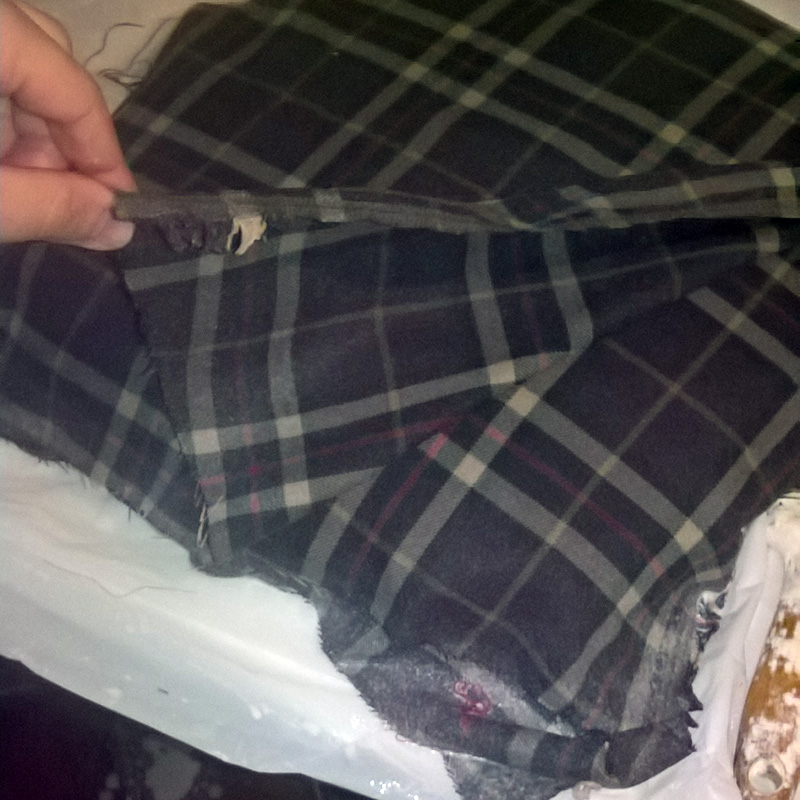

I than lay down the fabric on the waterproof mould and flatten it carefully with a brush.
I went on with all 6 layers...

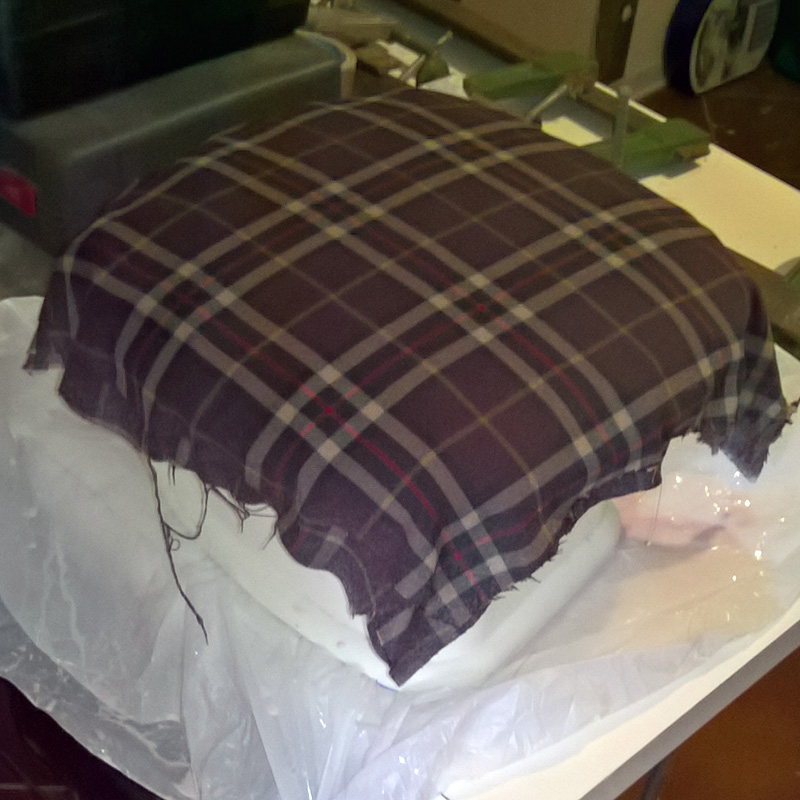

...and put the piece over a fan waiting it to dry up.

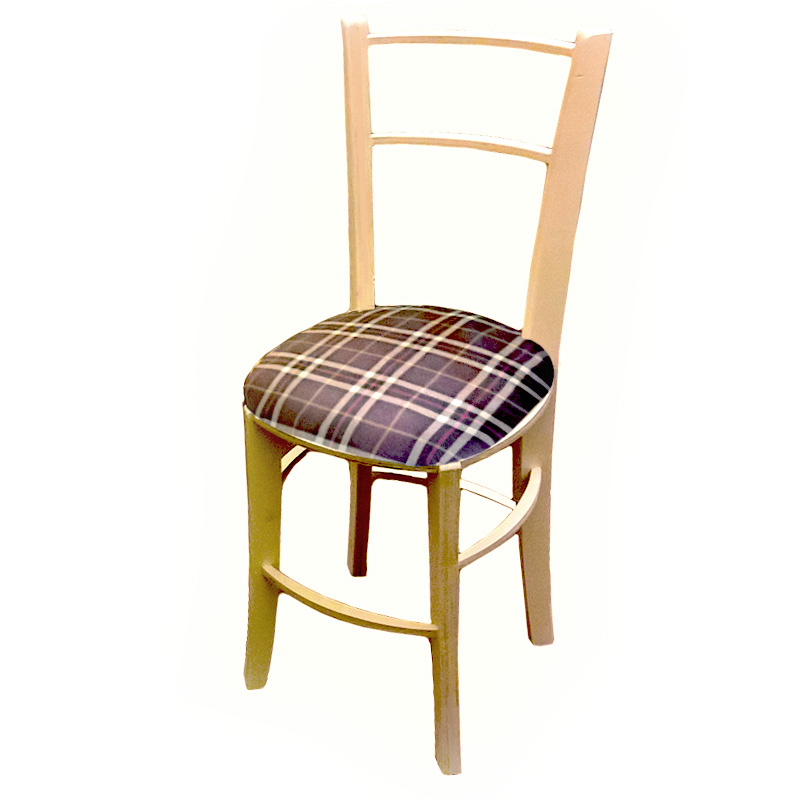

Here is an image of the chair completed.
