NETWORKING AND COMMUNICATIONS
ESP-03

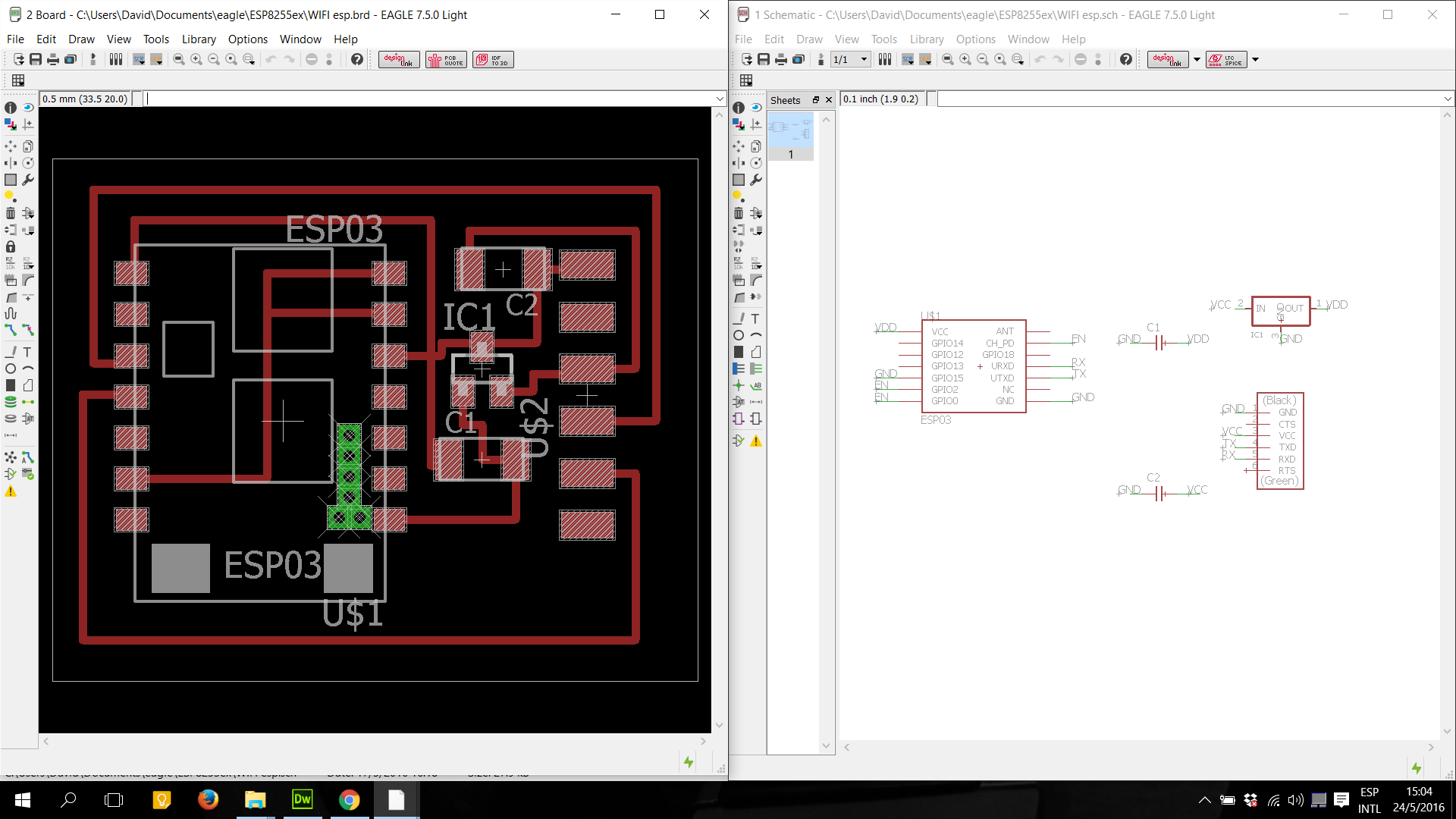

1. PCB design to control wifi module
2. Weld components.
the module ESP-03 does not work as it was burne, I'm testing the module ESP-01

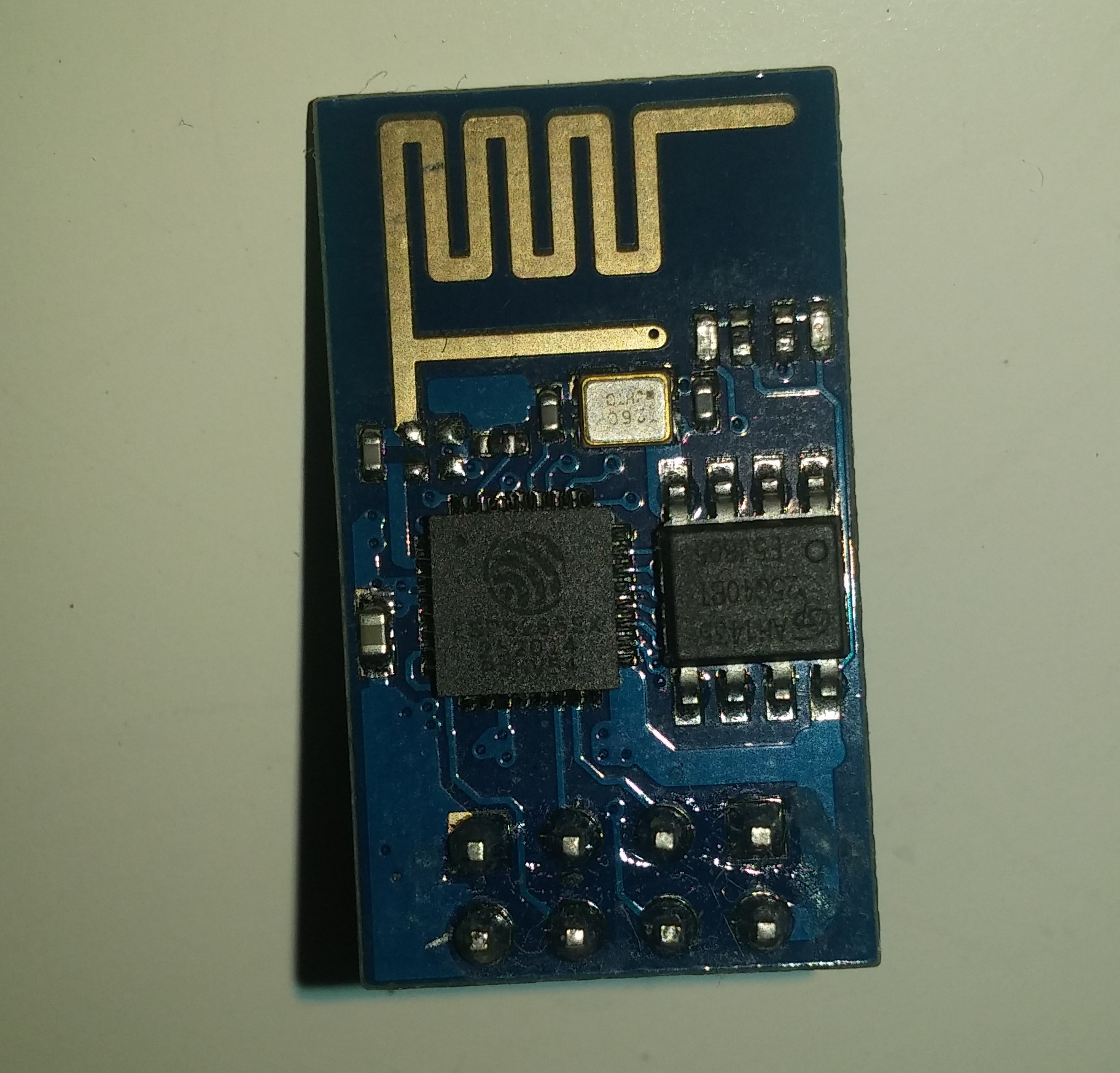

ESP-01
All information contained in this page I obtained from rogerbit.com
This module only has 2 pins that can work as input or output.

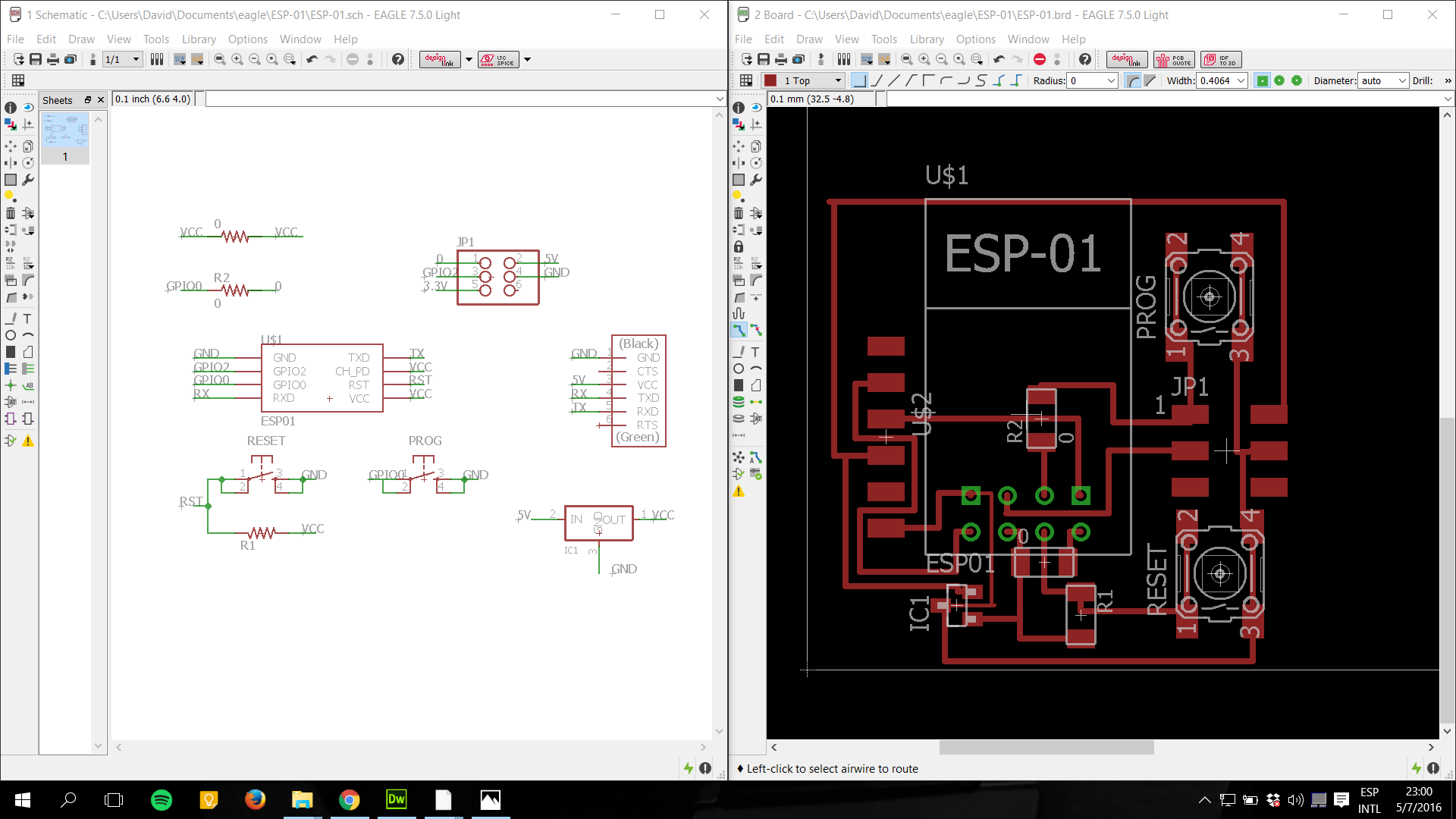

1. PCB design to control wifi module.
All the information shown below was obtained from: rogerbit.com

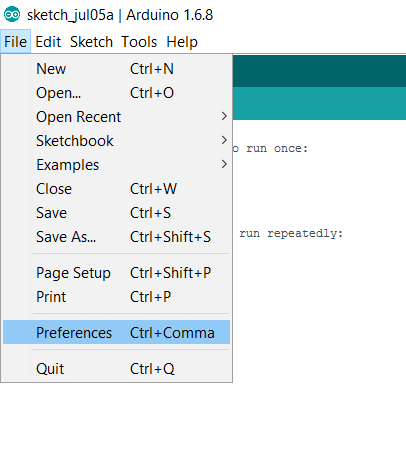

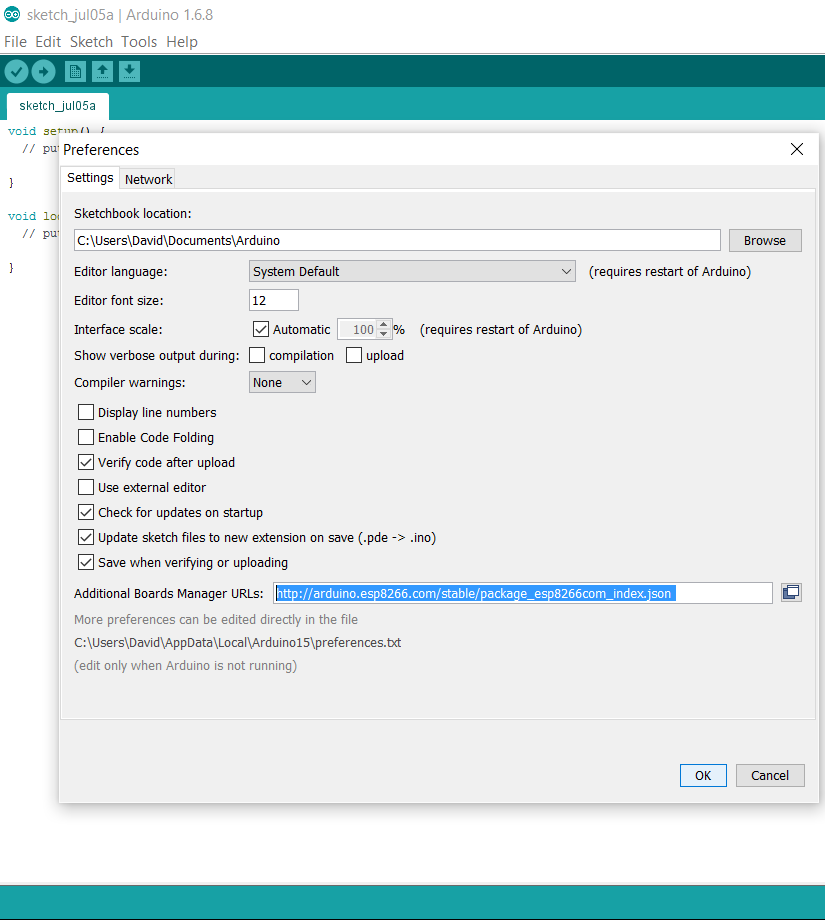

2. Download files operating with Arduino: Open Arduino, click File and click Freferences
3.Copy URL:
http://arduino.esp8266.com/stable/package_esp8266com_index.json
paste in Additional Boards Manager URLs and click ok.

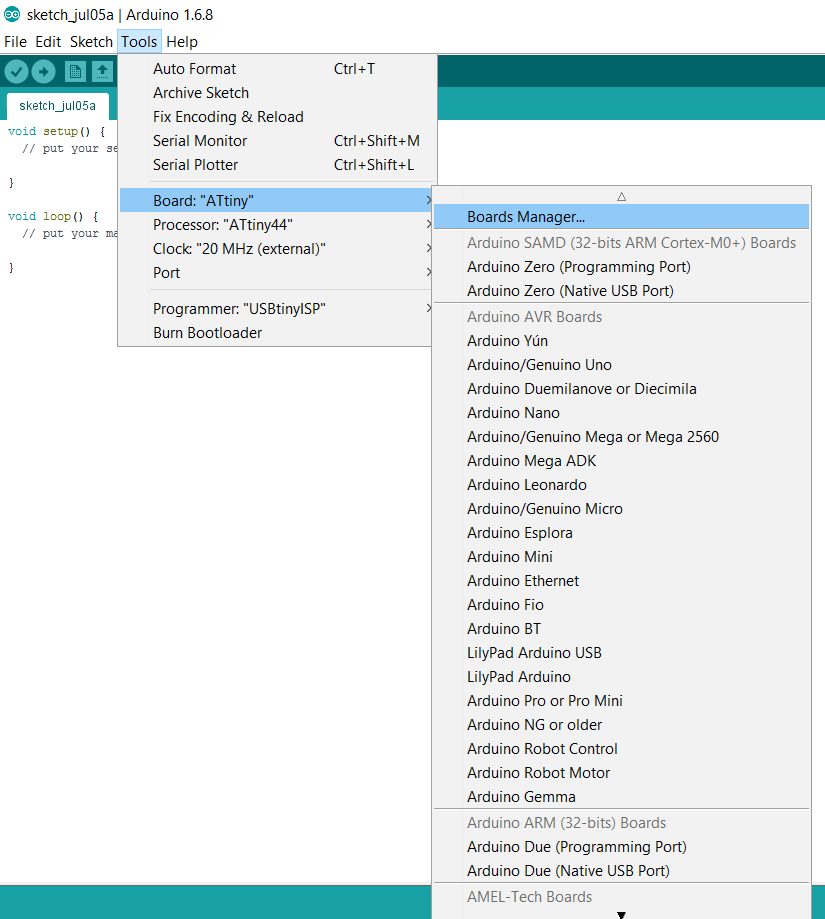

3. Click Tool, go to Board and click Boards Manager.

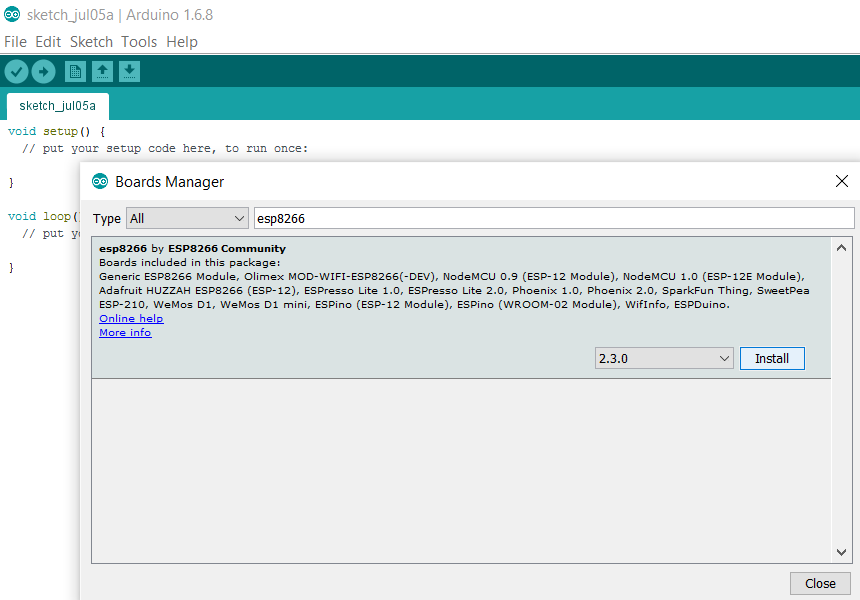

4. We do a search: ESP8266. Install and close

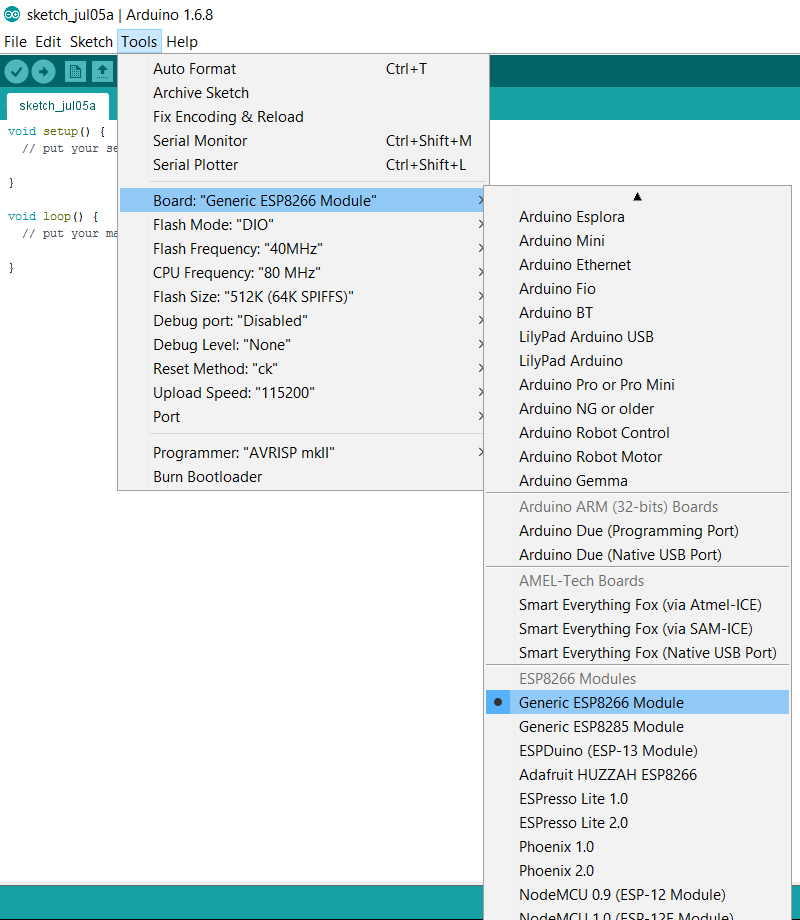

5. Go to Herramientas and select Board: Generic ESP8266 module.

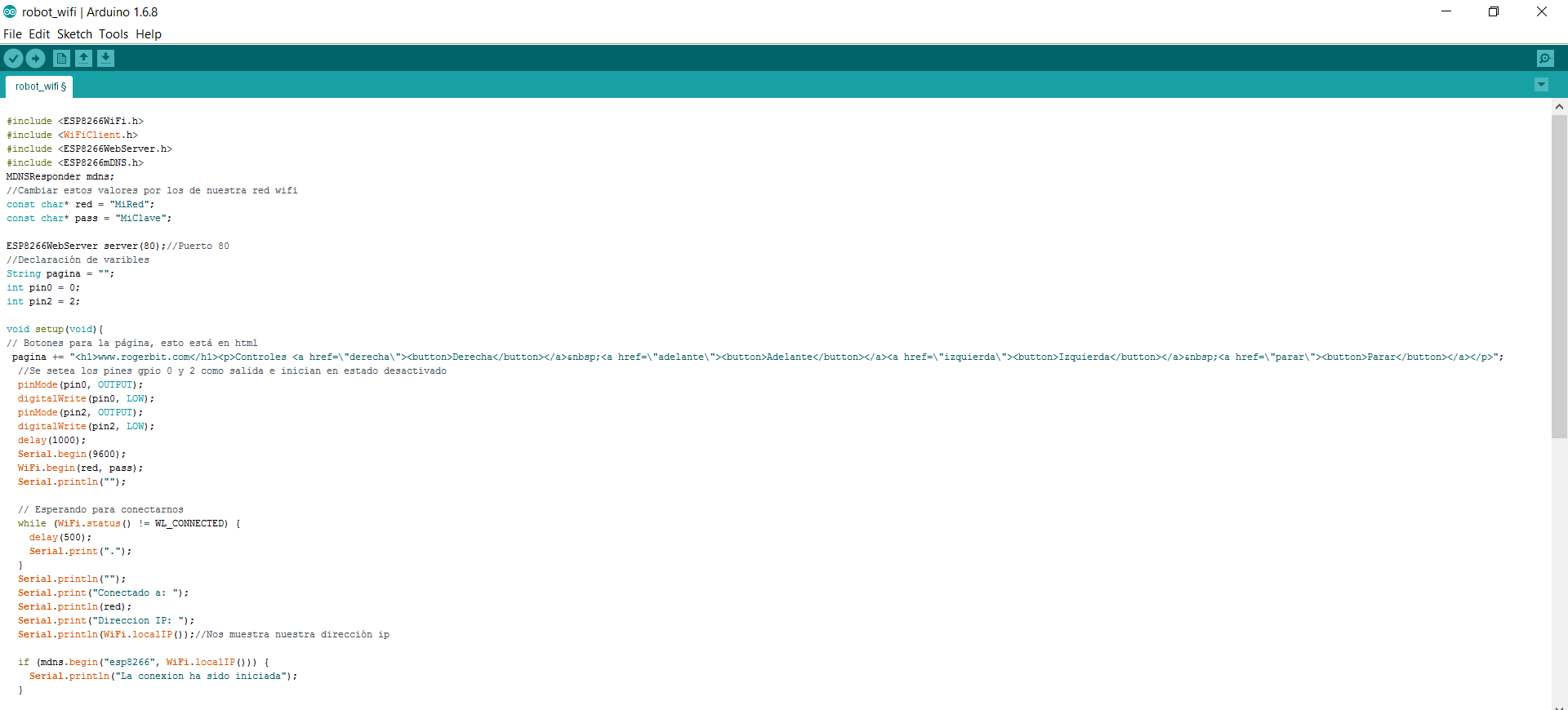

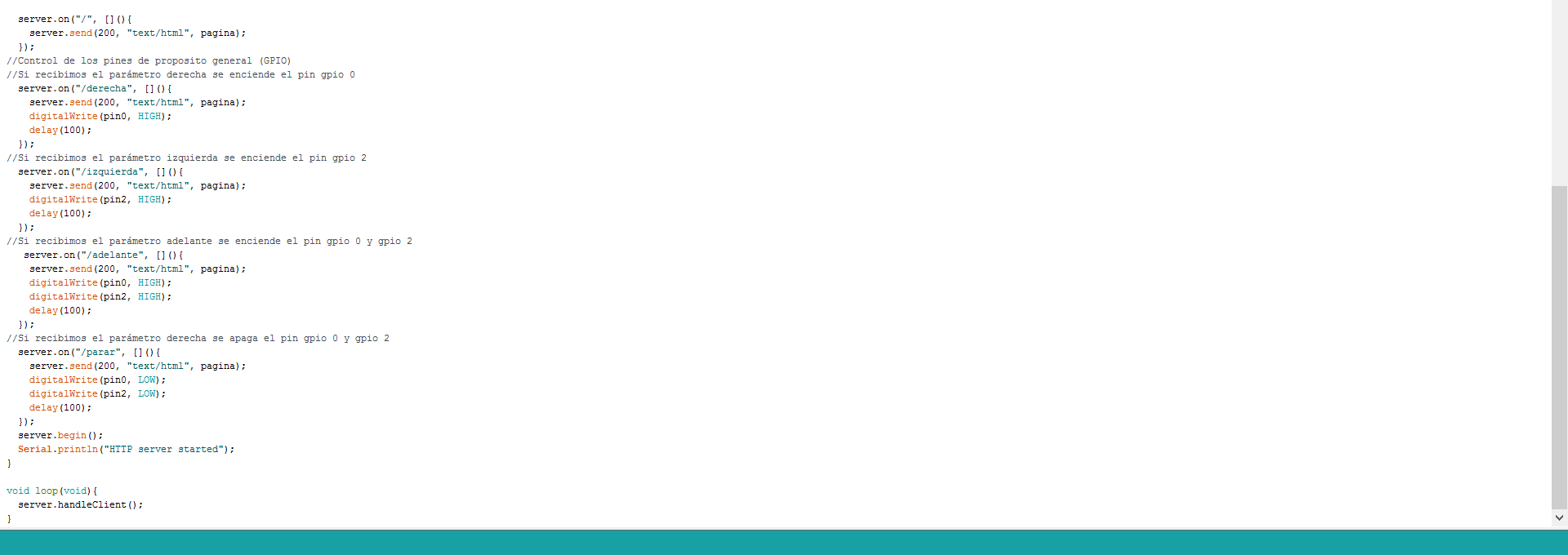

3. Programming (consider your IP )
open the images in a new tab
4. Upload
5. Download the application for Android here
6. Answers your phone to the wireless network and open the application
7.Have fun testing this module.
