I have used solid works and Corel Draw to demonstrate the the design and the cutting out of the Snap fit BOX

I have designed the Box in solid works and then made a DXF file ,to then open in Corel Draw to Cut on the lazer Cutter.

I chose to cut my Snap fit box on a 3mm Plywood.

Using the Epilog Lazer Cutter

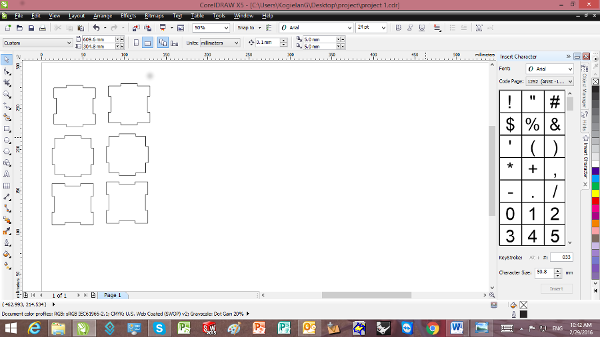

Drawing design, DXF file imported into coreldraw.

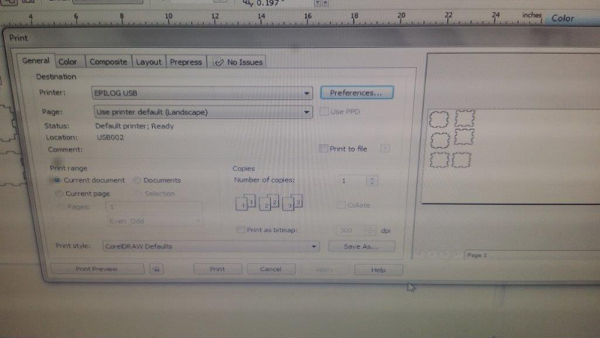

Selecting the Epilog Lazer cutter to cut box

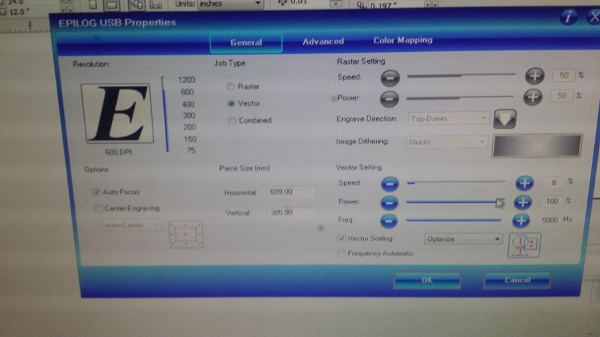

Selecting settings for lazer cutting

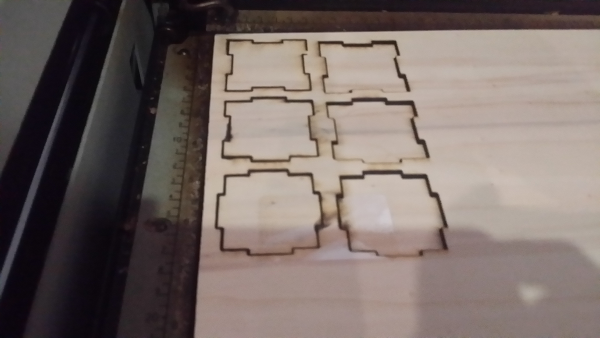

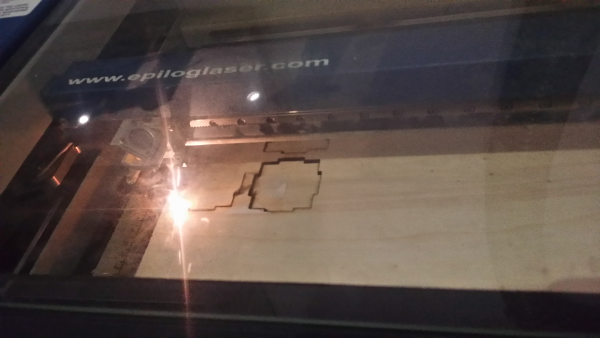

Lazer cutting on 3mm plywood

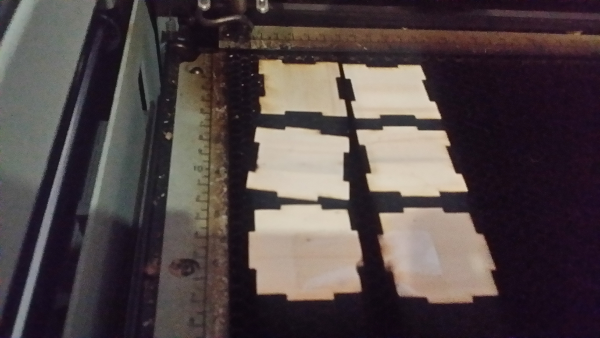

Pieces all cut out

All ready for Assembly

The final product , my Snap fit Box, Perfect

Using the Vynl cutter

Using the Vynl cutter , I have used Corel Draw. I brought in an immage from a picture and then locked the picture. I started to create the picture into vectors and then staretd to cut it out from the Vynl cutter

Downloding an image file

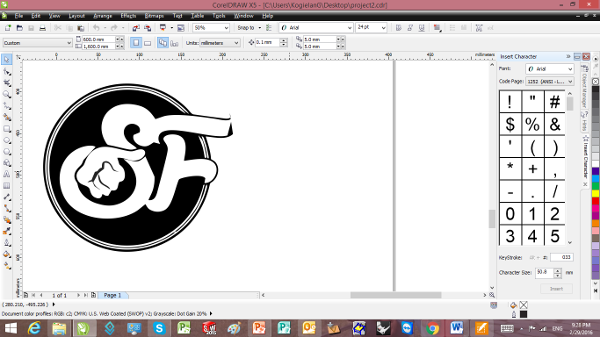

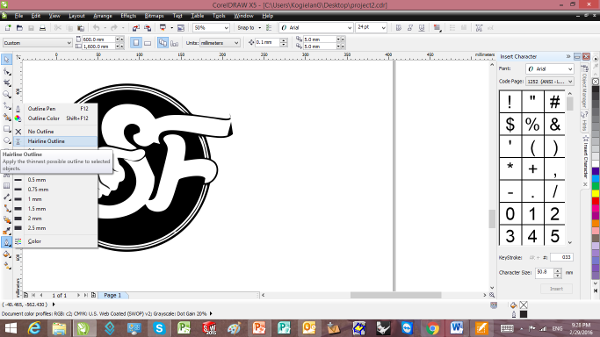

Locking down the Image file and making the image into vectors so that it can be cut on the vynl cutter

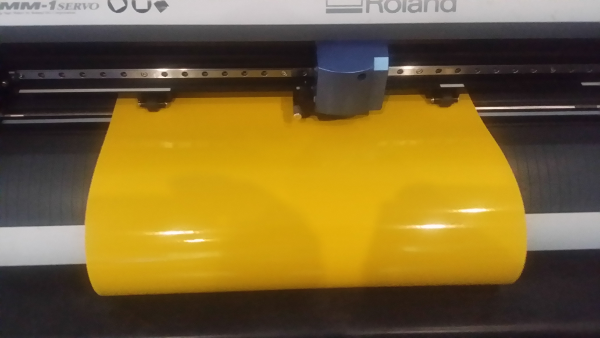

Using the Vynl Cutter to Cut the design

using a Tweaser, pulling out the unwanted parts

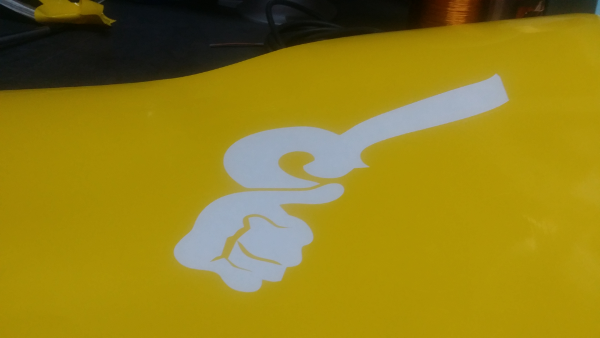

continuing with removing the unwanted parts

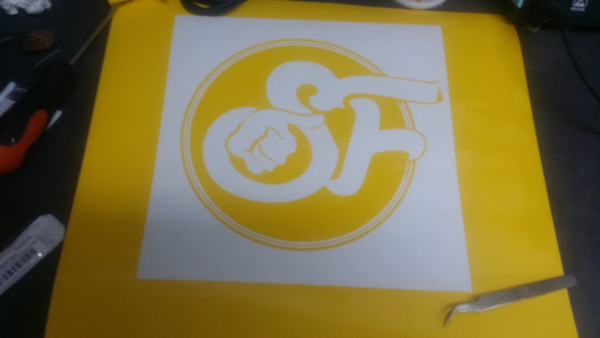

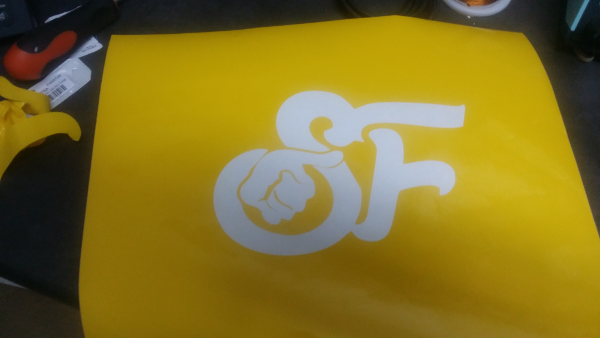

All unwanted parts removed.Final design cut out on vynl.

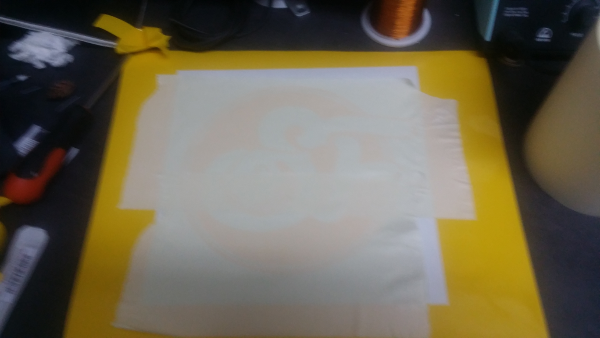

I wanted to past the design on the door, thus I used masking tape to transfer the vynl from the sheet to the masking tape

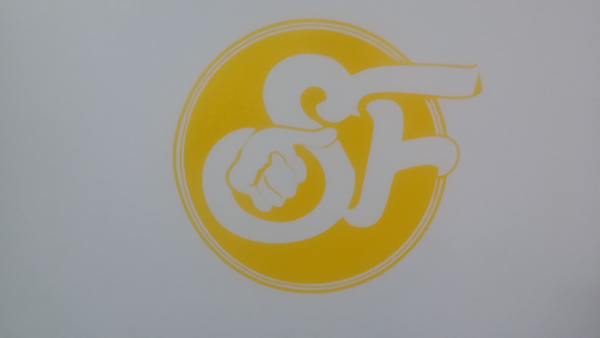

From the masking tape onto the door
