Following Getting Started With Gestalt Nodes, we successfully ran single node test.
It does not have to fuse or program the Gestalt nodes again.
Single gestalt node testing
And then testing with three nodes Trying to identify each gestalt node.
But, the winter is coming again… After this video, these three nodes cannot blink anymore…. In debug time, we found that the people from Fablab Leon faced same problem.

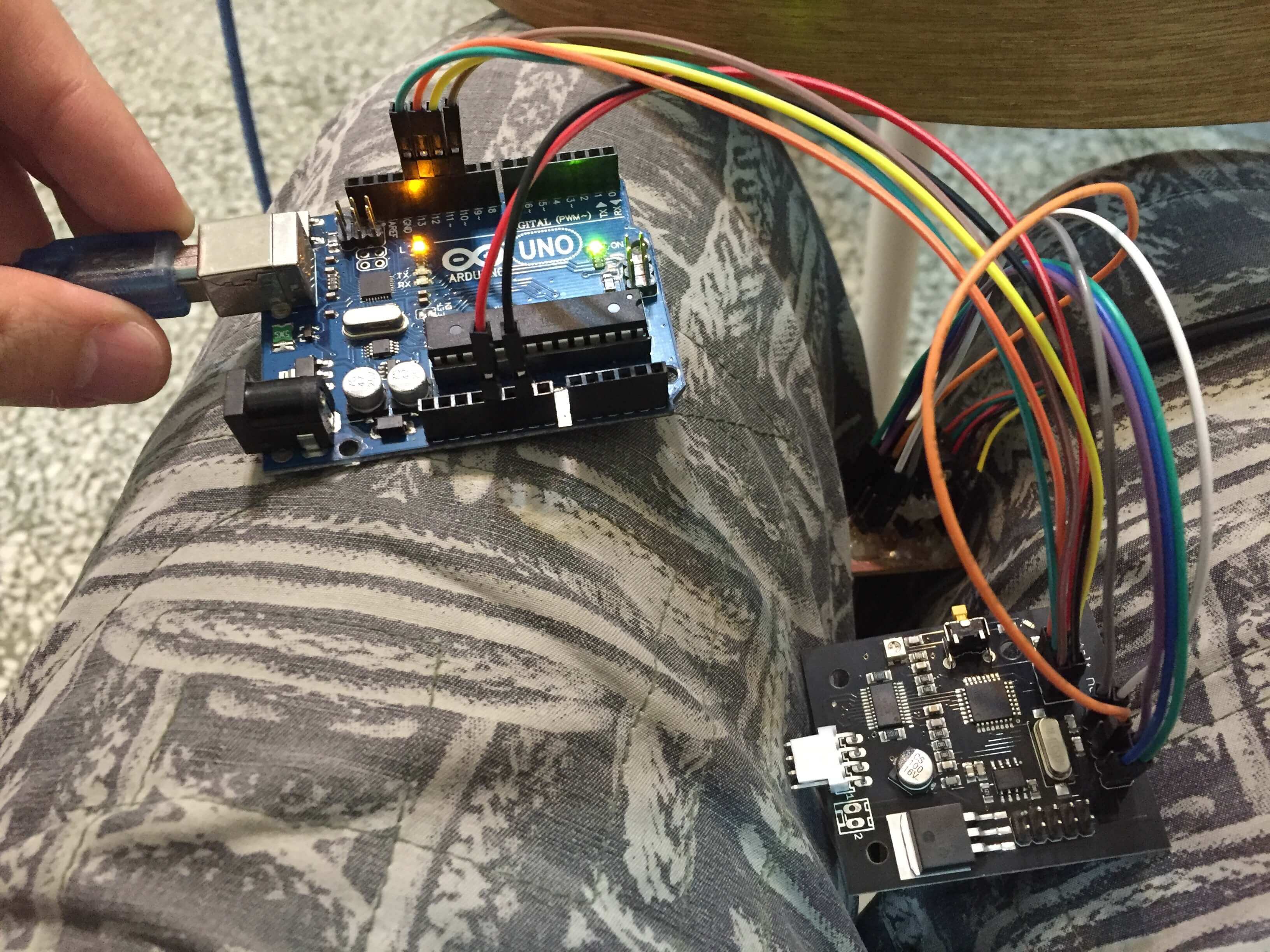

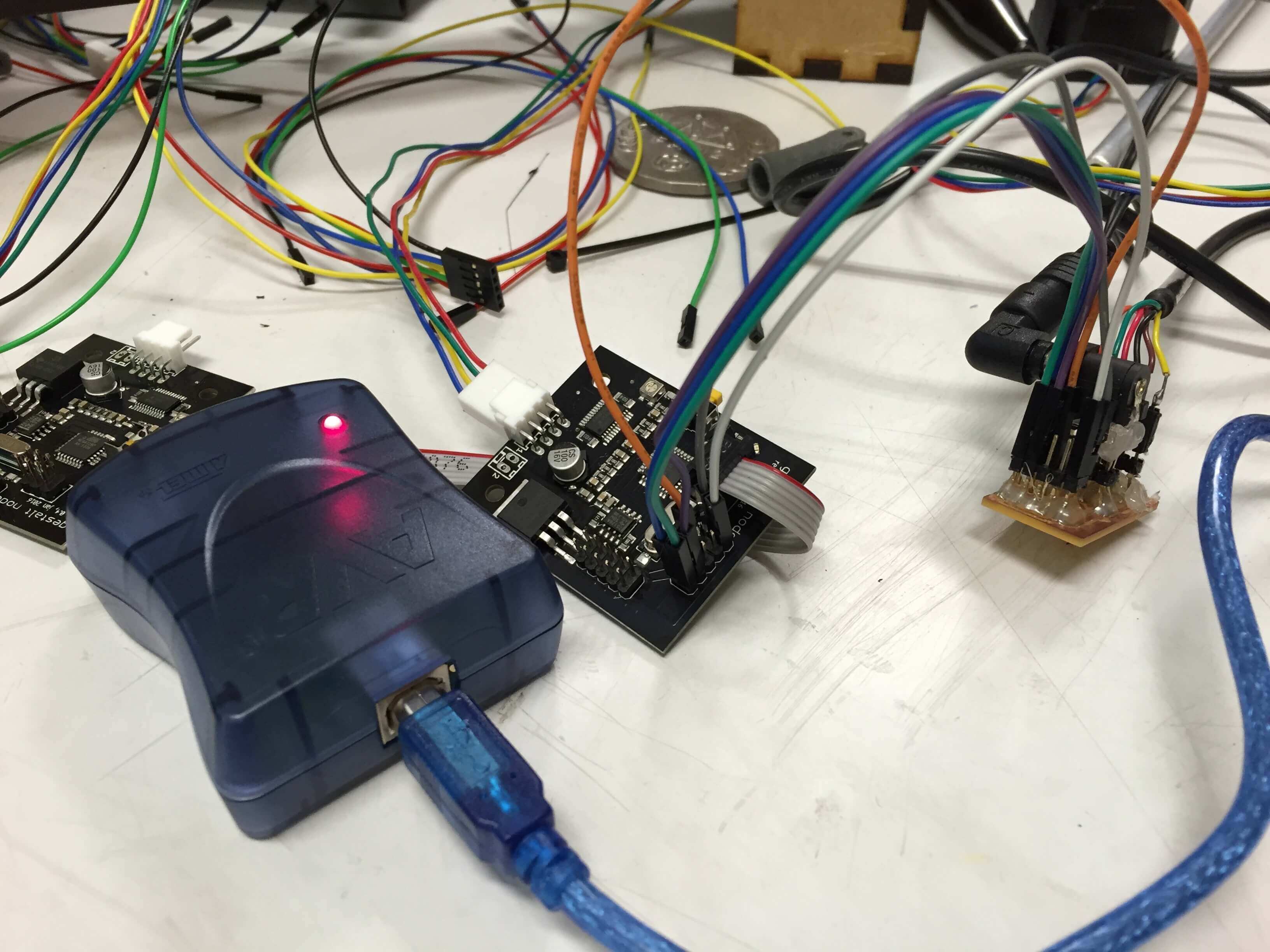

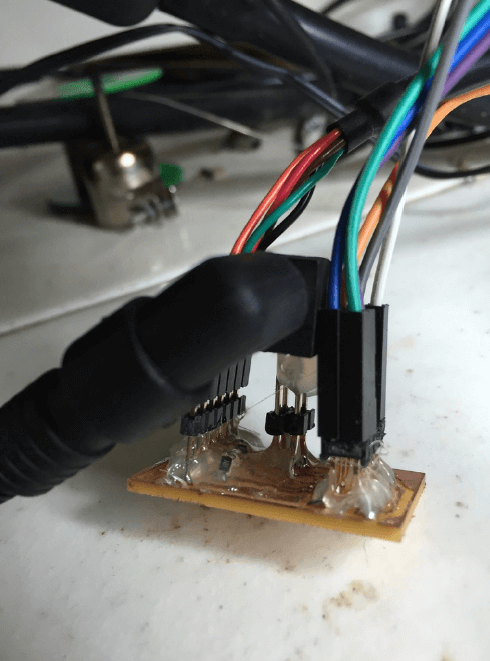

We tried to fuse and program these three Gestalt nodes with Arduino.

Error messages showed up.
avrdude: stk500_recv(): programmer is not responding
avrdude: stk500_getsync() attempt 1 of 10: not in sync: resp=0x00

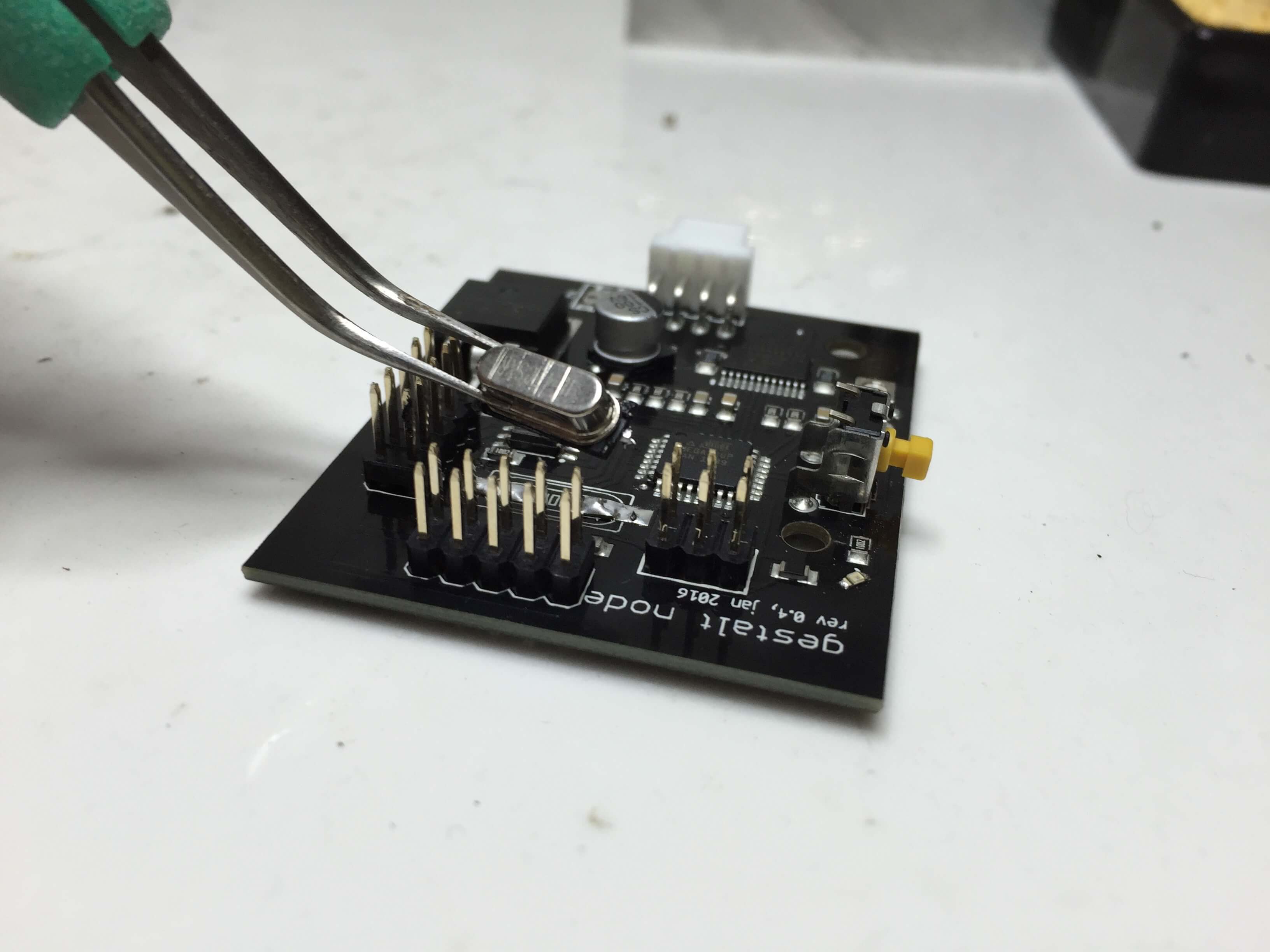

We were going to check the wires, but the programmer still cannot recognize ATmega328P. So we removed the default crystal to burn them again.

It cannot work either.
However we have 4 Gestalt nodes and 3 of them cannot work, so we fused the rest of workable one which can blink and identify by computer.

Boom! It worked!


Which means 3 of them might be totally broken with their ATmega328P.

While debugging, Kevin tried to write forward and reverse kinematics of hair milling machine. Though it looks like delta machine, it’s not parallel mechanism at all. We have to control the tool pointer and the position at the same time. So he modified the Python code in machines.py and followed Delta Robot Kinematics by Steve Graves.

class kinematics():
# Bottom length = D
# /\ A
# / \ ^ x
# / \ |
# / \ |
# / o \ o ---- >
# / \ y
# / \
# --------------
# C B
#---Inherited from matrix class but not real matrix----
class deltaForwardTransform(matrix):
'''Customized transform from axes input vector
to delta hair-milling coordinate'''
def __init__(self, L, r, rh, Lt, D):
self.L = L #length of rod
self.r = r #radius of iron ball
self.rh = rh #diameter of your head
self.Lt = Lt #length of tool-to-ball
self.D = D #side length of bottom triangle
self.Ax = math.sqrt(3)/3 * D
self.Ay = 0
self.Bx = -math.sqrt(3)/6 * D
self.By = 1/2 * D
self.Cx = -math.sqrt(3)/6 * D
self.Cy = -1/2 * D
def transform(self, inputVector):
if len(inputVector) != 3:
#check to make sure that vectors match notice
(self, 'vector length mismatch')
return False
Az = inputVector[0]
Bz = inputVector[1]
Cz = inputVector[2]
P1 = numpy.array([self.Ax, self.Ay, Az])
P2 = numpy.array([self.Bx, self.By, Bz])
P3 = numpy.array([self.Cx, self.Cy, Cz])
ex = (P2 - P1)/(numpy.linalg.norm(P2 - P1))
i = numpy.dot(ex, P3 - P1)
ey = (P3 - P1 - i*ex)/(numpy.linalg.norm(P3 - P1 - i*ex))
ez = numpy.cross(ex,ey)
d = numpy.linalg.norm(P2 - P1)
j = numpy.dot(ey, P3 - P1)
xr = (pow((self.L+self.r),2) - pow((self.L+self.r),2) +
pow(d,2))/(2*d)
yr = ((pow((self.L+self.r),2) - pow((self.L+self.r),2) + pow(i,2) +
pow(j, 2))/(2*j)) - ((i/j)*x)
zr = numpy.sqrt(pow((self.L+self.r),2) - pow(x,2) - pow(y,2))
scale = self.rh / ( self.rh + self.Lt + self.r )
#scaling from iron ball to tool position
x = scale * xr
y = scale * yr
z = scale * zr
return [x,y]
#---Inherited from matrix class but not real matrix----
class deltaReverseTransform(matrix):
'''Customized transform from delta hair-milling
coordinate to axes output vector'''
def __init__(self, L, r, rh, Lt, D):
self.L = L #length of rod
self.r = r #radius of iron ball
self.r = r #radius of iron ball
self.rh = rh #radius of your head
self.Lt = Lt #length of tool
self.D = D #side length of bottom triangle
self.Ax = math.sqrt(3)/3 * D
self.Ay = 0
self.Bx = -math.sqrt(3)/6 * D
self.By = 1/2 * D
self.Cx = -math.sqrt(3)/6 * D
self.Cy = -1/2 * D
def transform(self, inputVector):
# Only x,y allowed within inputVector
if len(inputVector) != 2:
#check to make sure that vectors match notice
(self, 'vector length mismatch')
return False
x = inputVector[0]
y = inputVector[1]
z = math.sqrt(r**2 - x**2 - y**2)
scale = ( self.rh + self.Lt + self.r ) / self.rh
#scaling from tool position to iron ball position
xr = scale * x
yr = scale * y
zr = scale * z
Az = zr - math.sqrt( (self.L+self.r)**2 -
(xr-self.Ax)**2 - (yrself. Ay)**2 )
Bz = zr - math.sqrt( (self.L+self.r)**2 -
(xr-self.Bx)**2 - (yrself. By)**2 )
Cz = zr - math.sqrt( (self.L+self.r)**2 -
(xr-self.Cx)**2 - (yrself. Cy)**2 )
return [Az, Bz, Cz]
# Testing......
class hair_milling_delta(transform):
def __init__(self, L, r, Lt, D):
self.forwardMatrix = kinematics.deltaForwardTransform
(L, r, rh, Lt, D)
self.reverseMatrix = kinematics.deltaReverseTransform
(L, r, rh, Lt, D)

And added these to main file hair-milling.py

def initKinematics(self):
self.xAxis =
elements.elementChain.forward
([elements.microstep.forward(4), elements.stepper.forward(1.8),
elements.leadscrew.forward(8), elements.invert.forward(True)])
self.yAxis =
elements.elementChain.forward
([elements.microstep.forward(4), elements.stepper.forward(1.8),
elements.leadscrew.forward(8), elements.invert.forward(False)])
self.zAxis = elements.elementChain.forward
([elements.microstep.forward(4), elements.stepper.forward(1.8),
elements.leadscrew.forward(8), elements.invert.forward(False)])
self.stageKinematics = kinematics.hair_milling_delta()

When he was all set, we found out the 3 of Gestalt nodes were definitely broken and cannot fuse.
So, in the end, we got rid of these code and also Gestalt.
The winter is coming again and again….

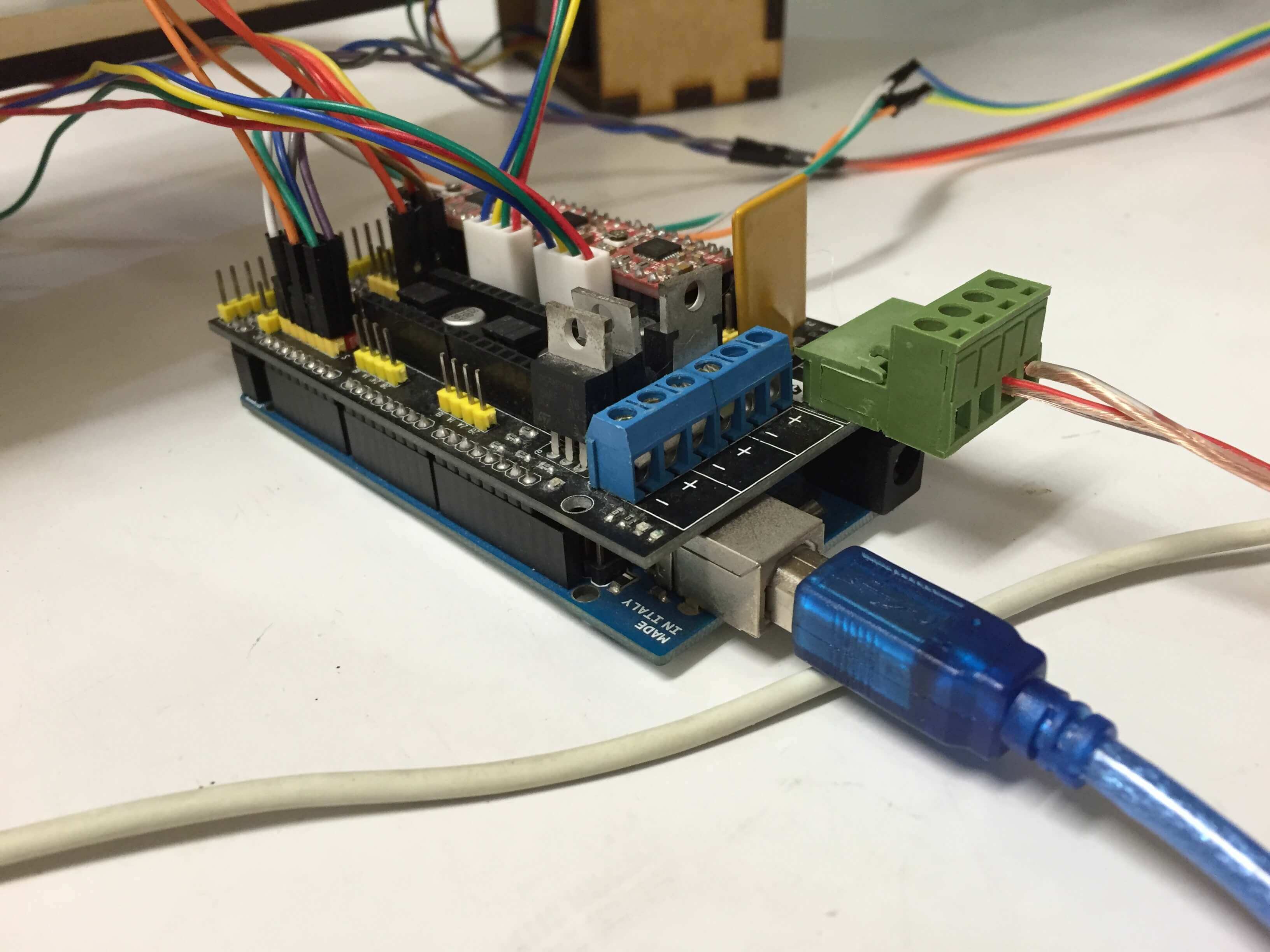

We looked forward and used RAMPS 1.4 with Marlin from Reprap community to control our machine.
And then we just figured out that the mechanism we built was not functional to mill hair.
After that we decided to make a "foot massage machine", which could not have to use tool platform!

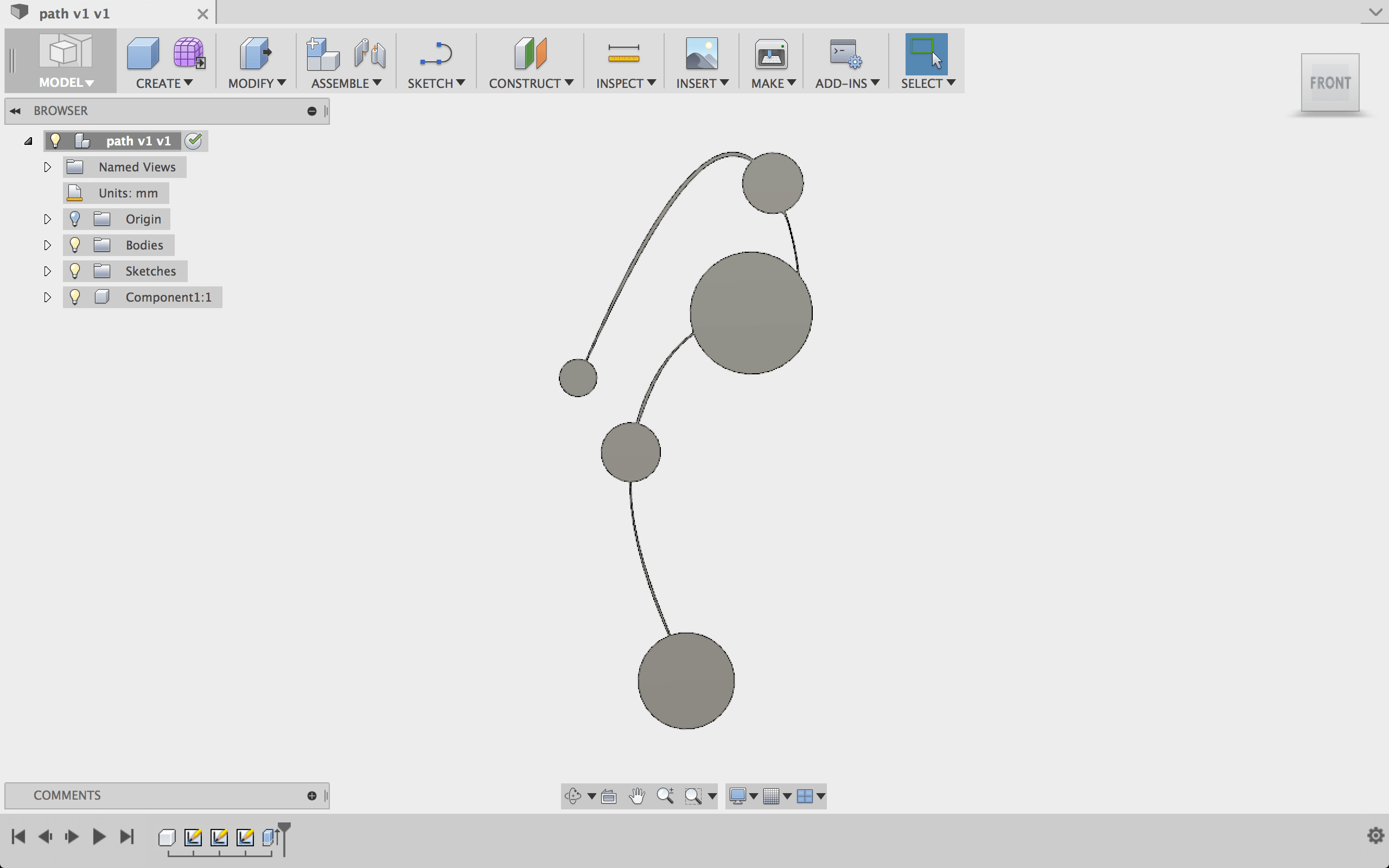

And we set the path where you want to massage with Fusion 360 then generated Gcode with repetier.

Machine Design Testing:

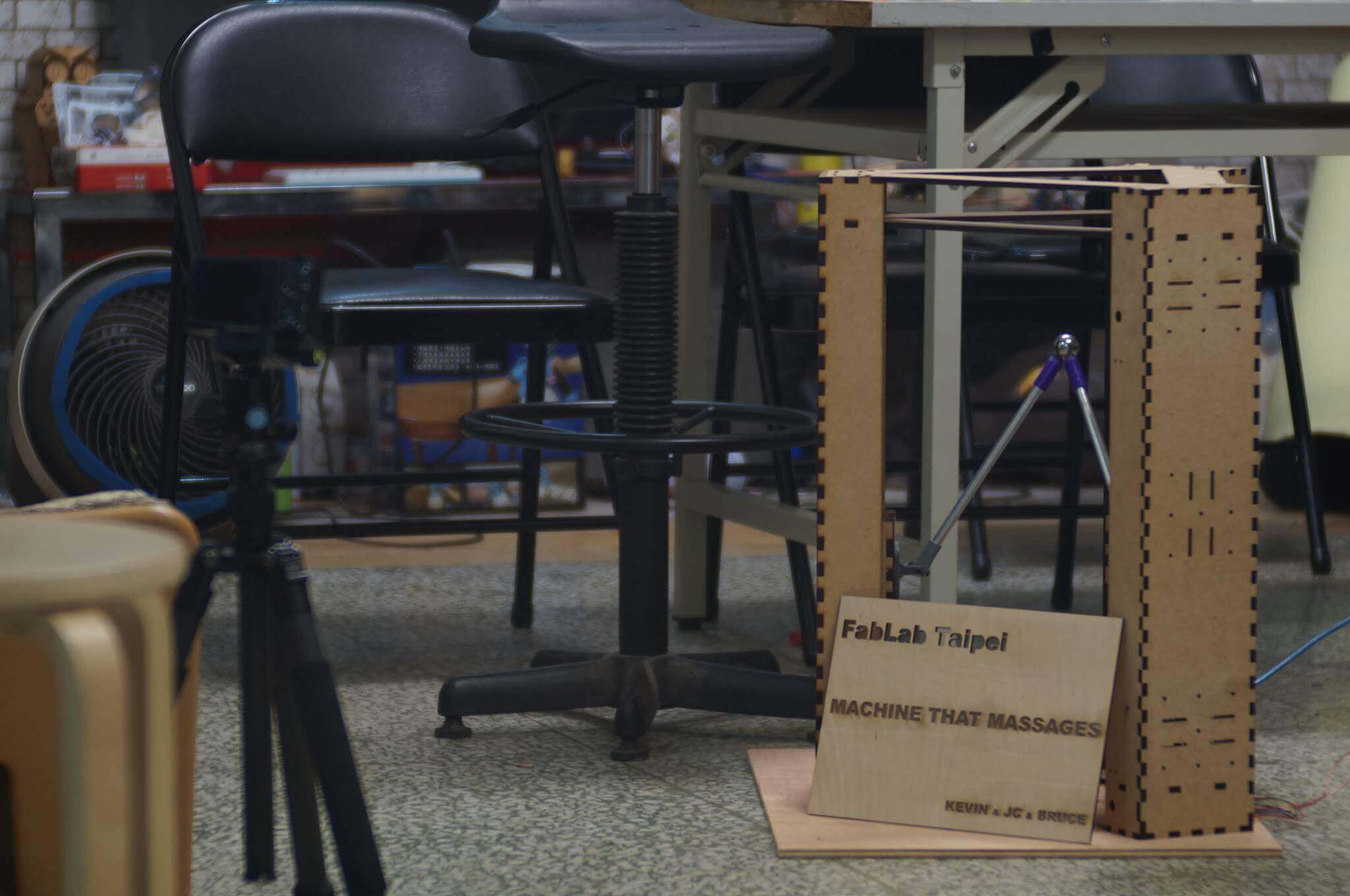

Foot massage machine - Leave stress behind

The result is presented of this video:
