Week 06 Electronics Design

1. 7 Mar - Very stressed! I only have time to start this week's assignment today Monday.. I downloaded EagleCAD from this site http://www.cadsoftusa.com/download-eagle/

But I don't know how to use it.. So I follow Rodney's tip (from last year) - Tutorial from Sparkfun..

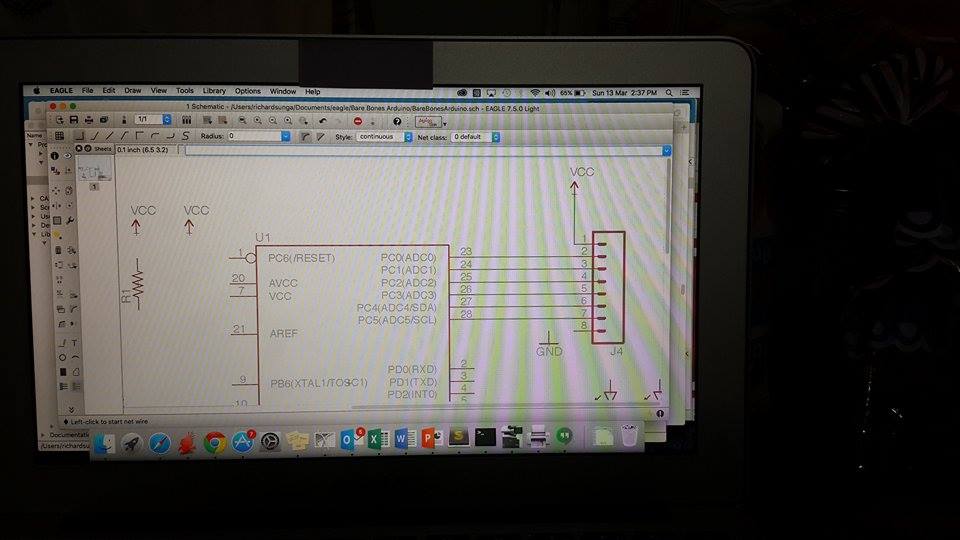

Here's me trying the Tutorial to make a schematic..

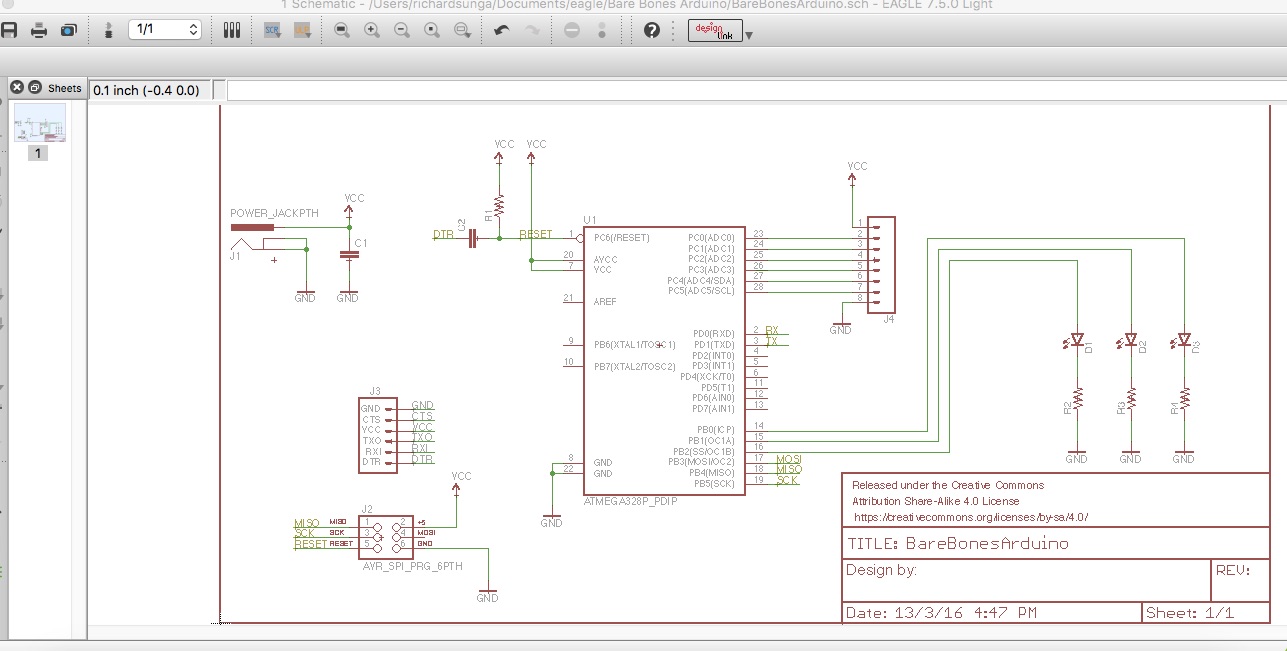

Finally my schematic is done.. Next is PCB design..

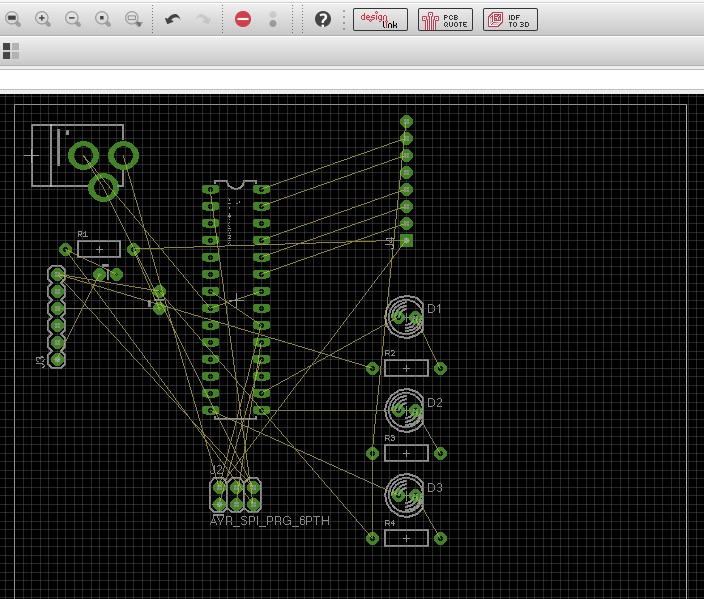

2. Here's my board.. in progress.. Very difficult to move a part.. You must click at a certain area of the part only.. such as the middle of the ATmega..



3.



4.

5.
