Tasks:
       To add an output device to a microcontroller board designed and program it to do something
The micro-controller for Output Devices is the same as Input Devices. The relay module has 3 pins too ie. IN, GND, and Vcc. In ATmega328, IN is connected to pin PD5. Eventually, the relay will use in final project, ie. to cut-off power supply to 3D printer.

The following program is written into the Arduino sketch and uploaded into the micro-controller.
	#include <SoftwareSerial.h>
	int Relay = 5;

	void setup()
	{
  	pinMode(13, OUTPUT);        //Set Pin13 as ATmega328's LED Output
  	digitalWrite(13, HIGH);     //Set Pin13 High
  	pinMode(Relay, OUTPUT);     //Set Pin5 as relay output
	}
	void loop()
	{
          digitalWrite(Relay, HIGH);   //Turn off relay
          delay(5000);
          digitalWrite(Relay, LOW);    //Turn on relay
          delay(5000);
	}



The following are the components needed to perform this task.


The following program is written into the Arduino sketch and uploaded into the micro-controller through FTDI.
	#include <SoftwareSerial.h>
	int motorPin = 5;

     void setup()
     {
      pinMode(motorPin, OUTPUT);
      Serial.begin(9600);
      while (! Serial);
      Serial.println("Speed 0 to 255"); // number increases with speed
     }

     void loop()
     {
     if (Serial.available())
     {
      int speed = Serial.parseInt();
      if (speed >= 0 && speed <= 255)
     {
       analogWrite(motorPin, speed);
       }
      }
     }



	The working files can be downloaded here.

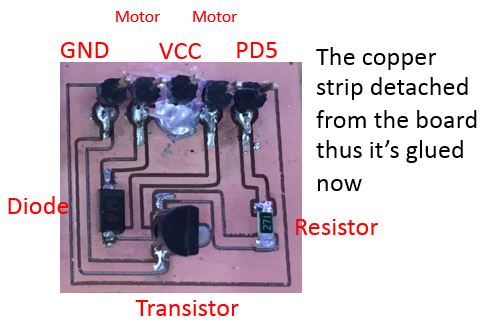

    DC-motor board and
    DC-motor schematic
