Assignment

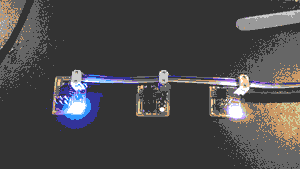

This week assignment was design a board having some output function. After several weeks' study I could make a board in half an hour. So for this week's assignment I made three RGB boards. And I modified the delay so it looks more shiny.
For the PCB design I just modified Neil's board. But we don't have that RGB led so I modified the board into 5050 packs.
Here is my board
files and code(eagle).
RGB .

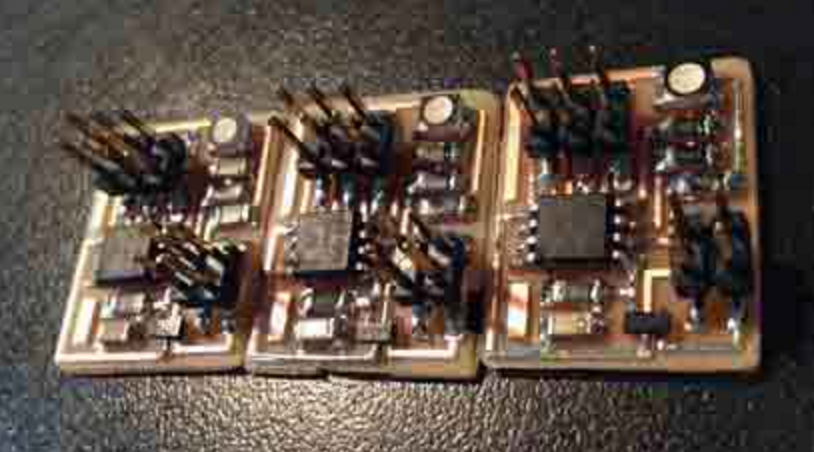

Using the milling machine become a second nature to me. Here is my final board.

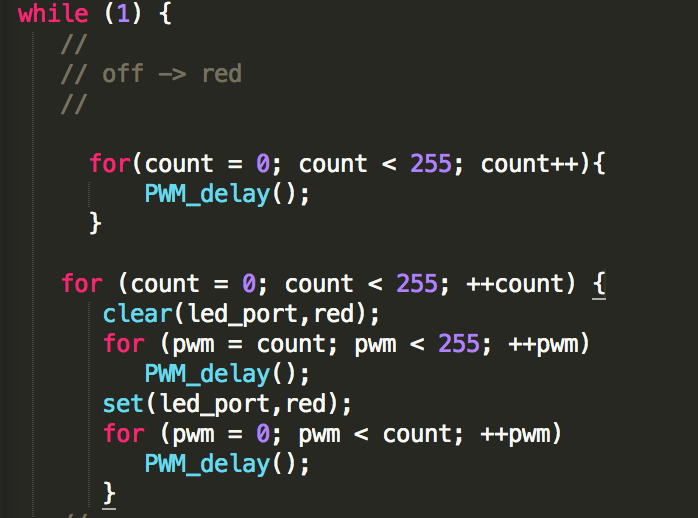

For the code part, to make the shiny effect all we have to do is adding a delay to the code as follow.
