In this week I have made hello bus. which is really simple and not take that much time.
connect all three micro controller and make it work as series also separately.
Here is a video how it working I type 0,1,2 in arduino serial window.

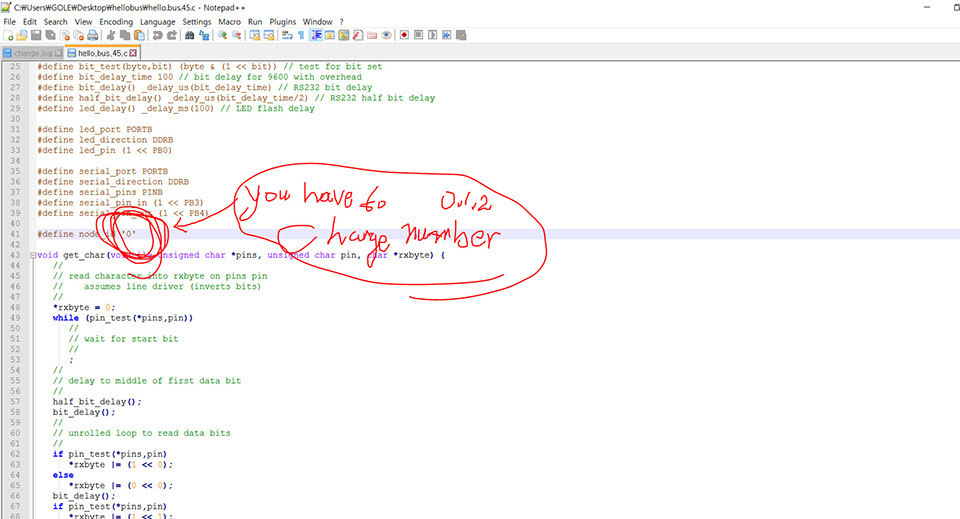

To make bridge and node1,2 to be separated you have to change number in C file.

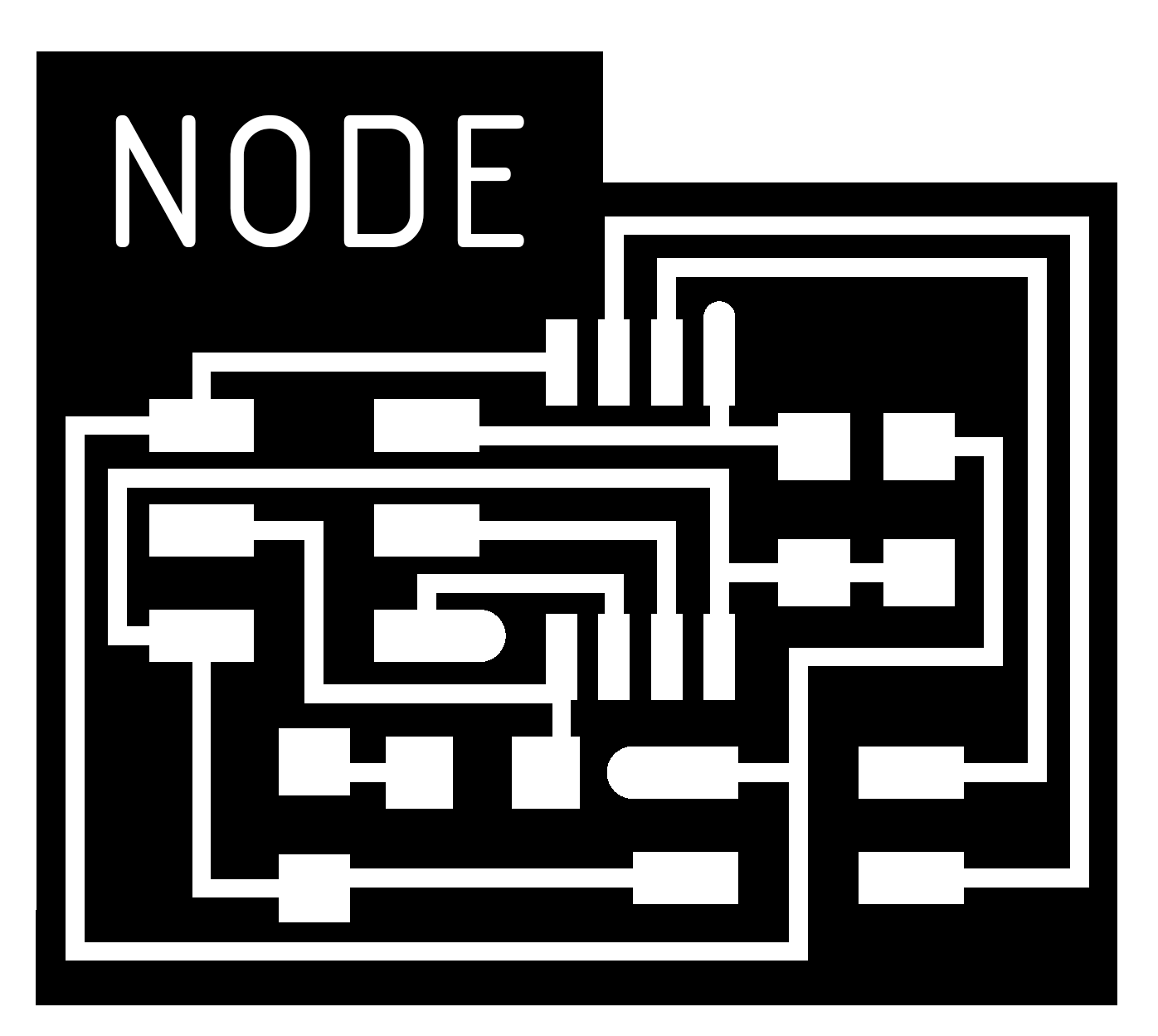

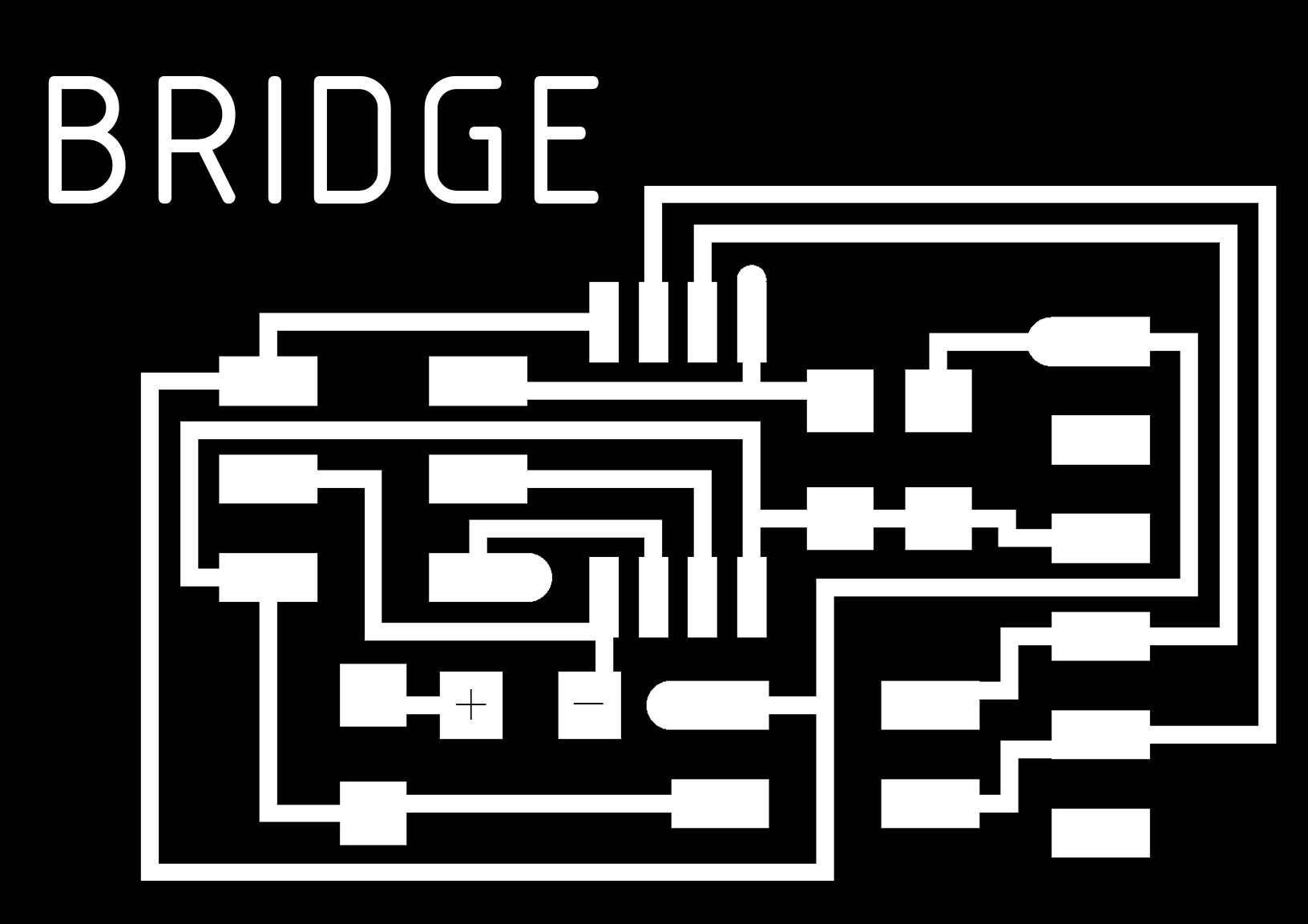

To make it work you have to make 2 node and one bridge think about their names. :)

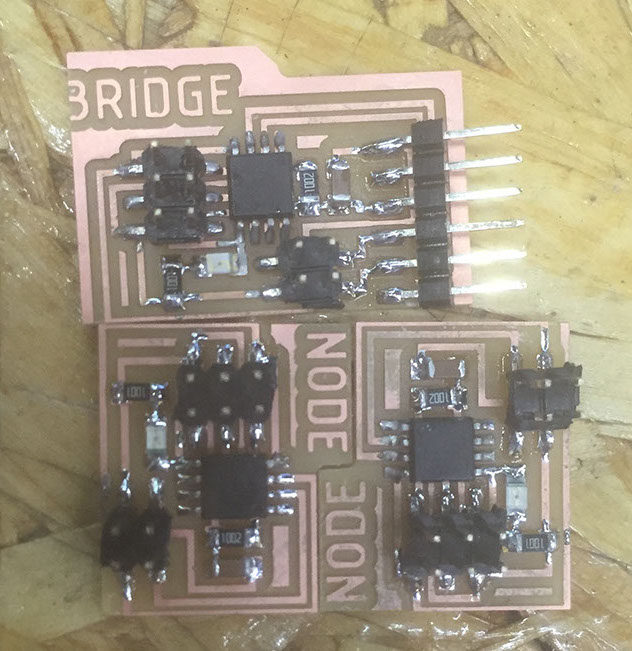

Two nodes are fit perfect to each other!
Only thing you have to do is just open ardino IDE

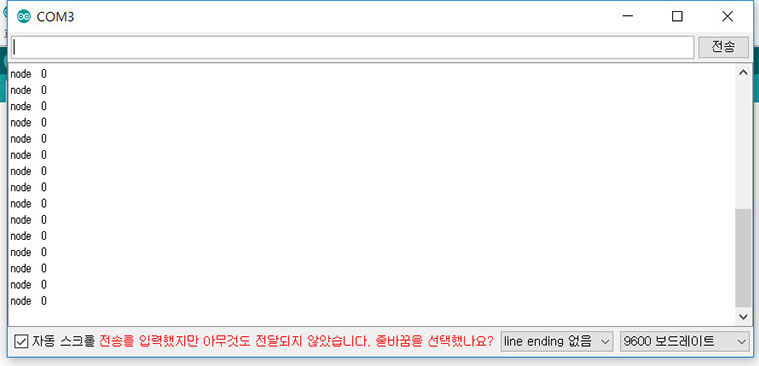

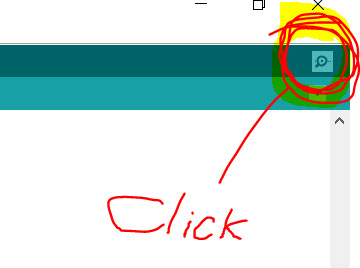

and click serial monitor
Put some numbers in it.
make sure your bridge is connect through ftdi.
When it shows you number on serial monitor node or bridge's LED blinks twice.
