Assignment 16: Interface and Application Programming

I programmed a graphical user interface (GUI) for my radio network. As the programming environment I used Processing with ControlP5 GUI library. I installed the library with Sketch->Import Library...->Add Library...



I wanted the user interface to have push buttons for toggling the LEDs and indicators to show the state of the LEDs. I went through the examples in the ControlP5 library, and the ControlP5 Button seemed like a good starting point to implement the buttons. The Serial libraries SimpleRead and SimpleWrite showed how to read from the serial port and how to write to the serial port. Below is an example of the operation of the software. The software reads the serial port, checks the characters, defines the values cl1 and cl2 for the indicator colors accordingly, and draws the circles with current colors. The previous two events were toggling LED1 to FALSE and LED2 to TRUE.

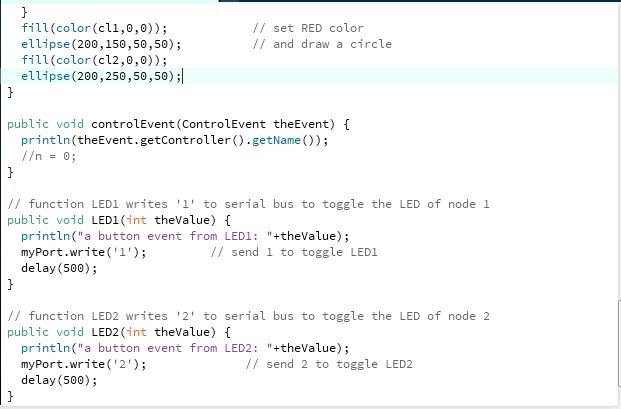

The events triggered by the push buttons are shown below. LED1 sends '1' to serial port,  and LED2 sends '2'.
