Week assignment is..
○ add an output device to a microcontroller board you've designed and program it to do something

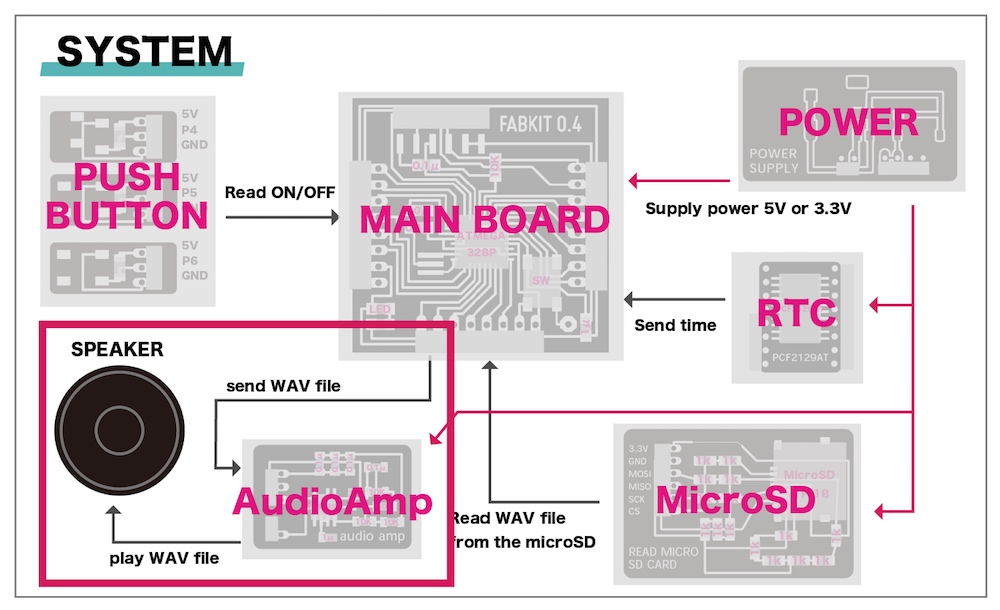

In final project, I will make talking puppets. So I made speaker and audio amp boards in this week.

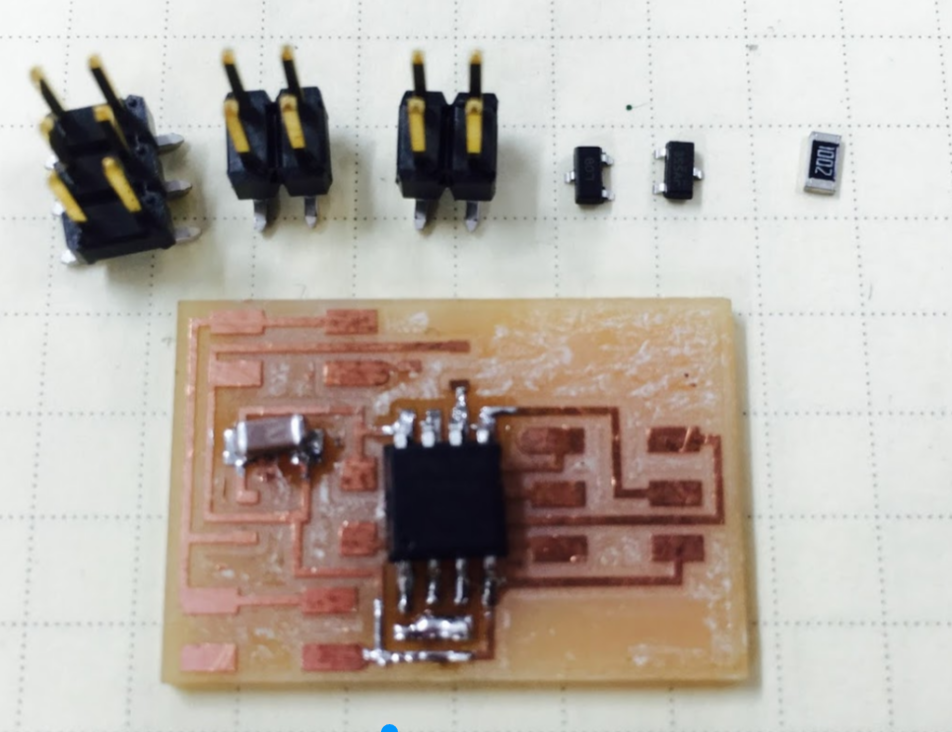

I downloaded sample - hello.speaker.45 from class page.I cut with CNC milling machine and soledered some components.
and wrote this sample program.
//
// hello.speaker.45.c
//
// speaker PWM hello-world
// square wave, pseudo-random frequency
//
// Neil Gershenfeld
// 11/14/10
//
// (c) Massachusetts Institute of Technology 2010
// This work may be reproduced, modified, distributed,
// performed, and displayed for any purpose. Copyright is
// retained and must be preserved. The work is provided
// as is; no warranty is provided, and users accept all
// liability.
//
#include
#include
#define output(directions,pin) (directions |= pin) // set port direction for output
#define set(port,pin) (port |= pin) // set port pin
#define clear(port,pin) (port &= (~pin)) // clear port pin
#define pin_test(pins,pin) (pins & pin) // test for port pin
#define bit_test(byte,bit) (byte & (1 << bit)) // test for bit set
#define cycle_delay() _delay_us(2) // cycle delay
#define current 150 // PWM current
#define off 255 // PWM off
#define MOSFET_pin (1 << PB1)
#define MOSFET_port PORTB
#define MOSFET_direction DDRB
int main(void) {
//
// main
//
static uint16_t cycle,cycles,delay,bit,lfsr;
//
// set clock divider to /1
//
CLKPR = (1 << CLKPCE);
CLKPR = (0 << CLKPS3) | (0 << CLKPS2) | (0 << CLKPS1) | (0 << CLKPS0);
//
//
//
TCCR0A = ((1 << COM0B0) | (1 << COM0B1) | (1 << WGM01) | (1 << WGM00)); // set OC0B on compare match and set fast PWM mode, 0xFF TOP
TCCR0B = (1 << CS00); // set timer 0 prescalar to 1
//
// initialize MOSFET pin
//
clear(MOSFET_port, MOSFET_pin);
output(MOSFET_direction, MOSFET_pin);
//
// initialize LFSR
//
lfsr = 1;
//
// main loop
//
while (1) {
//
// update 11 bit LFSR
//
bit = ((lfsr >> 0) ^ (lfsr >> 9)) & 1;
lfsr = (lfsr >> 1) | (bit << 10);
//
// loop over cycles
//
cycles = (1 << 15) / lfsr;
for (cycle = 0; cycle < cycles; ++cycle) {
//
// set PWM current on and delay
//
OCR0B = current;
for (delay = 0; delay < lfsr; ++delay)
cycle_delay();
//
// set PWM current off and delay
//
OCR0B = off;
for (delay = 0; delay < lfsr; ++delay)
cycle_delay();
}
}
}

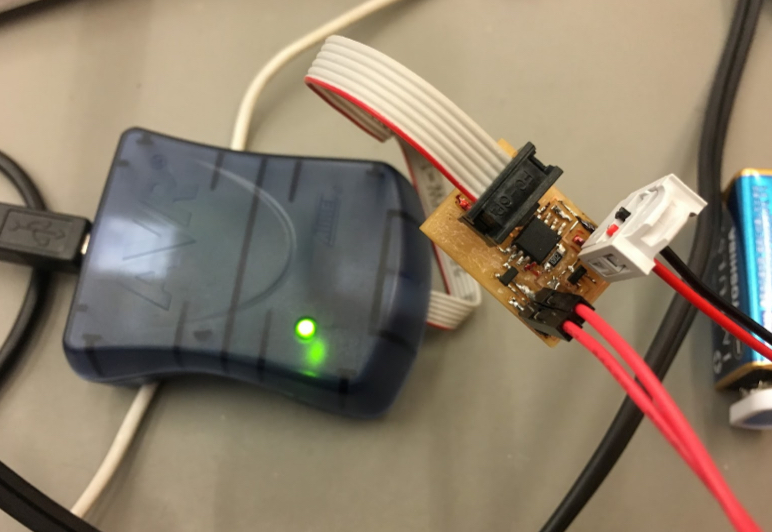

and Worked!
