Week - 13 Output device(APRIL 27)

Assignment

Add an output device to a microcontroller board you´ve designed and program it to do something.I decided to do desplay thermistor value wiCH i designed for the week Input devices,as first try "LCD"for an output device ,decided to mill Neil's Dispaly
used Neil's c code at first

link

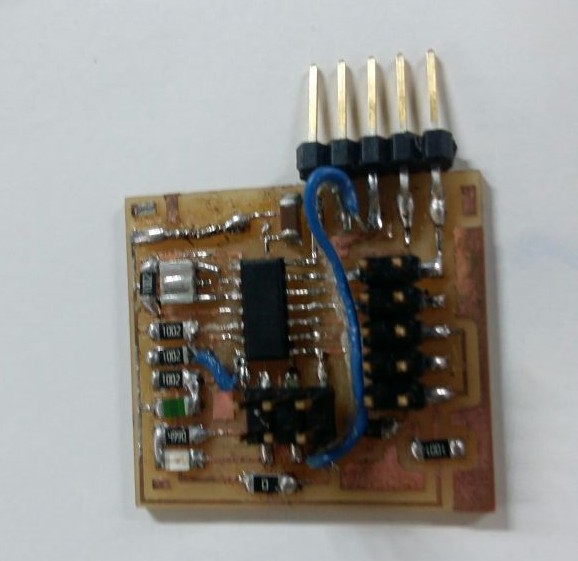

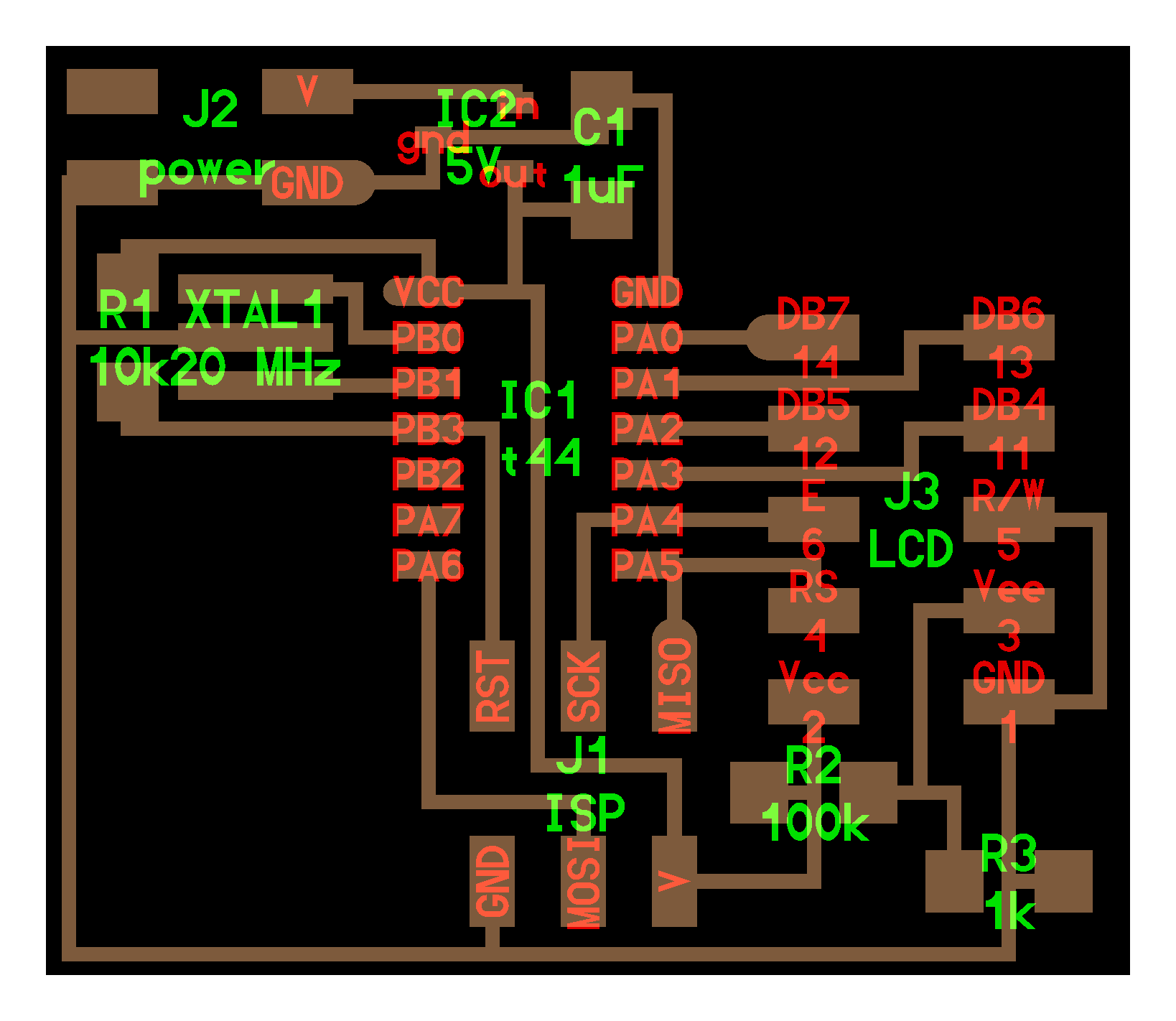

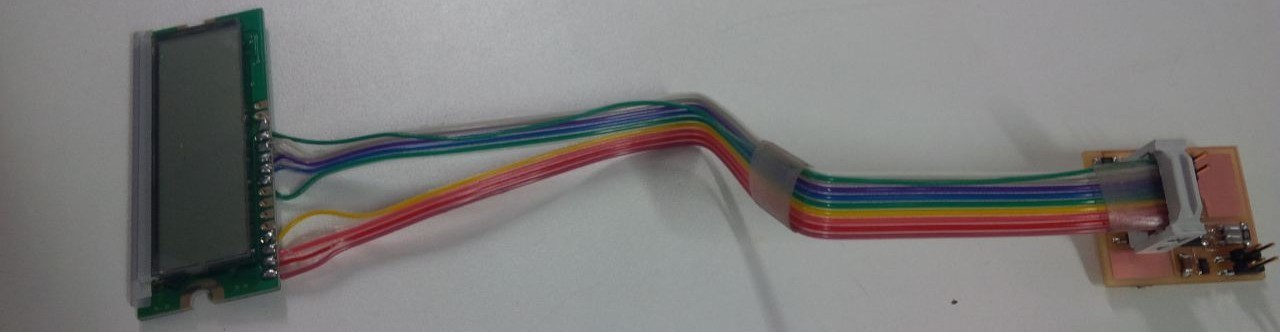

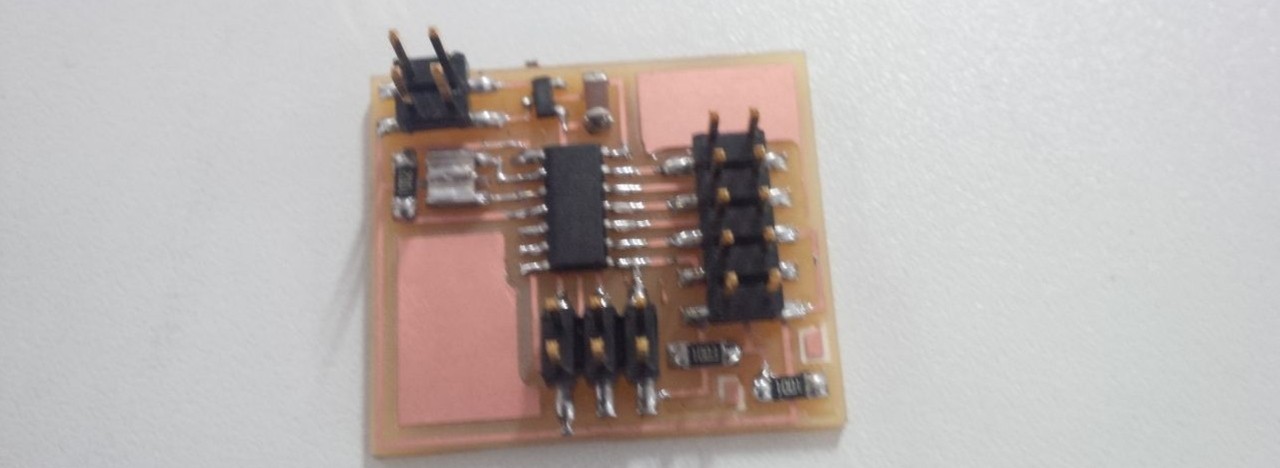

Milled the board,after milling,soldered it,connected fab isp,10 pin jumper pin solered to lcd display,(reffered design image to solder)

link

connected to the computer , open terminal to make hex

sudo make -f hello.LCD.44.make

to program

sudo make -f hello.LCD.44.make program-usbtiny

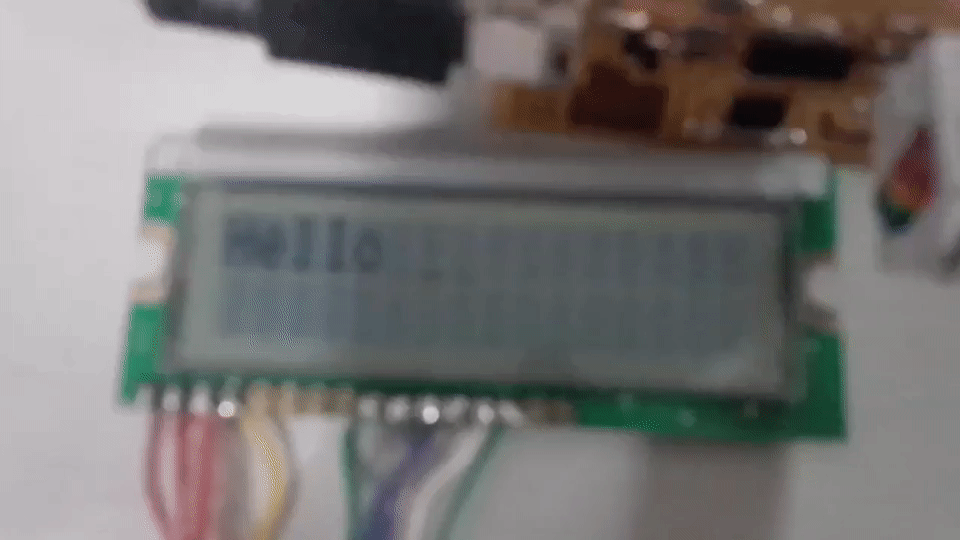

i got the desplay "hello to world"

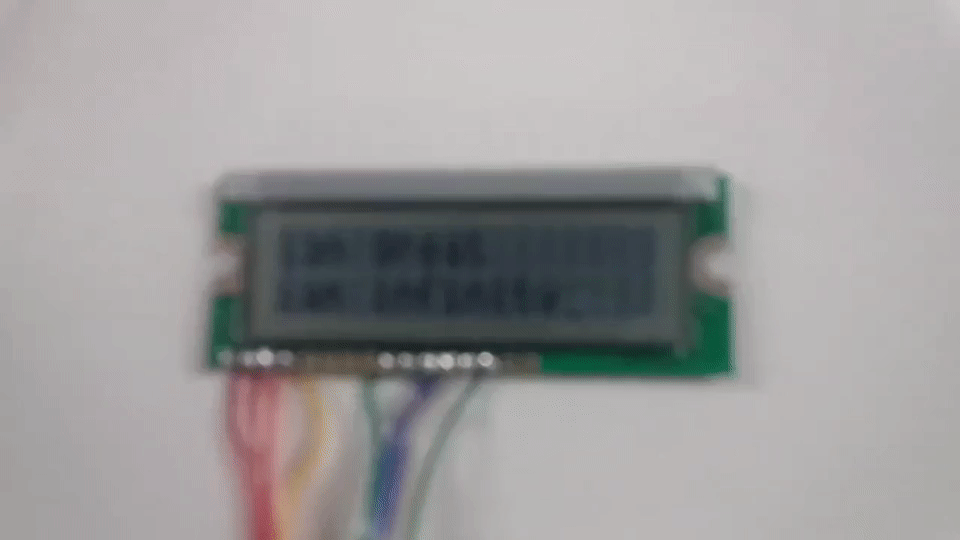

used Neil's c code at first, but really wanted to see my own words on lcd desplay(iam great,iam infinity) ,for that first i did edit hello cd c file in gdeit,then deleted already downloaded hex file ,made the hex file to see my own words

sudo make -f hello.LCD.44.make

My own Board to desplay thermistor value

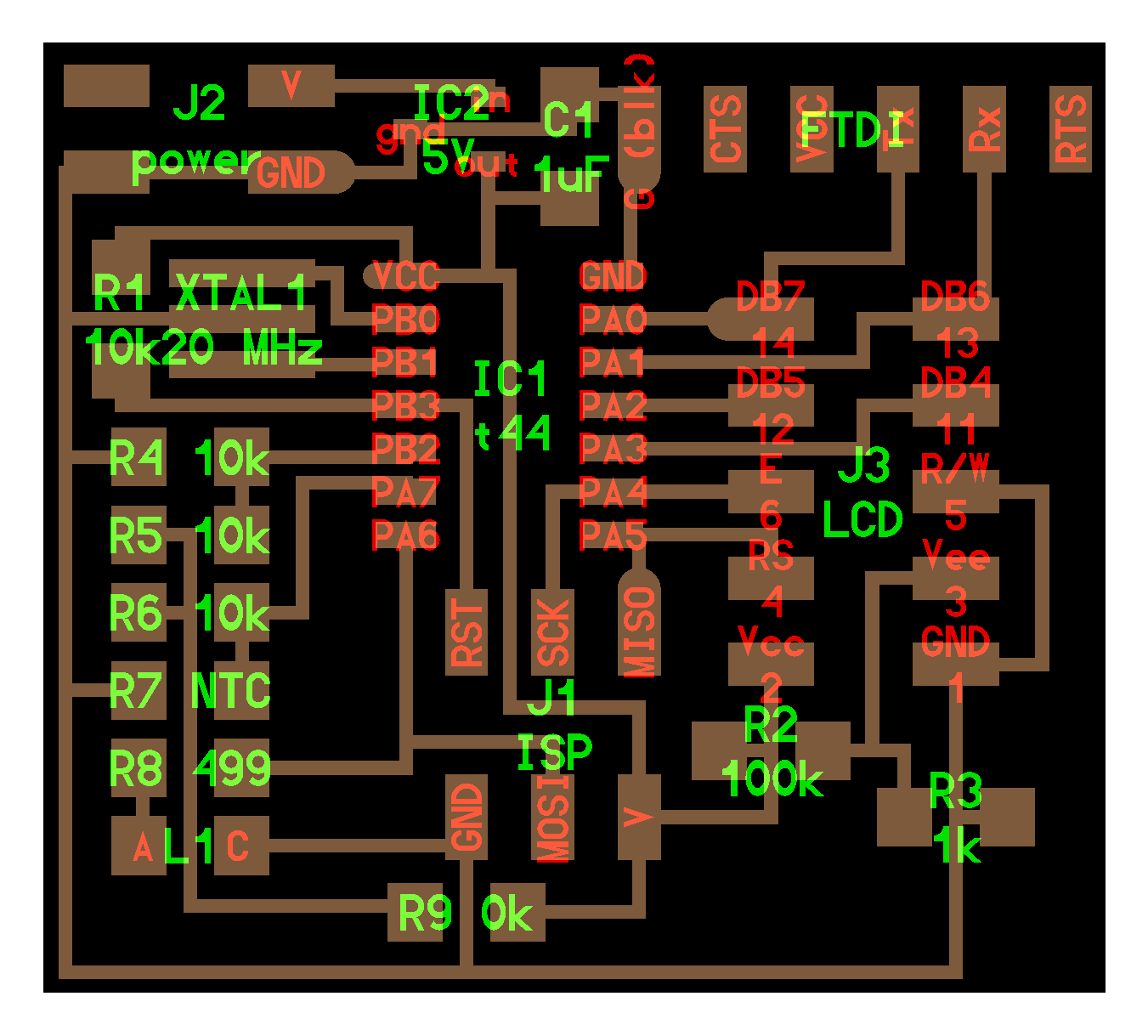

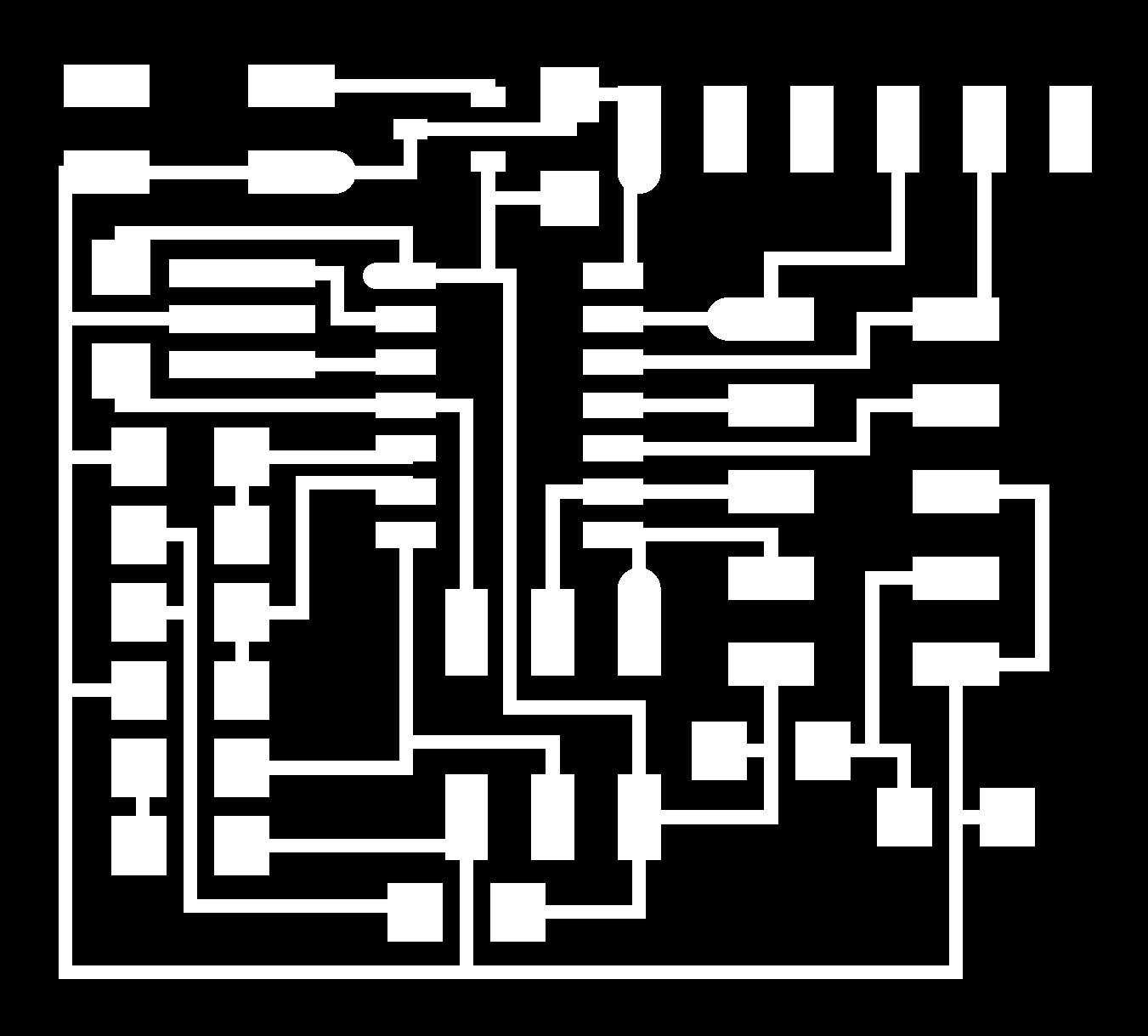

Redesigned Neil'd LCD boaed to add temperature sensing part from a thermistor,designing steps and all have documented in input devices assignment documetation

link
Thermistor +LCD board

Programming THis part was a hell lot of work,i had to spend almost 2 days to figur it out .First i tried to add code for wheatson brige in to Neil'es code.hese is code for whaeston brigde,

value = adcw
   if (value > 511):
      value -= 1024
   V = 2.5 - value*5.0/(20.0*512.0)
   R = 10000.0/(5.0/V-1.0)
   # NHQ103B375R5
   # R25 10000 (O)
   # B (25/85) 3750 (K)
   # R(T(C)) = R(25)*exp(B*(1/(T(C)+273.15)-(1/(25+273.15))))
   B = 3750.0
   R25 =  10000.0
   T = 1.0/(log(R/R25)/B+(1/(25.0+273.15))) - 273.15

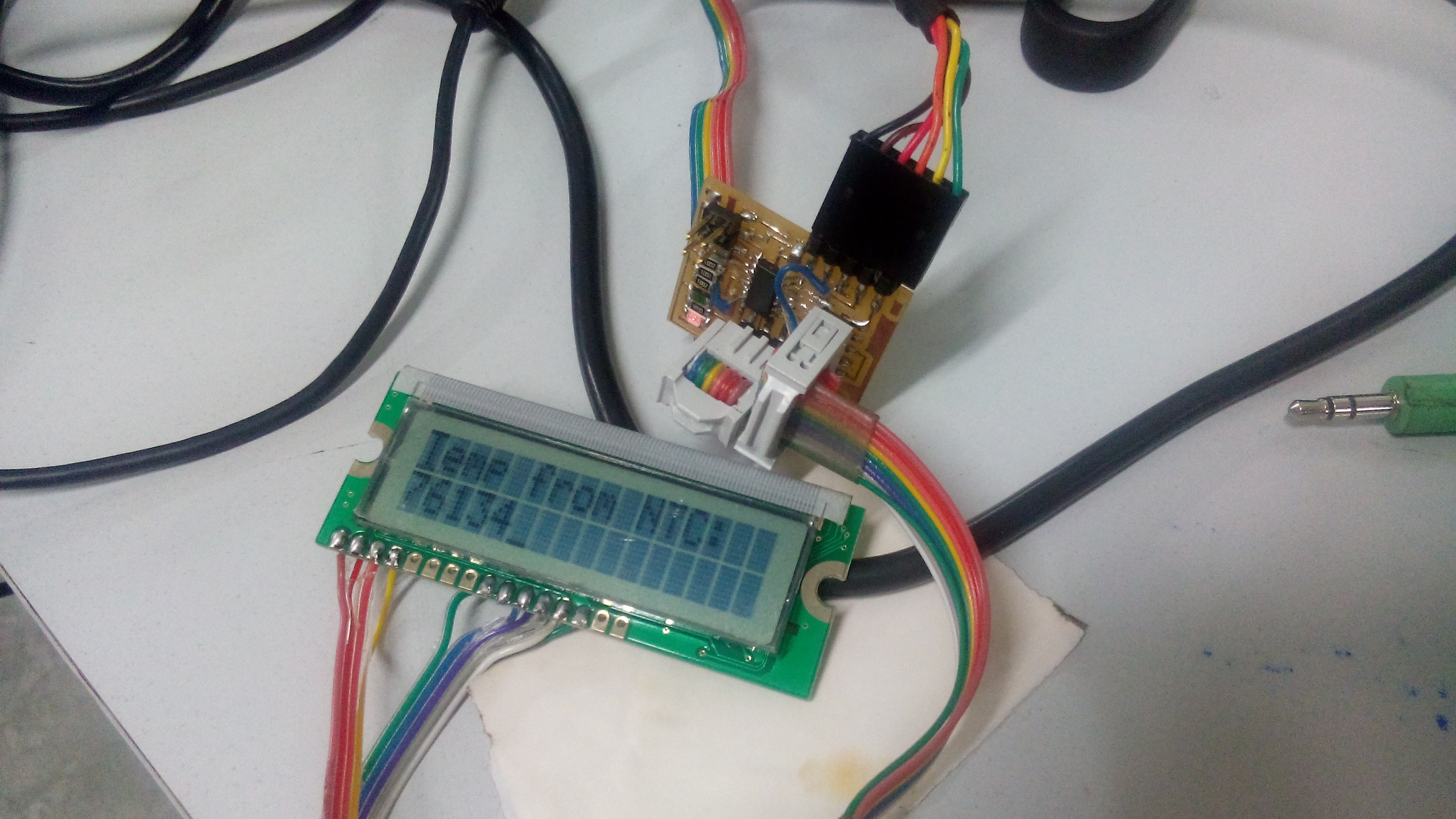

tok adc from PA6 and adc from PA7,uses these values in Nel's equation...before that i checked what each adc values measures exactly and then took the defference.but i didnt get desired output,i got temperature value but it wasn't correct.



but i did solve this problem tooooo,,,by using equation,

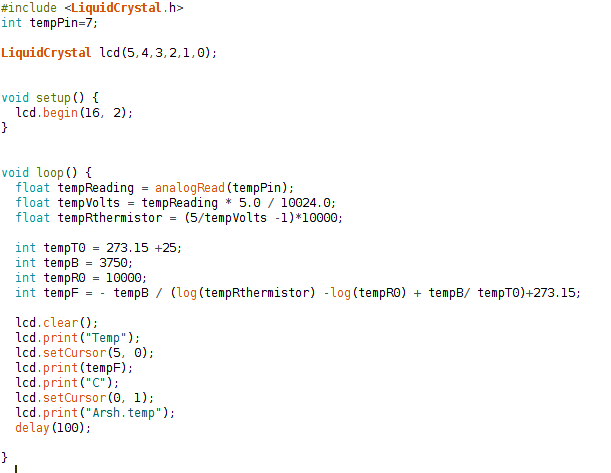

V measured = tempReading (5/1024) tempRthermistor = (5/tempVolts -1)1000;tempT0 = 273+25 tempB = 3750 temp R0 = 10000 tempF = - tempB / (log(tempRthermistor) -log(tempR0) + tempB/ tempT0)+273.15;
here R Known=10K=1000 and Vcc=5v

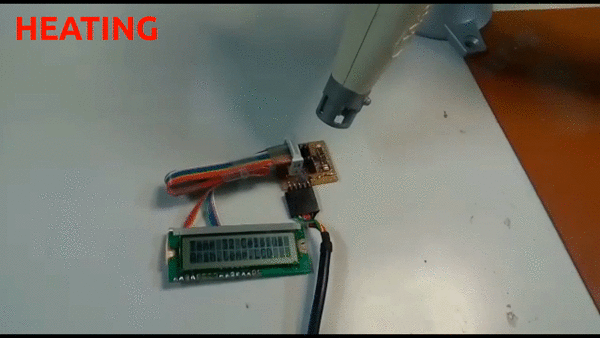

Output verification


Files
