COMPUTER - CONTROLLED CUTTING

WEEK 03

Task:

Cut something on the vinylcutter
Design, make, and document a parametric press-fit construction kit

Programs:

Rhinoceros / Coreldraw

Materials:

Corrugated cardbord
Vinyl

Machine:

Epilog laser

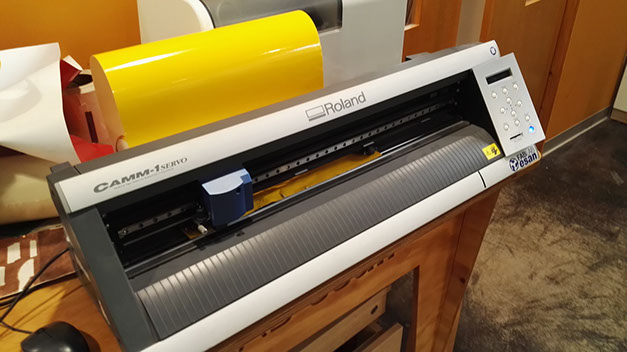

Roland GX 24

VINYL CUTTING - PYRAMID SIERPINSKI

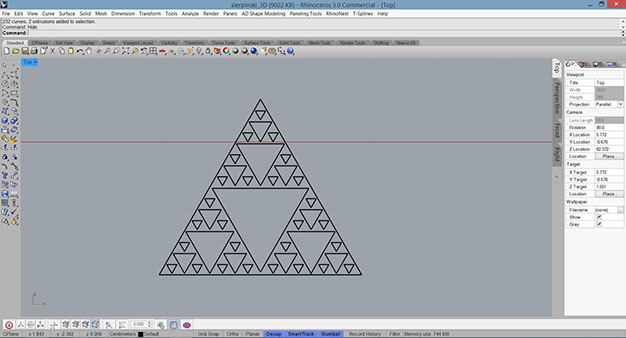

The development of this pyramid was drawn in 2D and them pass to 3D for generate the vectorial drawing.

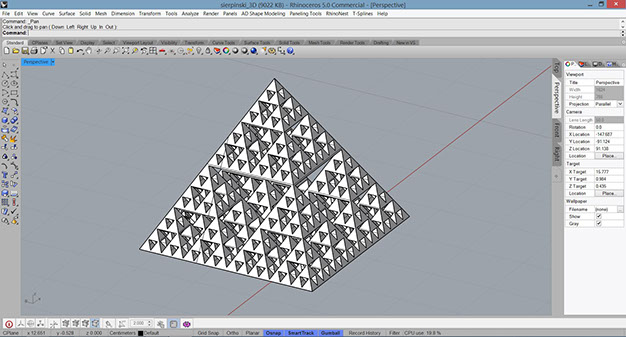

The 3D model was created to choose the correct perspective to cut the void and probe different views.

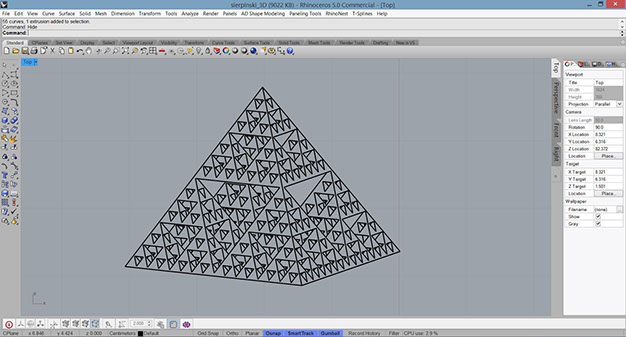

Vectorial drawing, some edges was offset for maintain a continuous surface and make easier to cut.

Export the design in svg or png

Open terminal in ubuntu

Type sudo fab

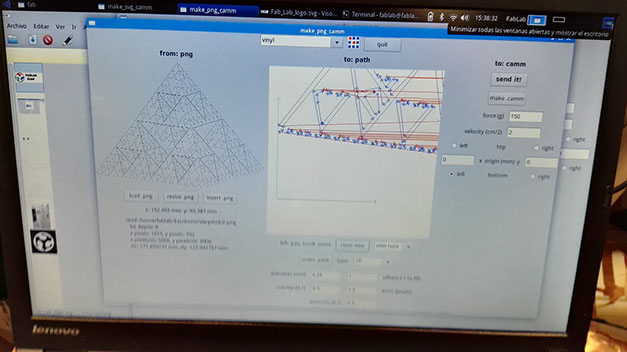

Choose image png and Roland vynil cutter

Next windows

Upaload image and set vynil
Froce 120
Speed 2

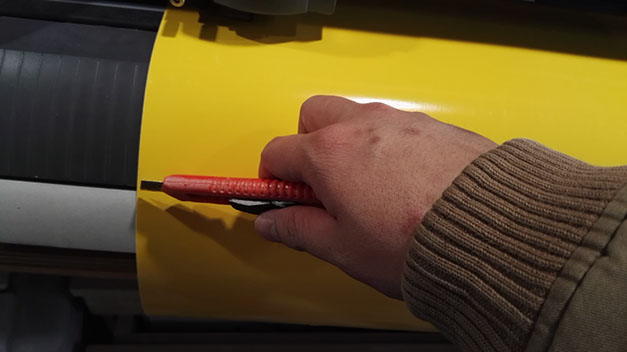

Clean the work space and material

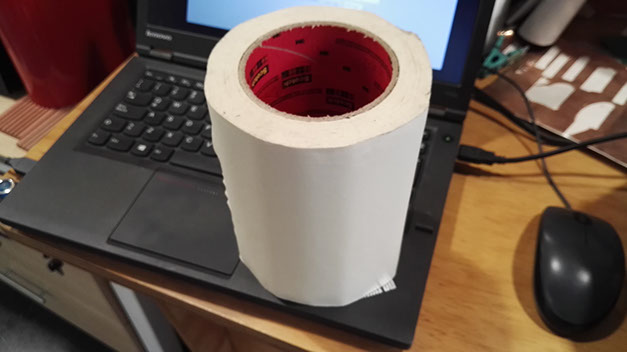

Use transfer tape for transfer the vynil to the place you want. Remove innecesary vynil

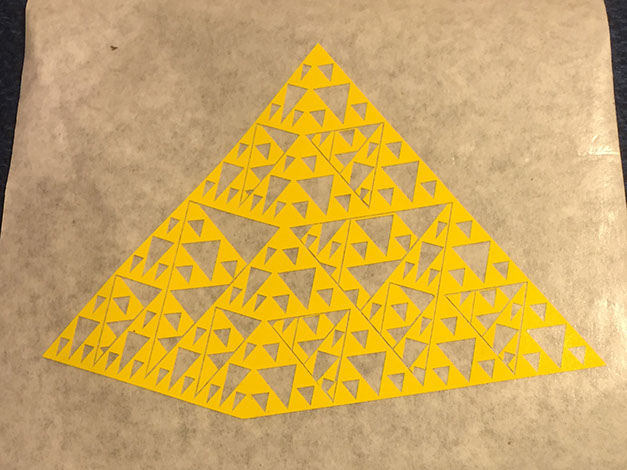

Final results

Corrugated Cardboard - HEXAGONAL PATTERS

The development of this items was created to generate three dimensional objects from flat pieces. References snowflake

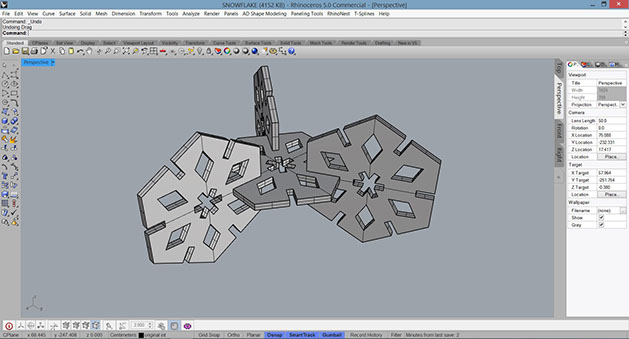

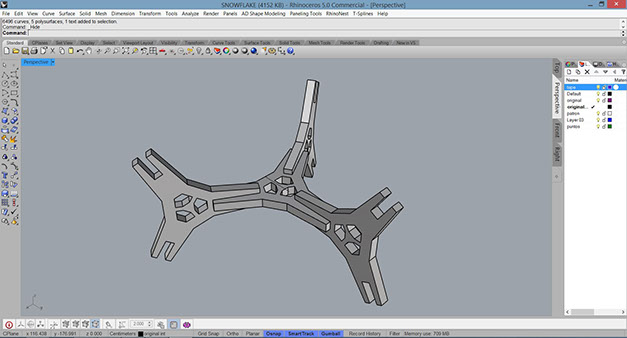

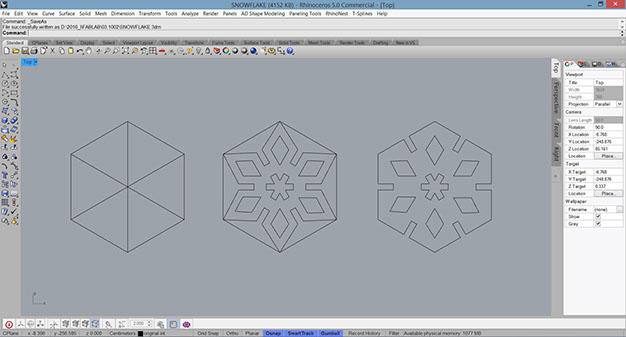

Rhinoceros commands for create the figure

Polyline
Trim
Offset
CrvBoolean

Tests to see fit together each piece with corrugated cardboard of 4mm

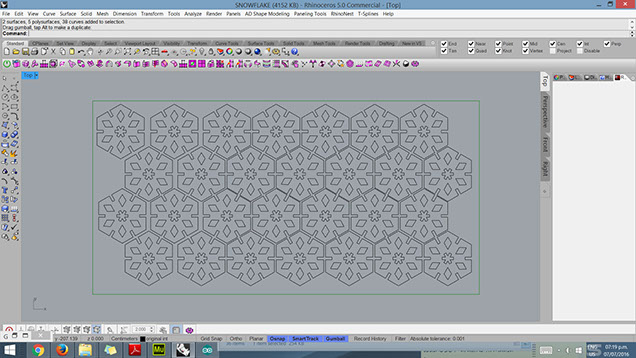

Place each part on work space of the epilog laser. 60x30cm and then export it in DWG format

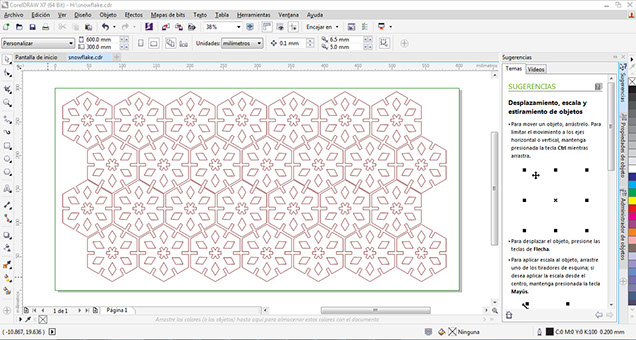

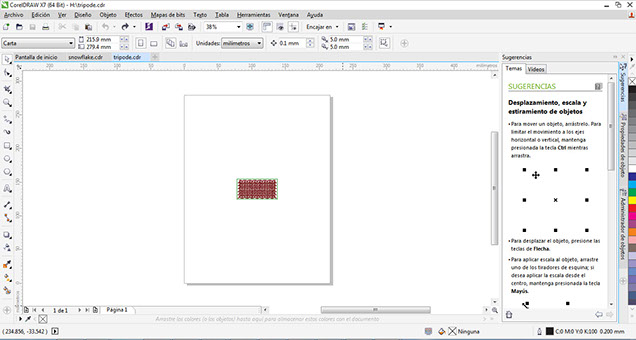

Open CorelDraw

Set work space 600mm x 300mm

Select all the objects an rescale it 10x10

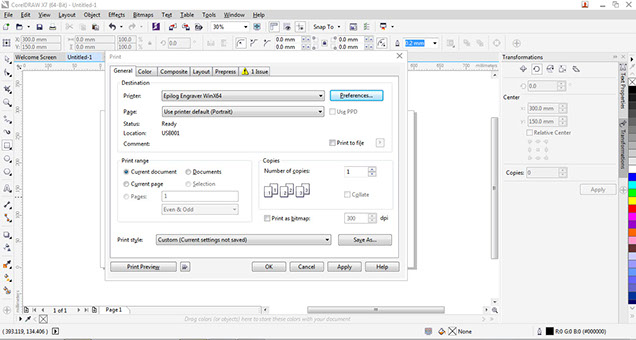

crtrl + P : Select epilog engraver and then preferences

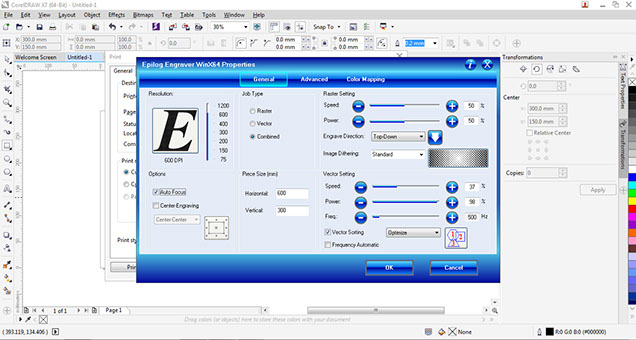

Change parameters

Corrugated Cardboard : speed 37 / power 98 / freq 500

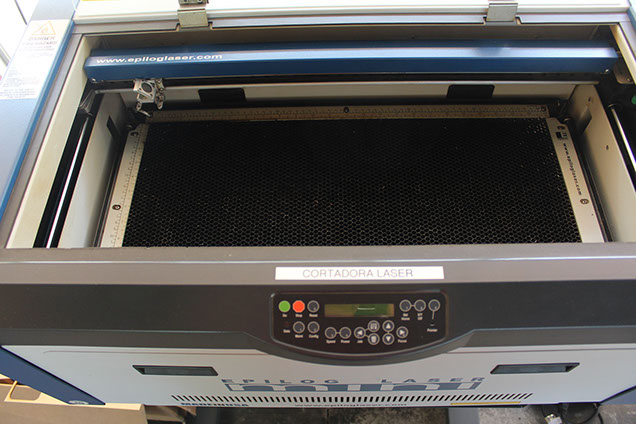

Make sure the corrugate carboard is placed correctly in the epilog laser work space

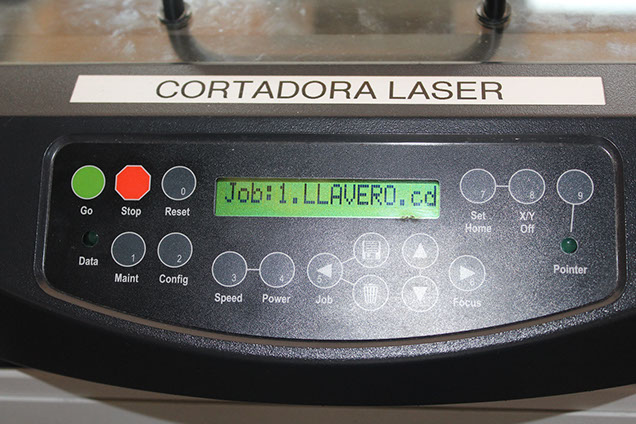

Push reset and then GO

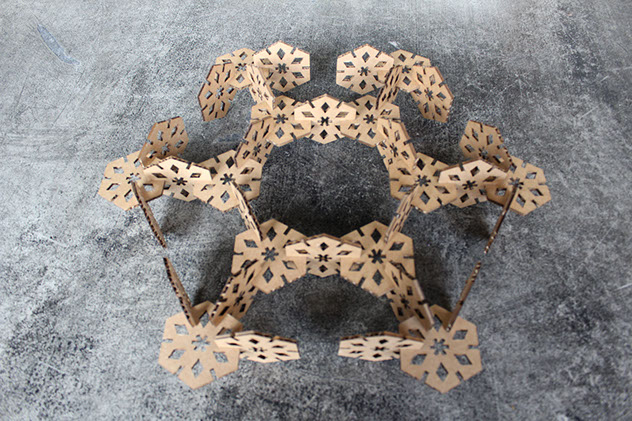

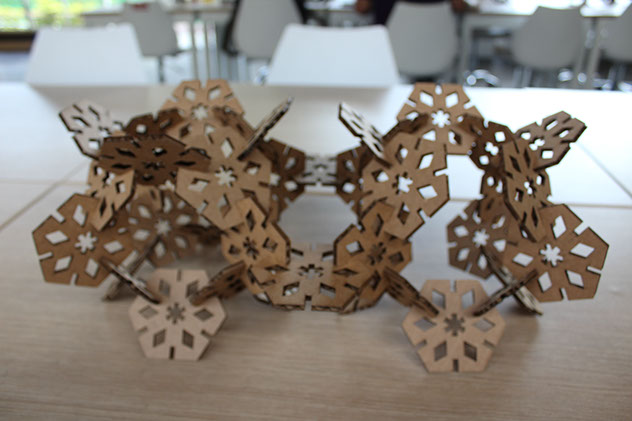

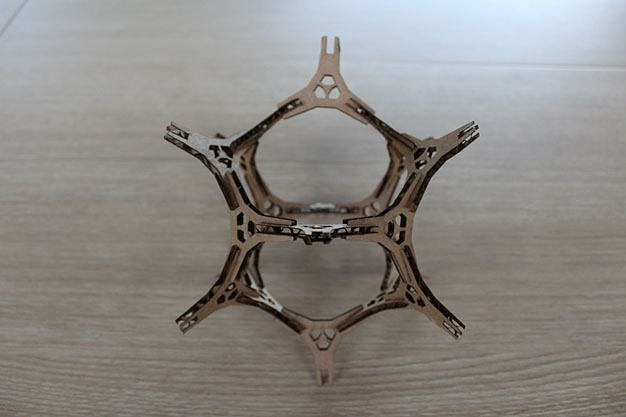

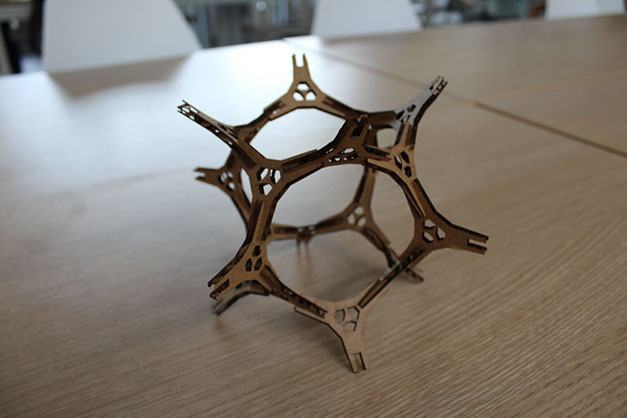

Heroshot

Corrugated Cardboard - HEXAGON RECONFIGURED PATTERS

In fact I wanted to make an dodecahedron, but I made several attempts to folding carton surfaces,

I went the worn way because finally I used each pieces incorrectly.

Well I decided to make pieces that fit, because the union of edges required more study.

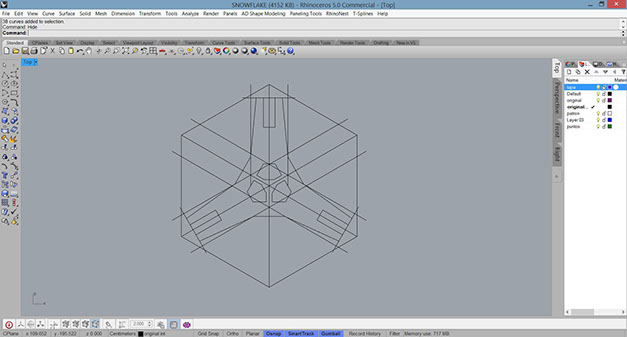

Decompose hexagon to fit pieces randomly.

Tests to see fit together each piece

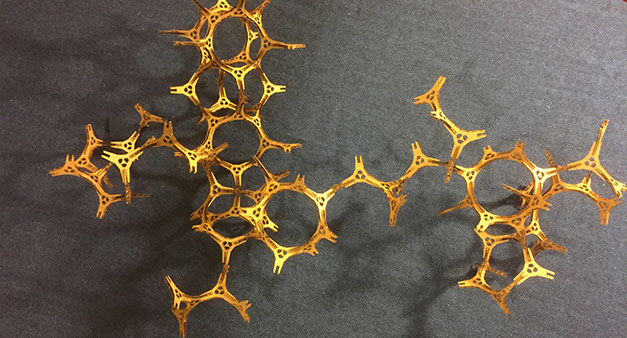

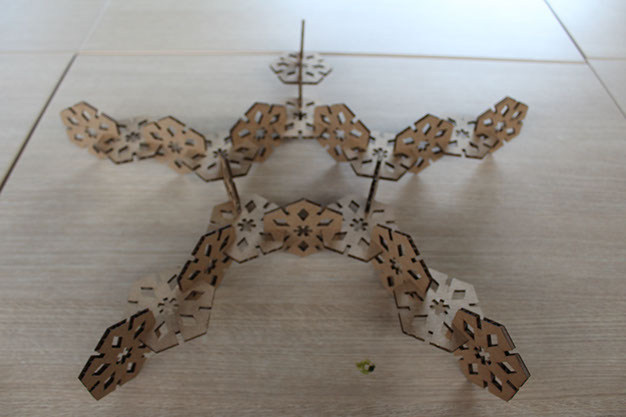

The randomly union of parts forming a dodecahedron

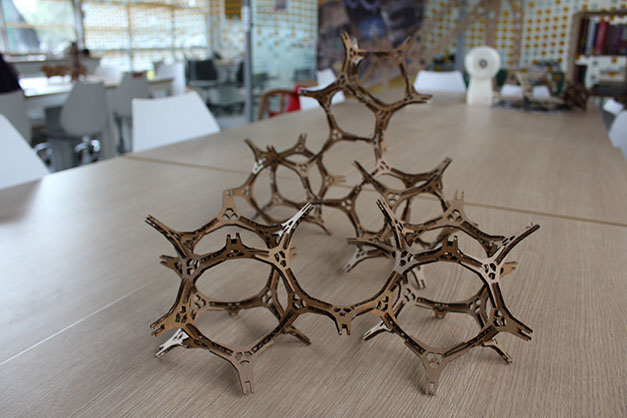

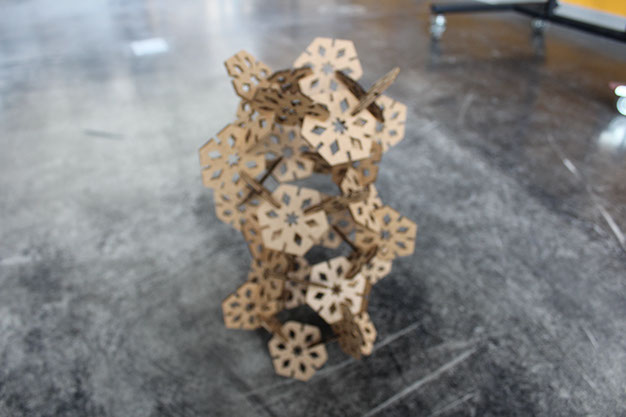

Sculpture - Formed by random sequences

Learning outcomes:

Demonstrate and describe 2D modelling processes
Identify and explain processes involved in using the machine
Develop, evaluate and construct the final prototype

Have you

Explained how you drew you files
Shown how you made your press-fit kit
Eaten fresh vegetables today
Included your design files and photos of your finished project

Vinyl cutting

Learning outcomes:

Identify and explain processes involved in using this machine
Design and create the final object

Have you

Explained how you drew your files
Shown how you made your vinyl project
Included your design files and photos of your finished project

Download files of week 03
